Installation

LIGHTING (EXT): HIGH MOUNTED STOP LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

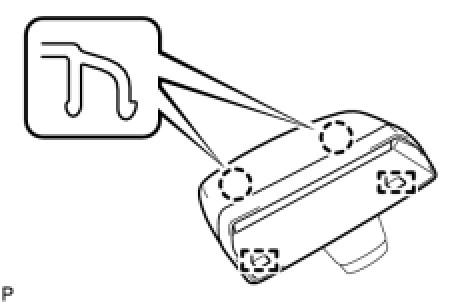

1. INSTALL CENTER STOP LIGHT SET
(a) Connect the connector.





(b) Engage the 2 guides.
(c) Engage the 2 claws and install the center stop light set.
