Pinout Values and Diagnostic Parameters

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING SYSTEM: TERMINALS OF ECU

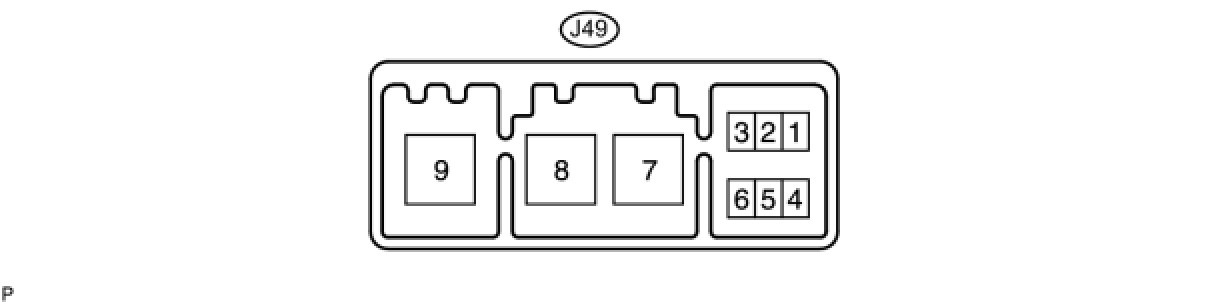

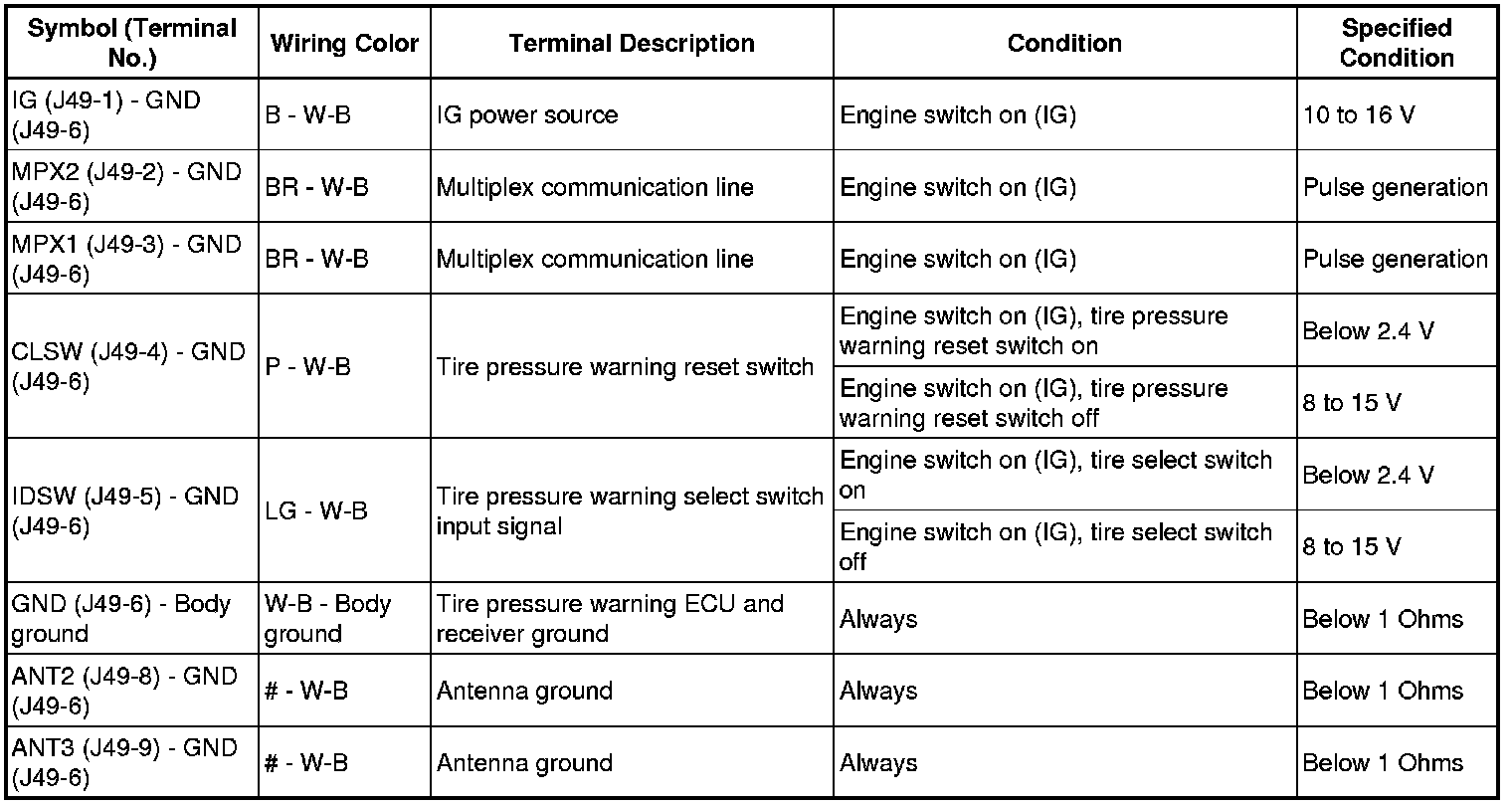

TERMINALS OF ECU
HINT: Inspect the connectors from the back side while the connectors are connected.









HINT: #: There is no wire color information.
