Fail-Safe Chart
METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: FAIL-SAFE CHART
FAIL-SAFE CHART

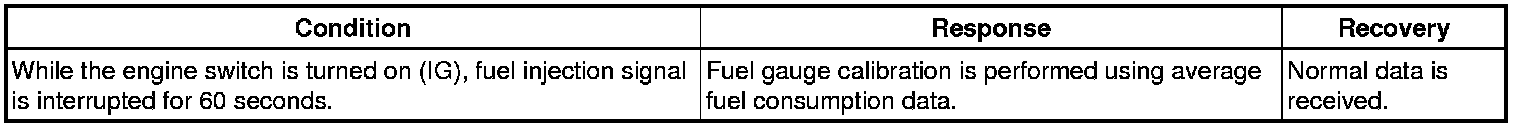

Fuel Signal (Fuel Injection Signal)

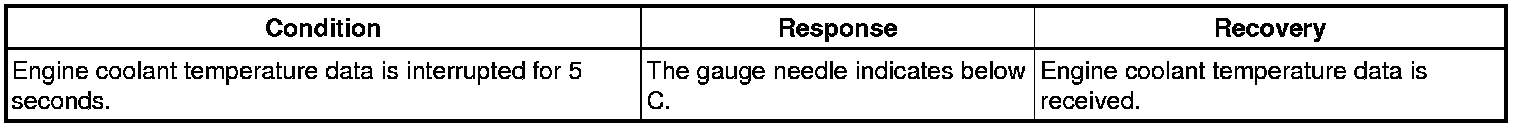

Engine Coolant Temperature Receiver Gauge

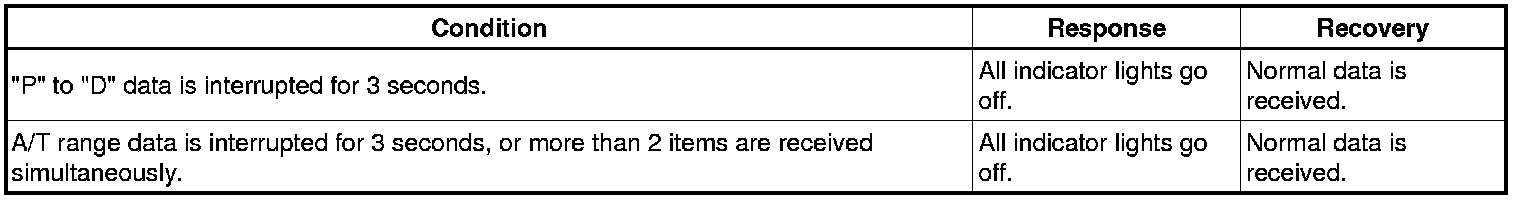

Shift Indicator
ABS, EBD, BA, TRAC, and VSC
Door

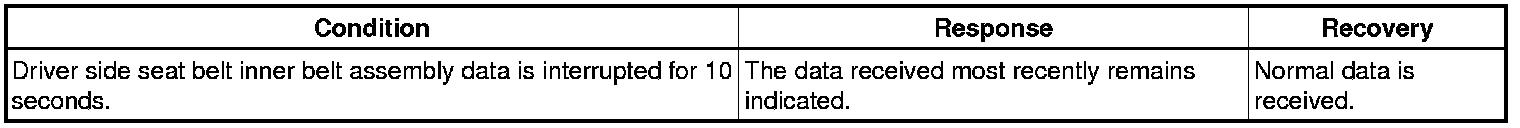

Driver Side Seat Belt

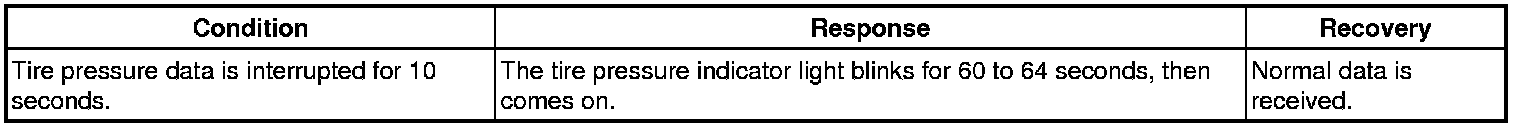

Tire Pressure
Power Steering
HEAD*1 or TAIL*2
Beam

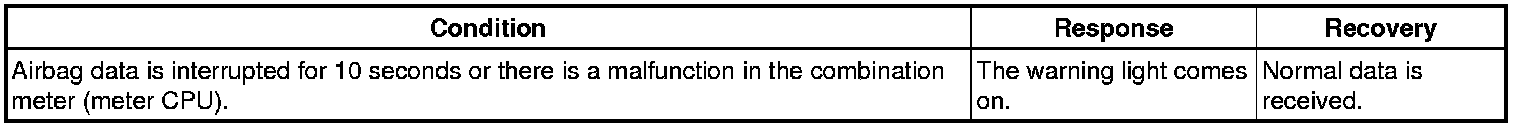

Airbag

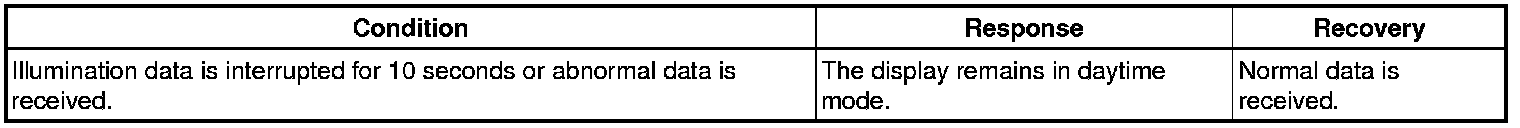

Meter Illumination

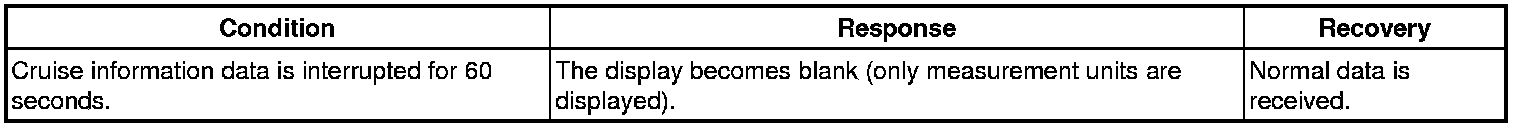

Multi-information Display
- *1: for U.S.A.
- *2: for Canada
