Clock: Description and Operation

METER / GAUGE / DISPLAY: CLOCK SYSTEM:

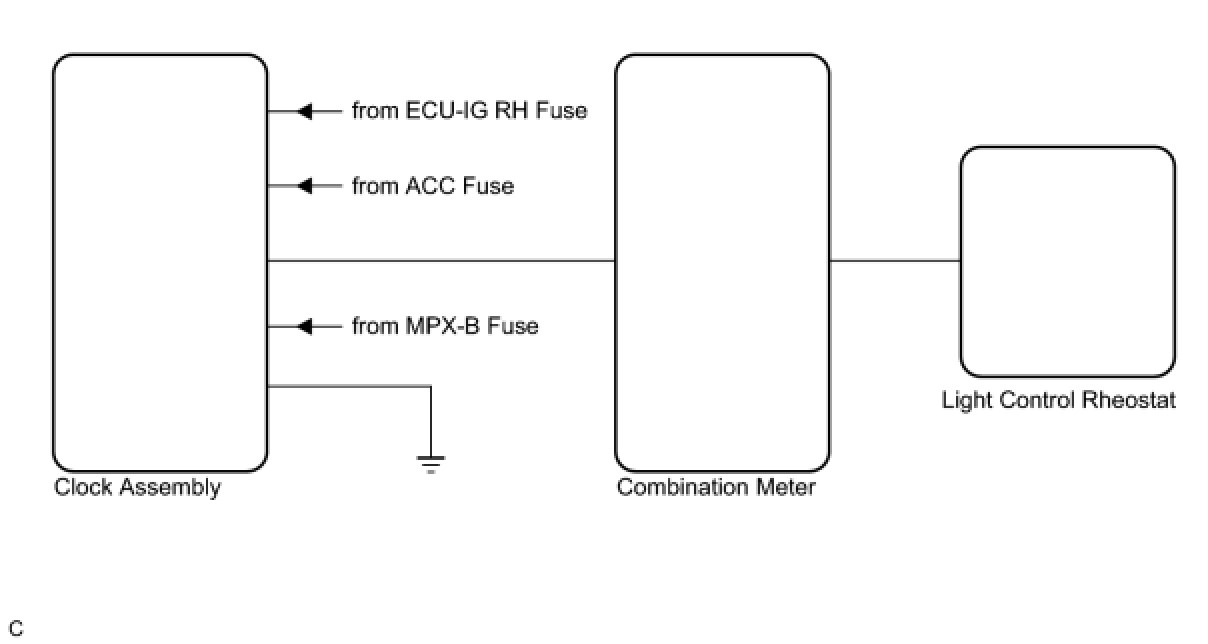

SYSTEM DIAGRAM

1. DIRECT LINE SIGNAL





2. INPUT AND OUTPUT SIGNALS OF THE CLOCK ASSEMBLY





SYSTEM DESCRIPTION

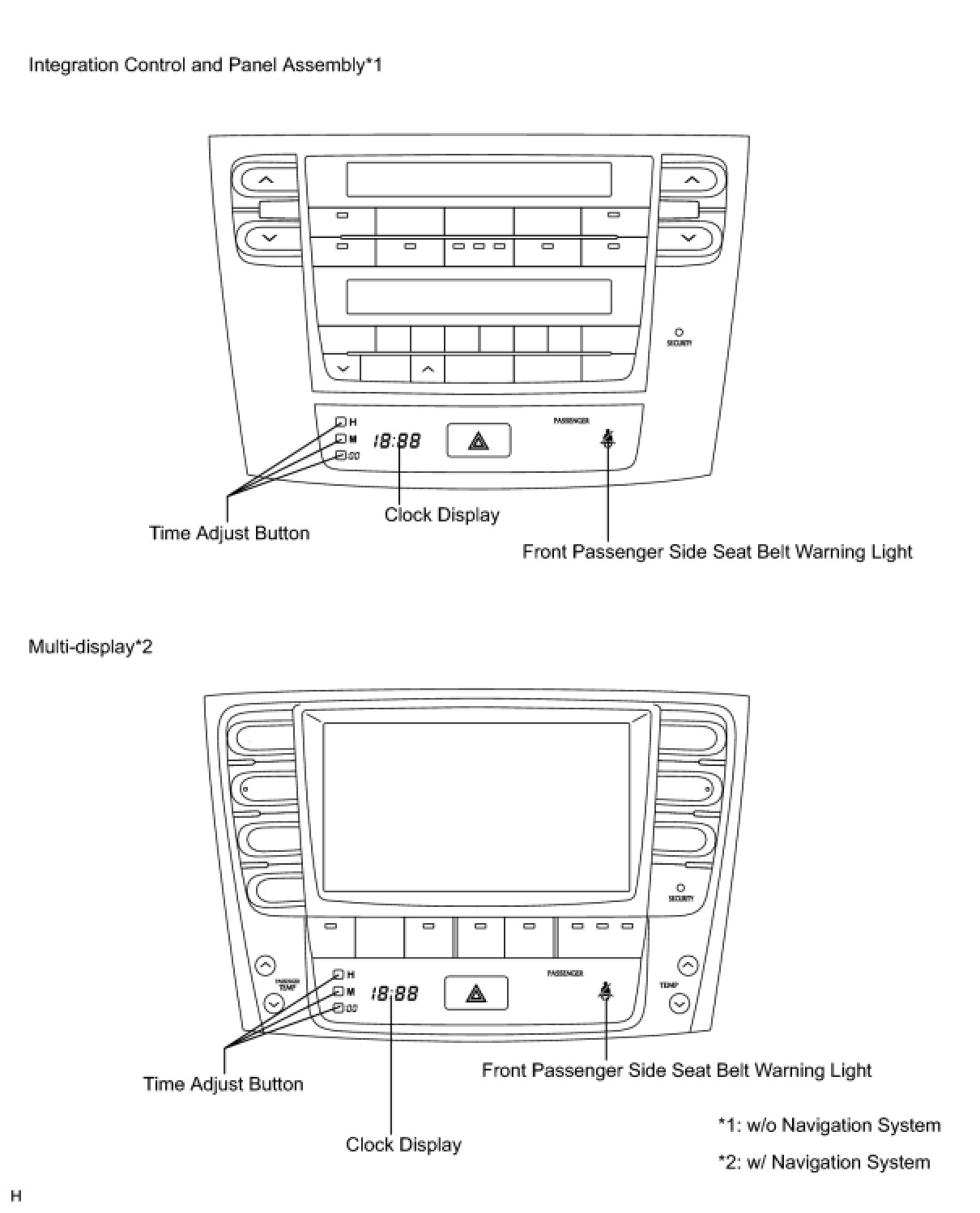

1. INTEGRATION CONTROL AND PANEL ASSEMBLY*1 OR MULTI-DISPLAY*2 (CLOCK)




HINT:

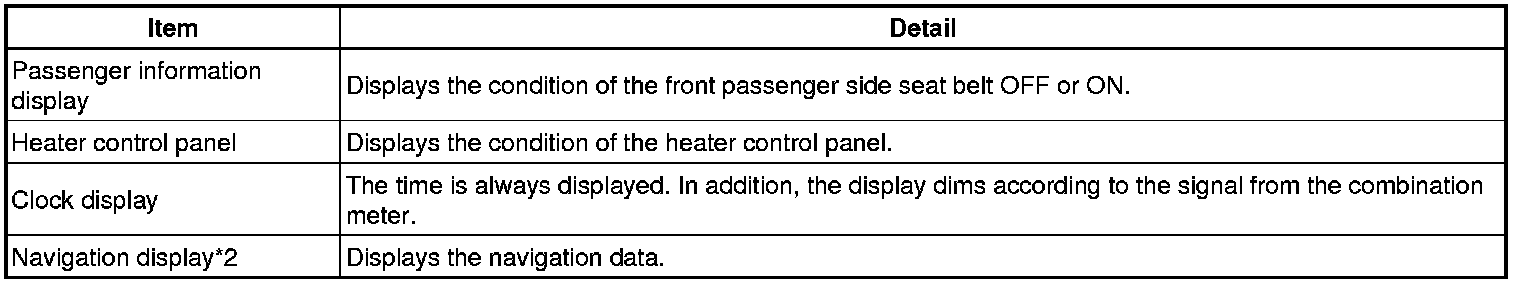

- Integration control and panel assembly*1 consists of three parts (passenger information display, clock display and heater control panel). These areas display the contents given in the table below.
- Multi-display*2 consists of four parts (navigation display, passenger information display, clock display, and heater control panel). These areas display the contents given in the table below.





- *1: w/o Navigation System
- *2: w/ Navigation System
