Removal

POWER OUTLETS (INT): CIGARETTE LIGHTER: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
2. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH Removal
3. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH Removal
4. REMOVE CONSOLE PANEL SUB-ASSEMBLY Removal
5. REMOVE FRONT ASH RECEPTACLE ASSEMBLY Removal
6. REMOVE CIGARETTE LIGHTER ASSEMBLY
(a) Remove the cigarette lighter knob and element assembly.





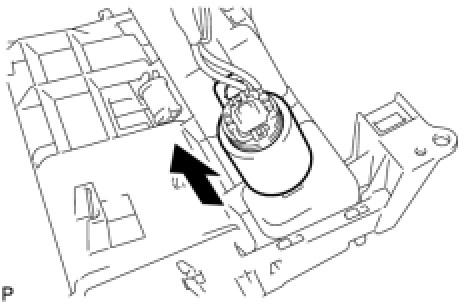

(b) Disengage the clip.

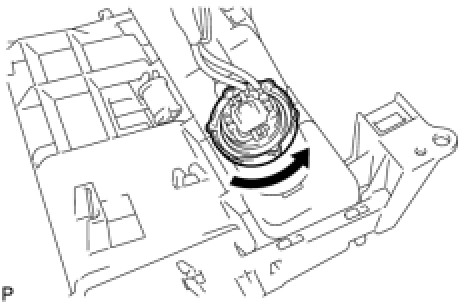

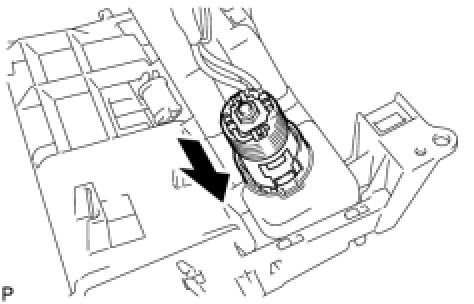

(c) Turn the ring nut in the direction indicated by the arrow to remove it.





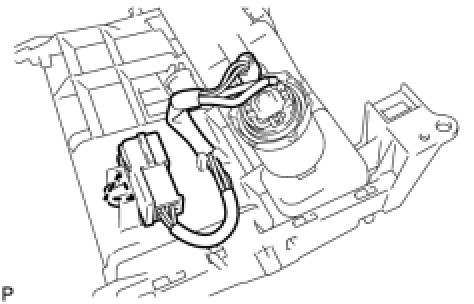

(d) Remove the cigarette lighter socket.





(e) Remove the cigarette lighter retainer.
