POWER OUTLETS (INT): CIGARETTE LIGHTER: INSTALLATION

INSTALLATION

1. INSTALL CIGARETTE LIGHTER ASSEMBLY

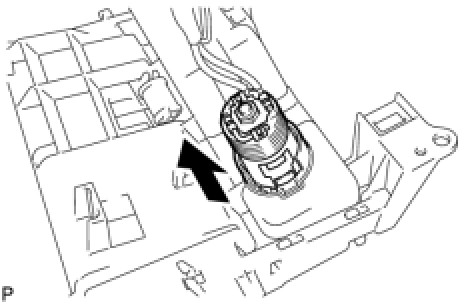

(a) Install the cigarette lighter retainer.

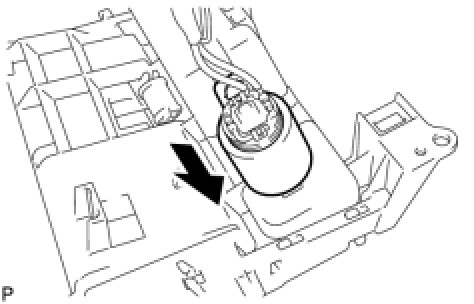

(b) Install the cigarette lighter socket.

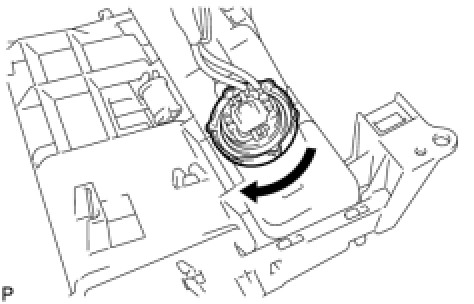

(c) Turn the ring nut in the direction indicated by the arrow to install it.





(d) Engage the clip.
(e) Install the cigarette lighter knob and element assembly.
2. INSTALL FRONT ASH RECEPTACLE ASSEMBLY Installation
3. INSTALL CONSOLE PANEL SUB-ASSEMBLY Installation
4. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH Installation
5. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH Installation
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
