Installation

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: SKID CONTROL BUZZER: INSTALLATION

INSTALLATION

1. INSTALL SKID CONTROL BUZZER

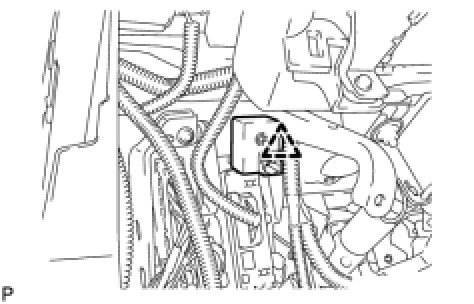

(a) Attach the clip and install the skid control buzzer.

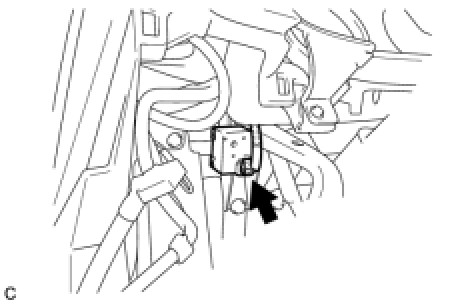

(b) Connect the skid control buzzer connector.
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
3. INSTALL SIDE INSTRUMENT PANEL LH Installation
4. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
5. INSTALL FRONT DOOR SCUFF PLATE LH Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
