HEATING / AIR CONDITIONING: FRONT BLOWER MOTOR: INSTALLATION

INSTALLATION

1. INSTALL COOLING UNIT WITH FAN MOTOR SUB-ASSEMBLY

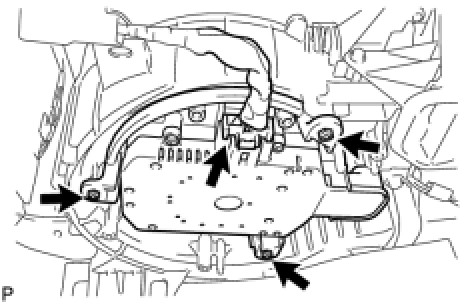

(a) Install the cooling unit with fan motor sub-assembly with the 3 screws.
(b) Connect the connector.
2. INSTALL SKID CONTROL ECU Installation
3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
4. INSTALL SIDE INSTRUMENT PANEL RH Installation
5. INSTALL FRONT DOOR OPENING TRIM COVER RH
HINT: Use the same procedure for the RH side and LH side Installation.

6. INSTALL FRONT DOOR SCUFF PLATE RH
HINT: Use the same procedure for the RH side and LH side Installation.
