2UR-GSE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: REMOVAL

REMOVAL

1. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
Removal
2. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY Removal
3. REMOVE ENGINE REAR OIL SEAL

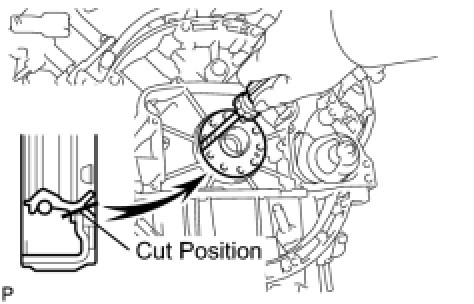

(a) Using a knife, cut through the oil seal lip.





(b) Using a screwdriver with its tip taped, pry out the oil seal.
NOTE:
After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
