2UR-GSE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL ENGINE REAR OIL SEAL

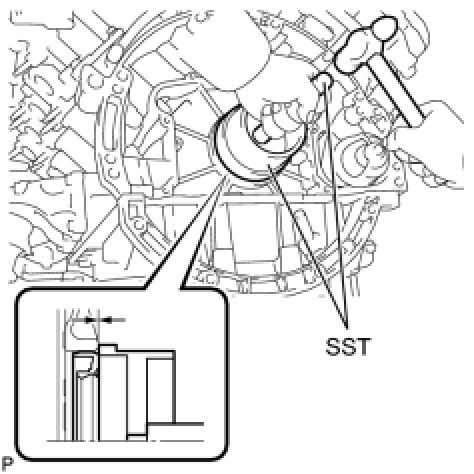

(a) Using SST, tap in a new engine rear oil seal until its surface is flush with the oil seal retainer edge.
SST: 09223-15030
SST: 09950-70010
09951-07150
- Keep the lip free from foreign matter.
- Do not tap on the oil seal at an angle.
- Do not install the oil seal excessively.

2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY Installation
3. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
