Scavenging Pump








2UR-GSE LUBRICATION: SCAVENGING PUMP: INSPECTION

INSPECTION

1. INSPECT SCAVENGING PUMP ASSEMBLY

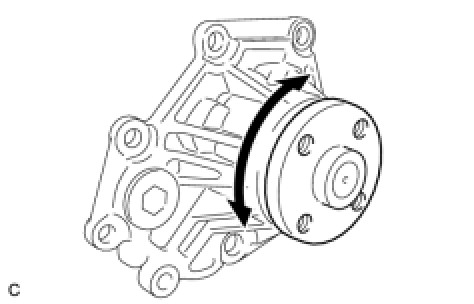

(a) Turn the pulley and check that the scavenging pump bearing moves smoothly and does not make any noise.
If necessary, replace the scavenging pump assembly.
