Disassembly

2UR-GSE LUBRICATION: OIL PUMP: DISASSEMBLY

DISASSEMBLY

1. REMOVE OIL PUMP COVER





(a) Remove the 13 bolts and oil pump cover from the timing chain cover sub-assembly.

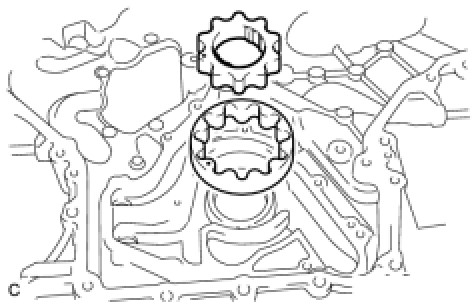

2. REMOVE OIL PUMP ROTOR SET





(a) Remove the oil pump rotor set from the timing chain cover sub-assembly.
3. REMOVE OIL PUMP RELIEF VALVE





(a) Remove the oil pump relief valve plug, oil pump relief valve spring and oil pump relief valve.
