2UR-GSE LUBRICATION: ENGINE OIL COOLER: REMOVAL

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal
2. REMOVE ENGINE UNDER COVER
3. DRAIN ENGINE OIL Replacement
4. DRAIN ENGINE COOLANT Service and Repair
5. REMOVE ENGINE OIL COOLER

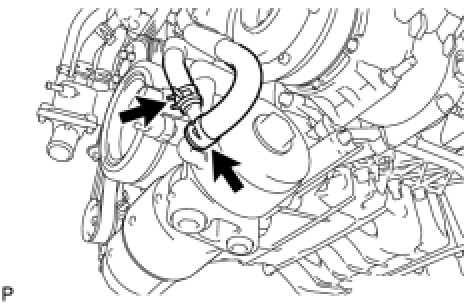

(a) Disconnect the 2 water by-pass hoses.

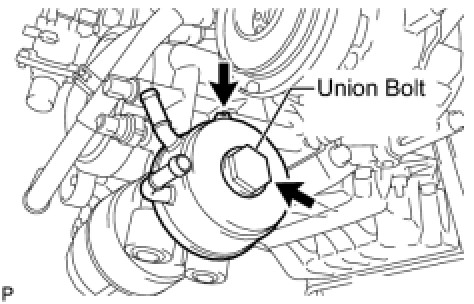

(b) Remove the bolt, gasket, union bolt, oil cooler, and O-ring.
