2UR-GSE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT

REPLACEMENT

1. REPLACE STRAIGHT PIN
NOTE:
It is not necessary to remove the straight pins unless they are being replaced.

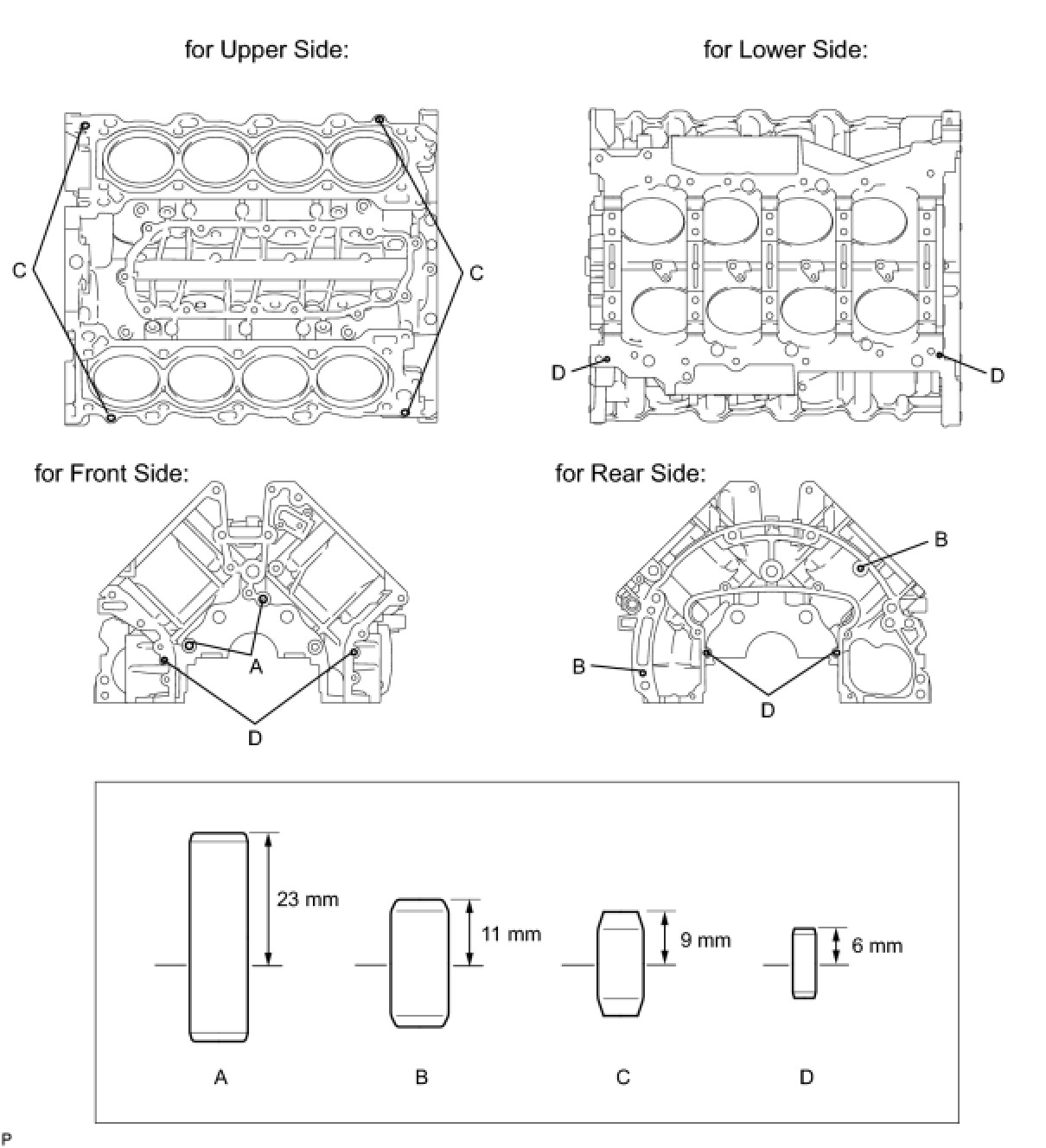

(a) Remove the straight pins.
(b) Using a plastic-faced hammer, tap in new straight pins to the cylinder block.

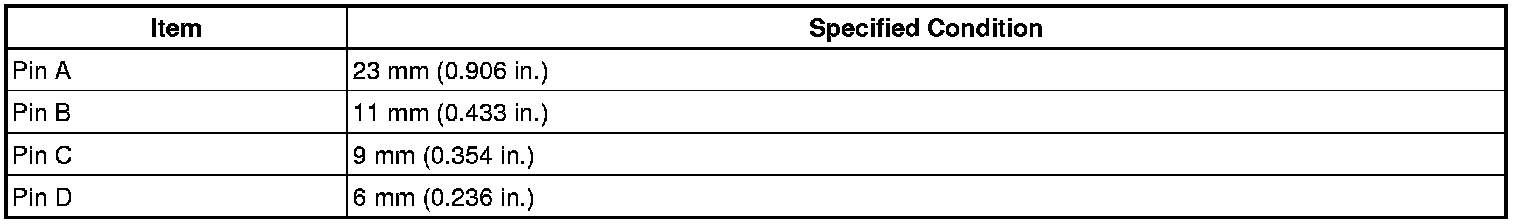

Standard Protrusion:






2. REPLACE STUD BOLT
NOTE:
If a stud bolt is deformed or the threads are damaged, replace it.

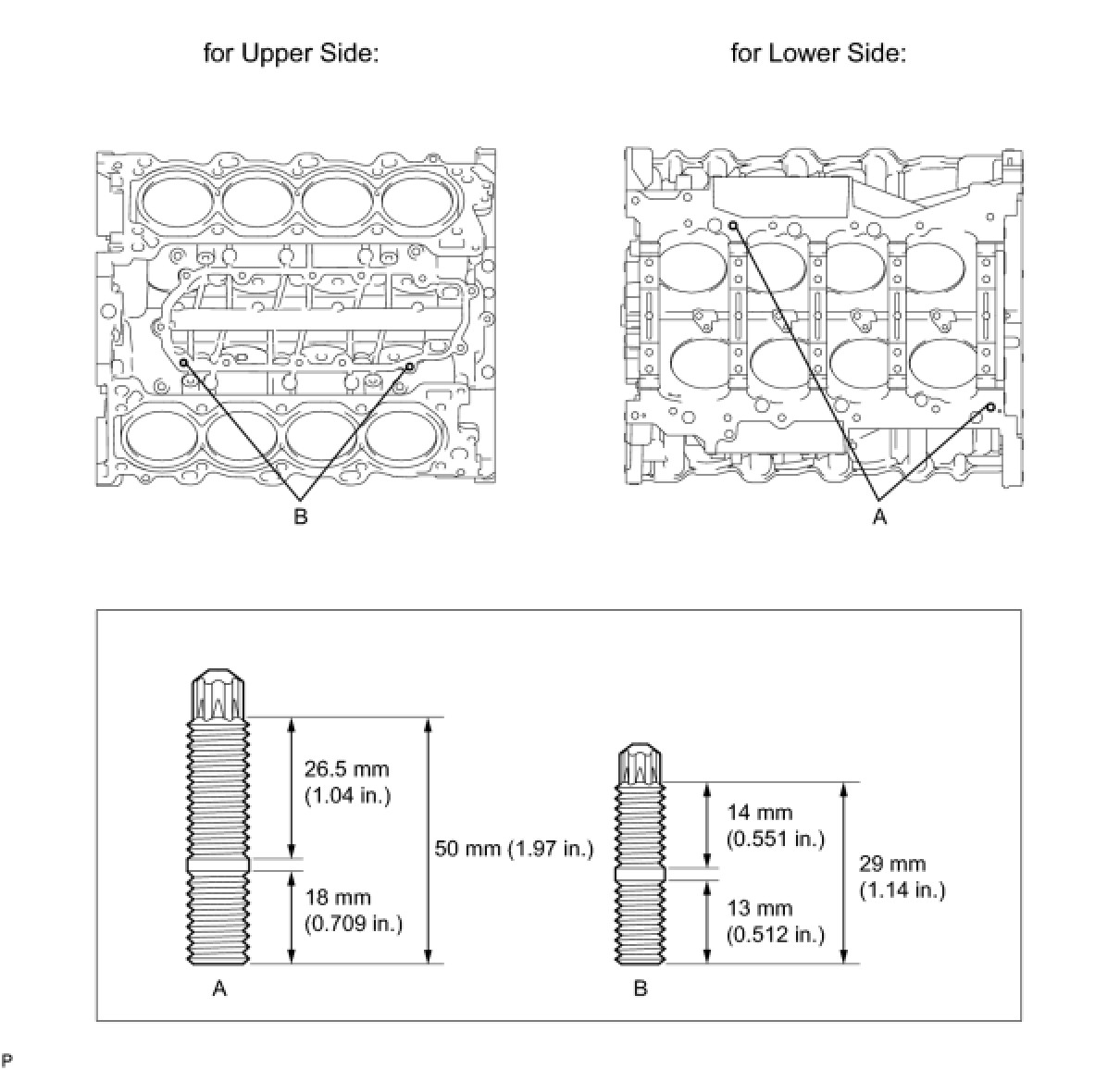

(a) Remove the stud bolts.
(b) Using E8 and E10 "TORX" socket wrenches, install the stud bolts.





Bolt A - Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
Bolt B - Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
