Radiator Cooling Fan: Description and Operation

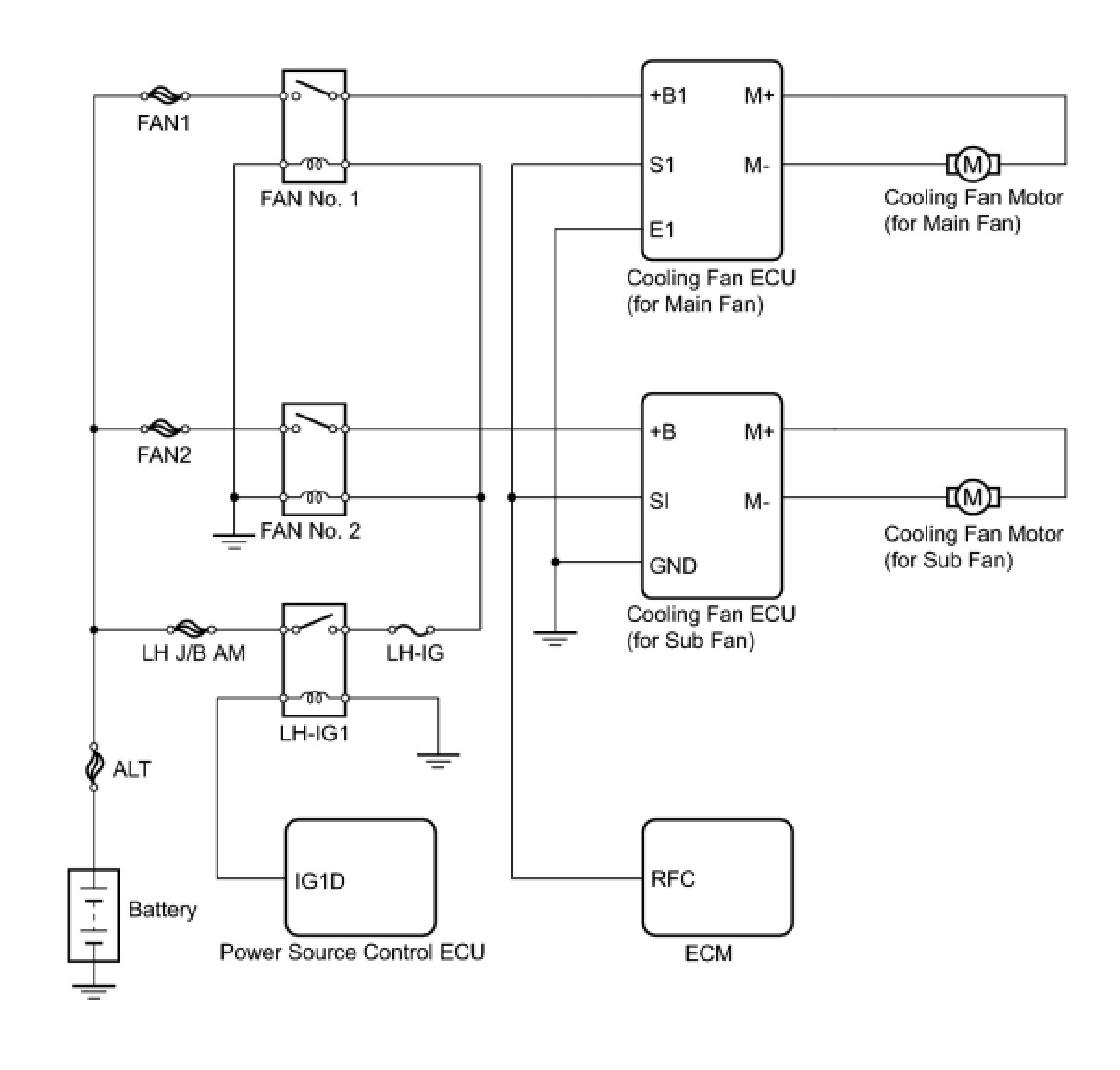

2UR-GSE COOLING: COOLING FAN SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
