Home >> Lexus >> 2009 >> IS F V8-5.0L (2UR-GSE) >> Repair and Diagnosis >> Diagrams >> Grounds >> Ground Points In Engine Compartment

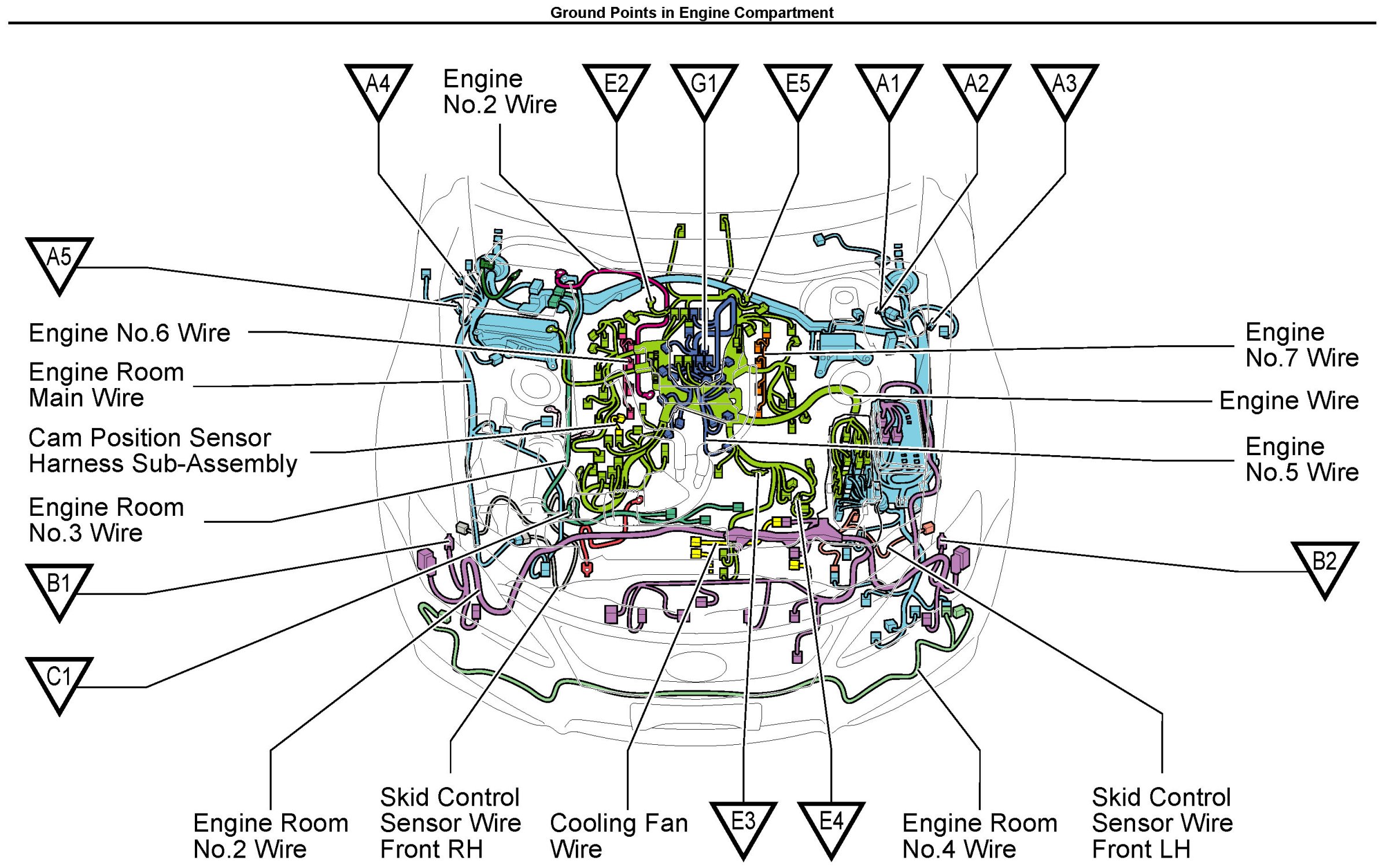

Ground Points In Engine Compartment

A1-G1:
