Sunroof / Moonroof

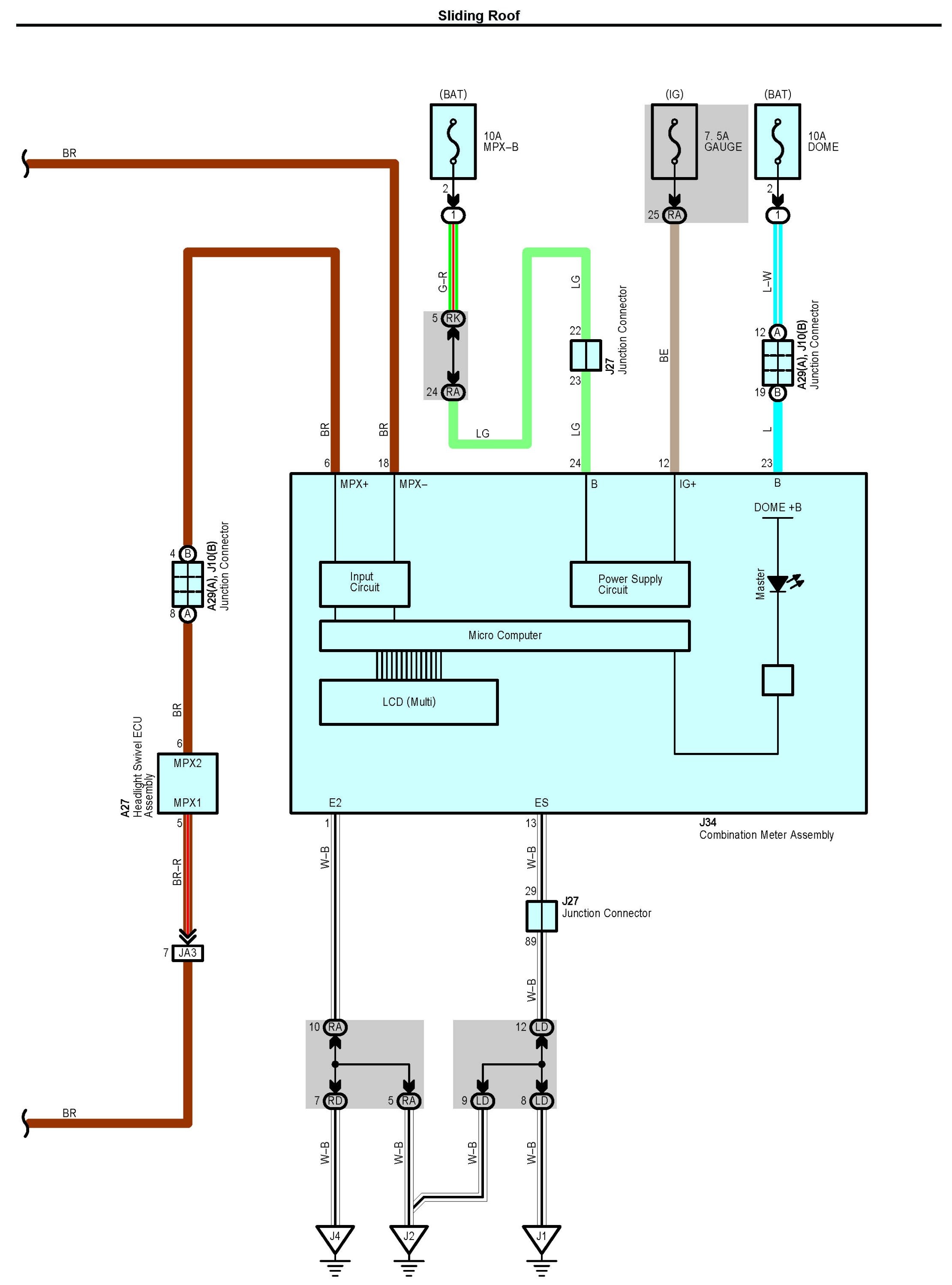

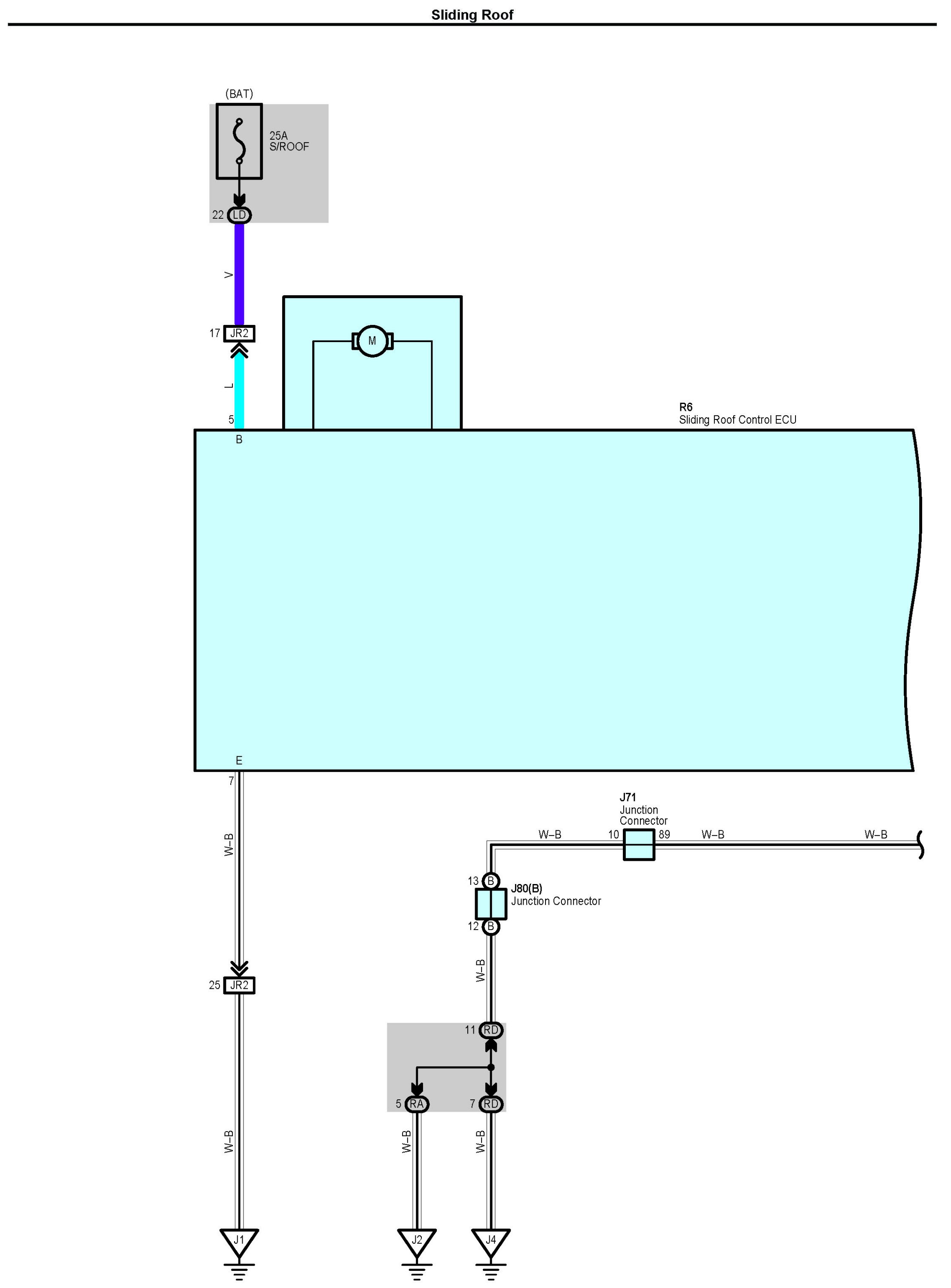

Sliding Roof Part 1:

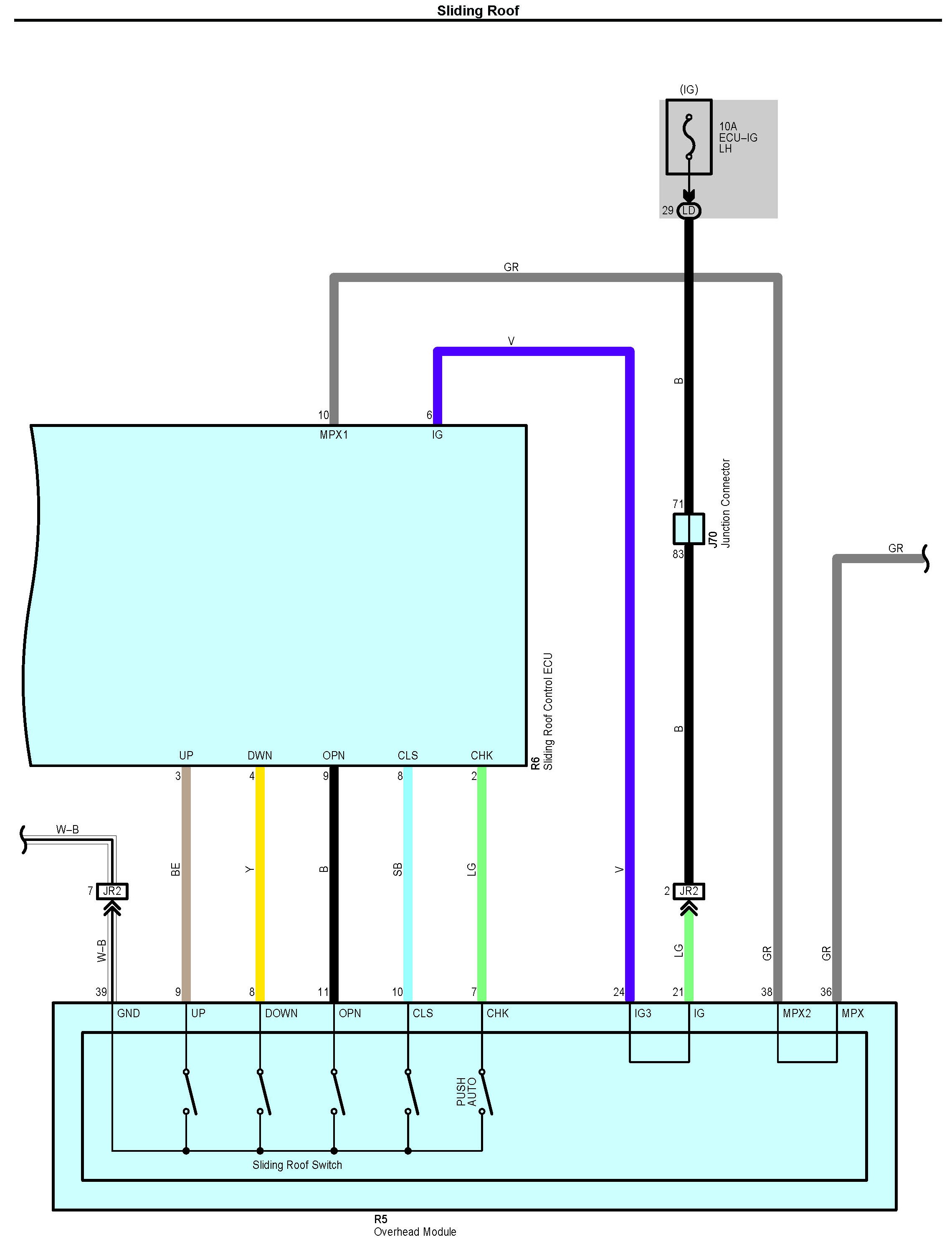

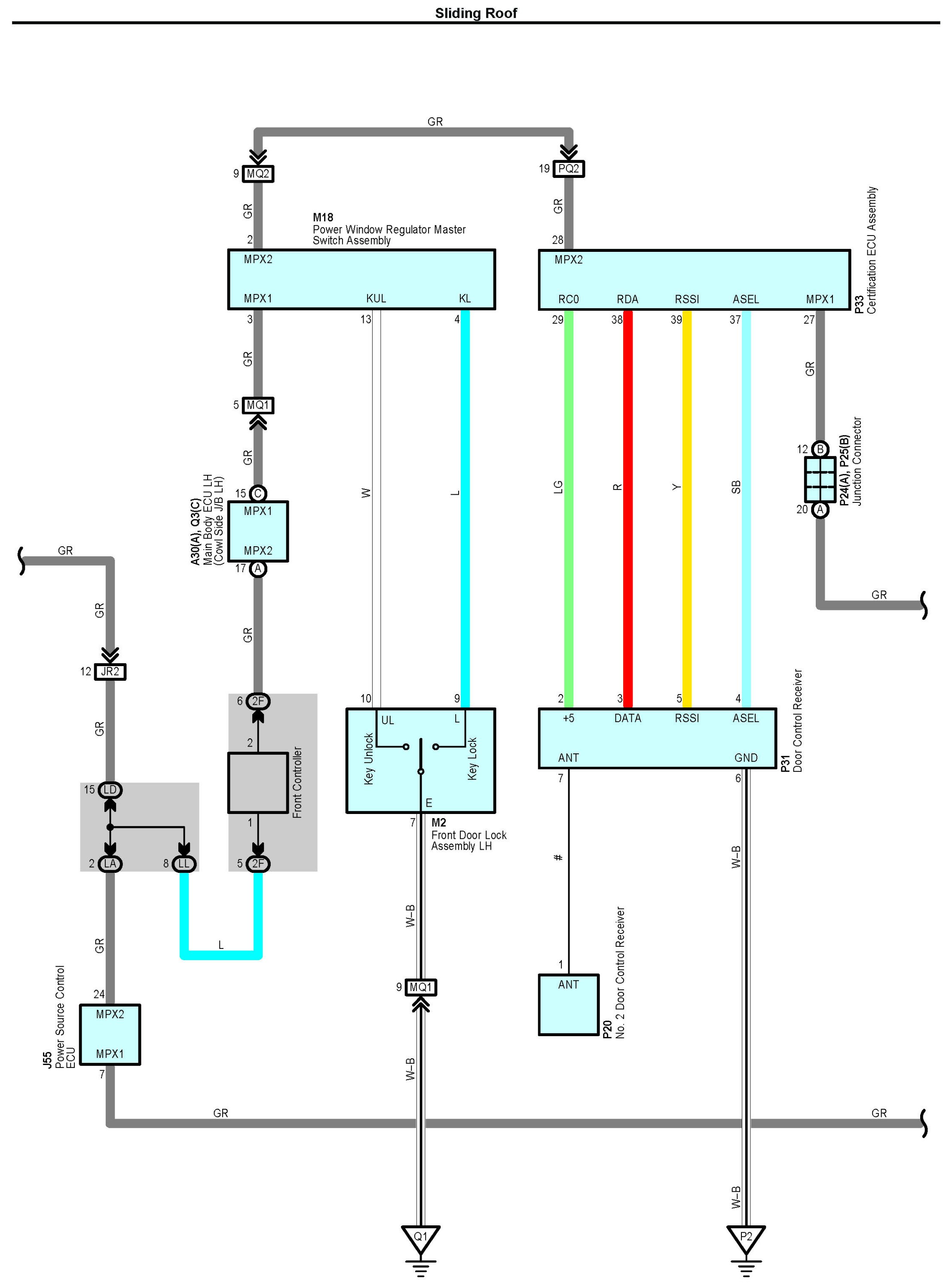

Sliding Roof Part 2:

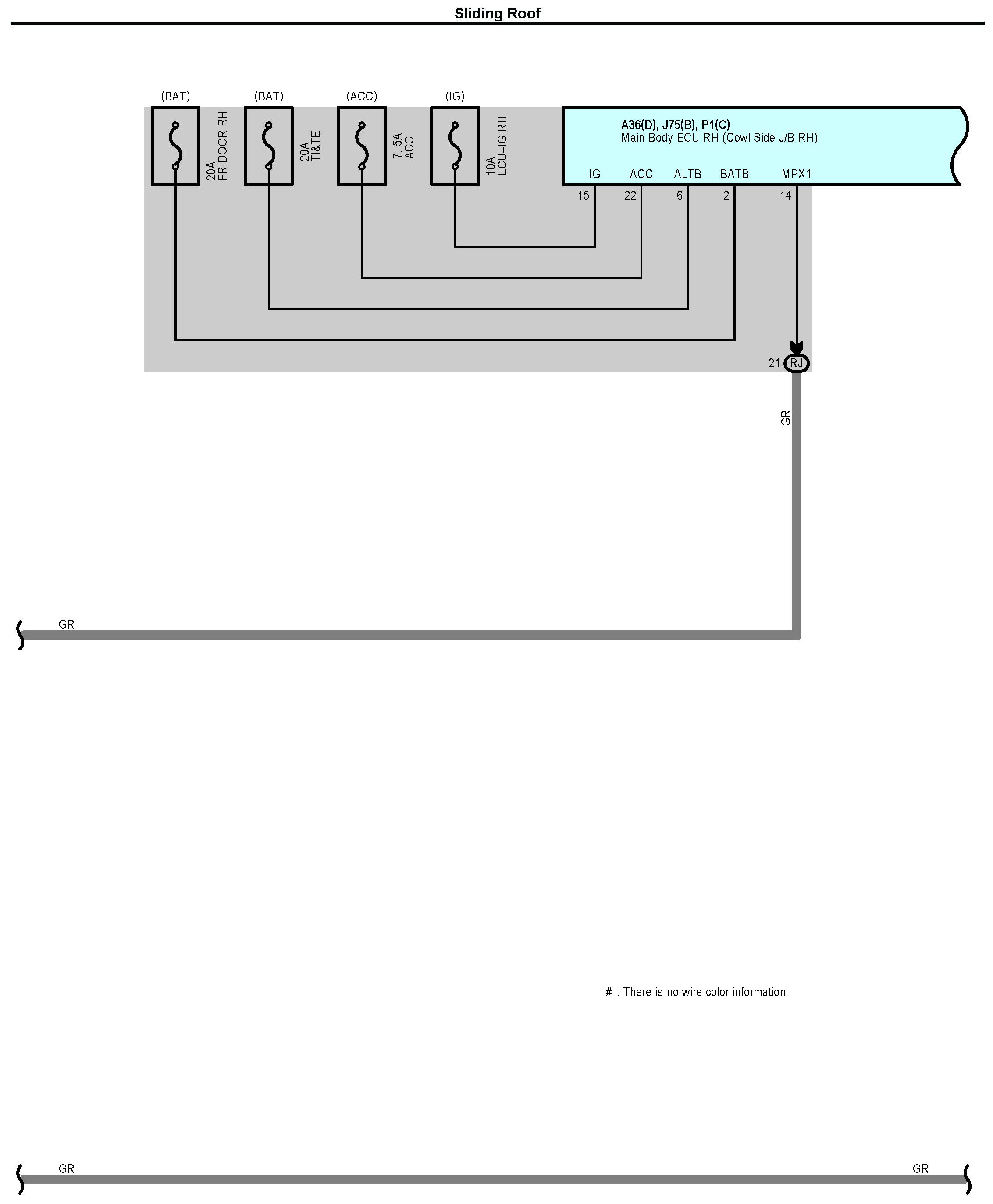

Sliding Roof Part 3:

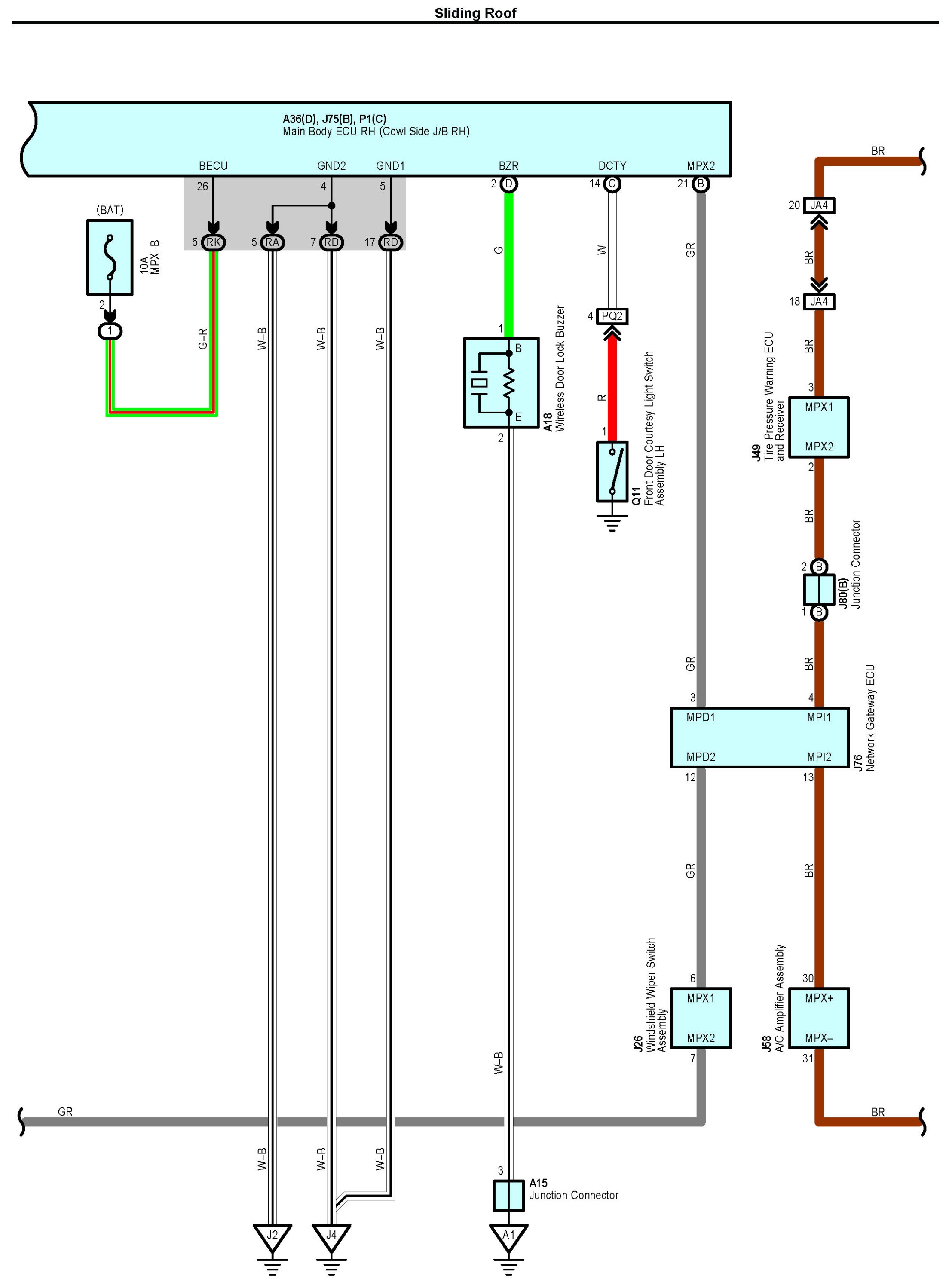

Sliding Roof Part 4:

Sliding Roof Part 5:

Sliding Roof Part 6:

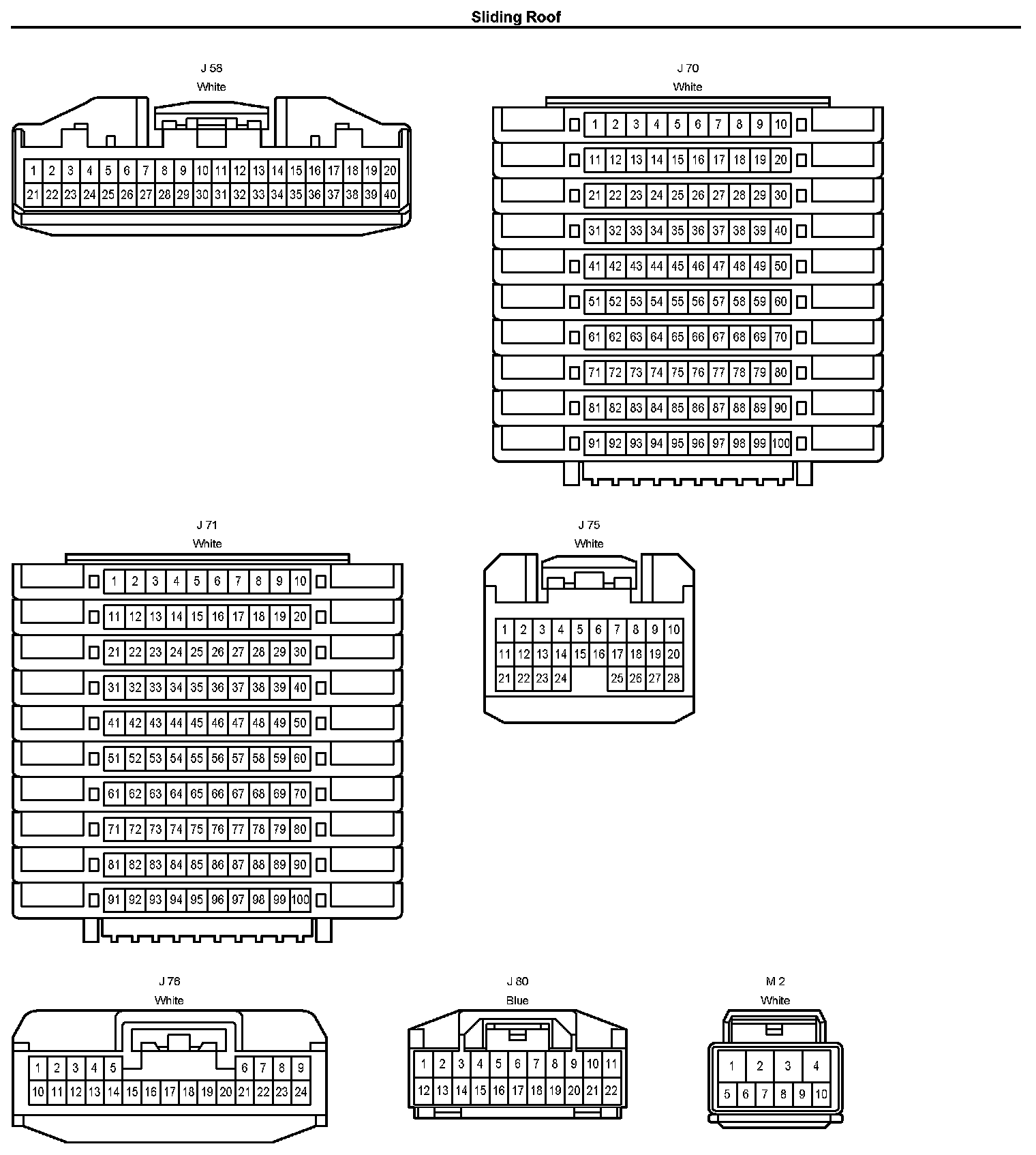

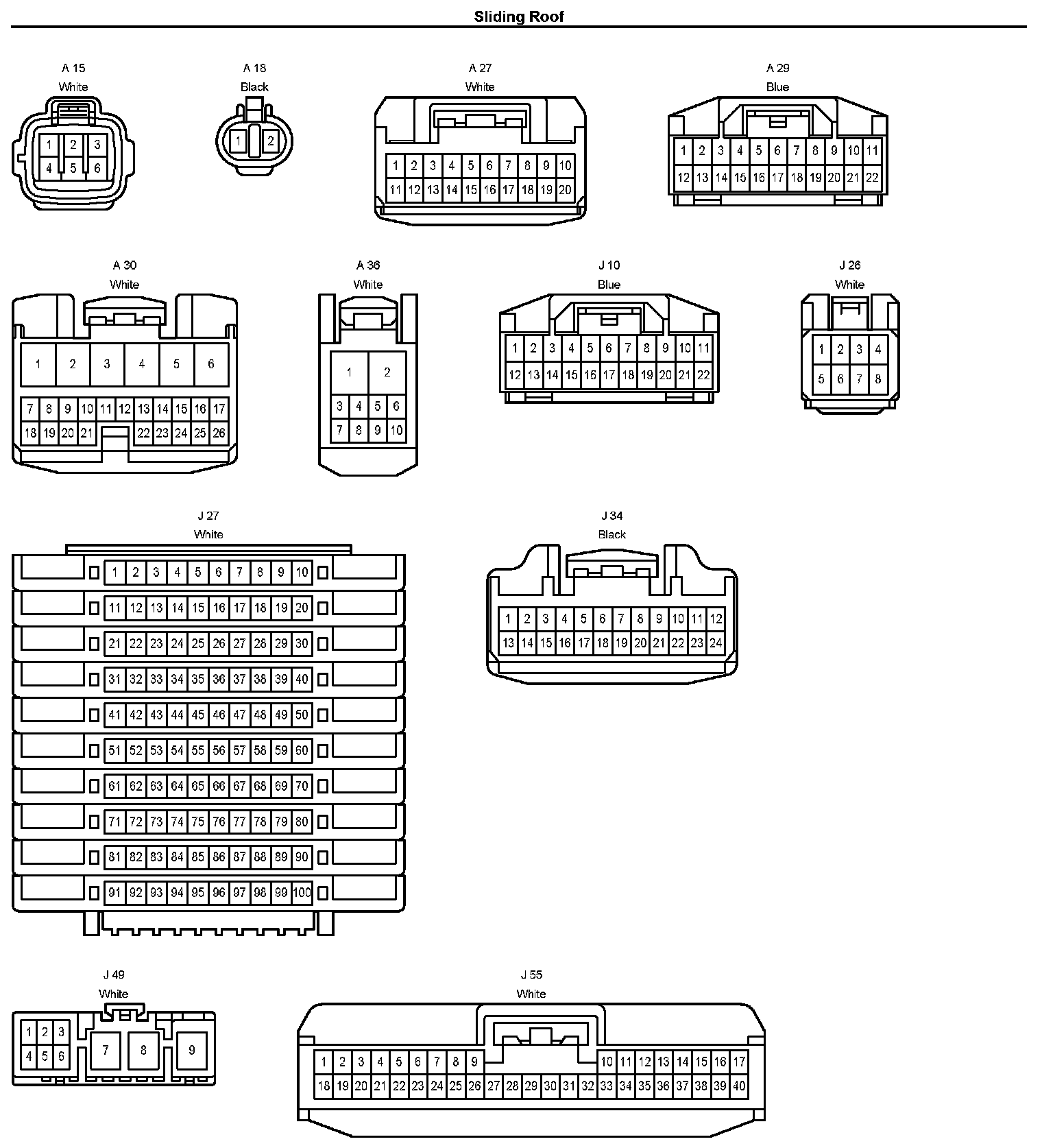

Connectors Part 1:

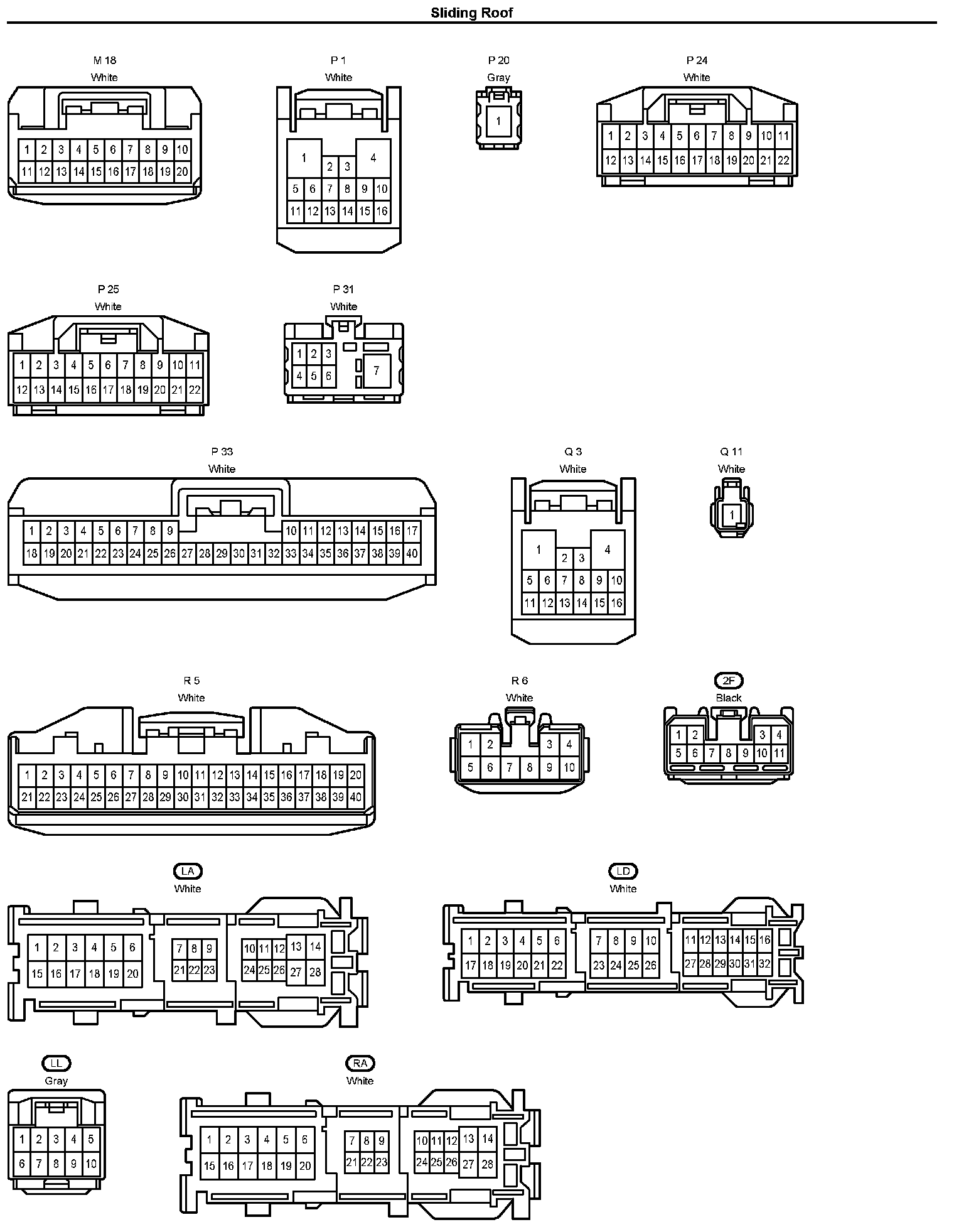

Connectors Part 2:

Connectors Part 3:

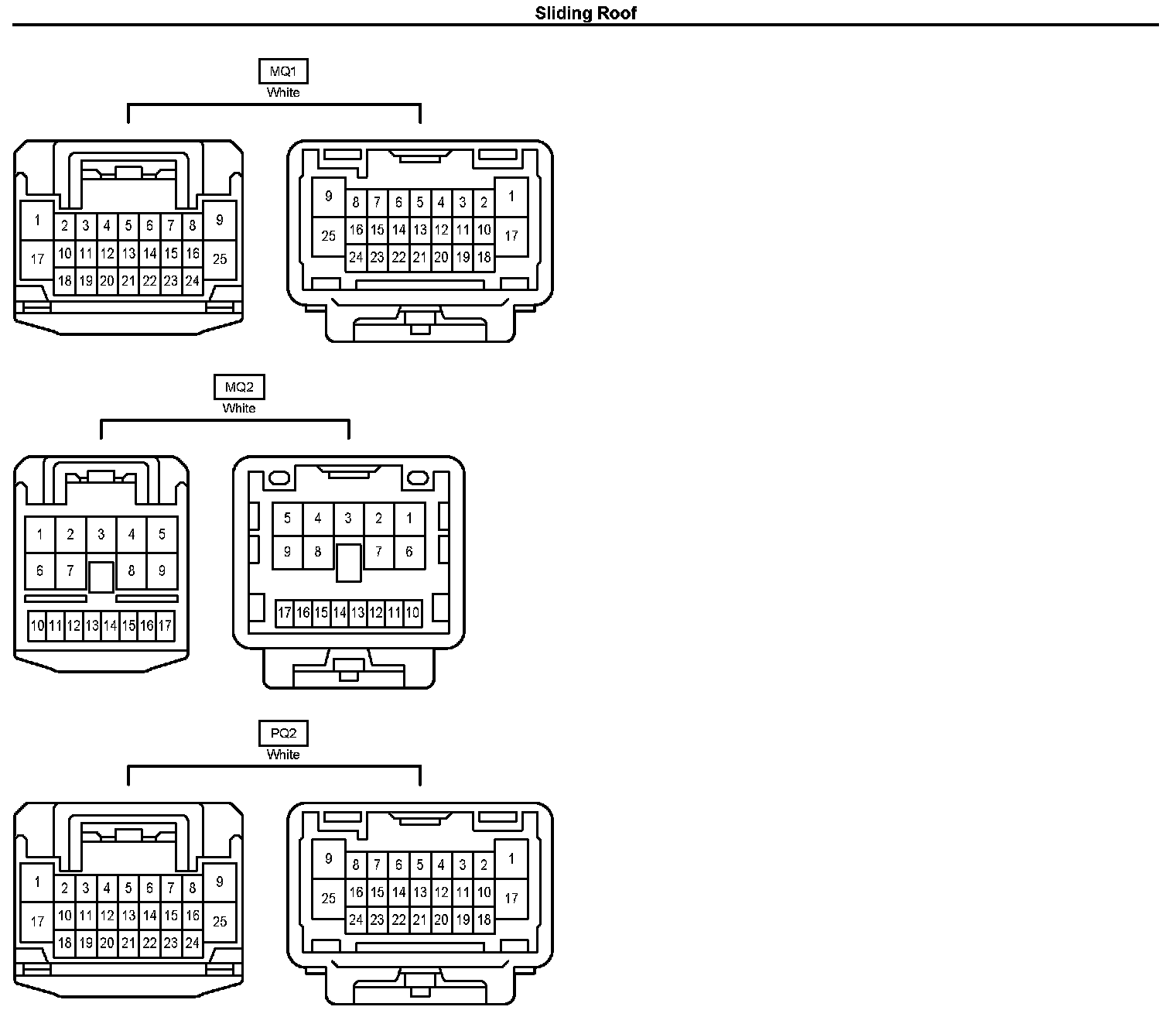

Connectors Part 4:

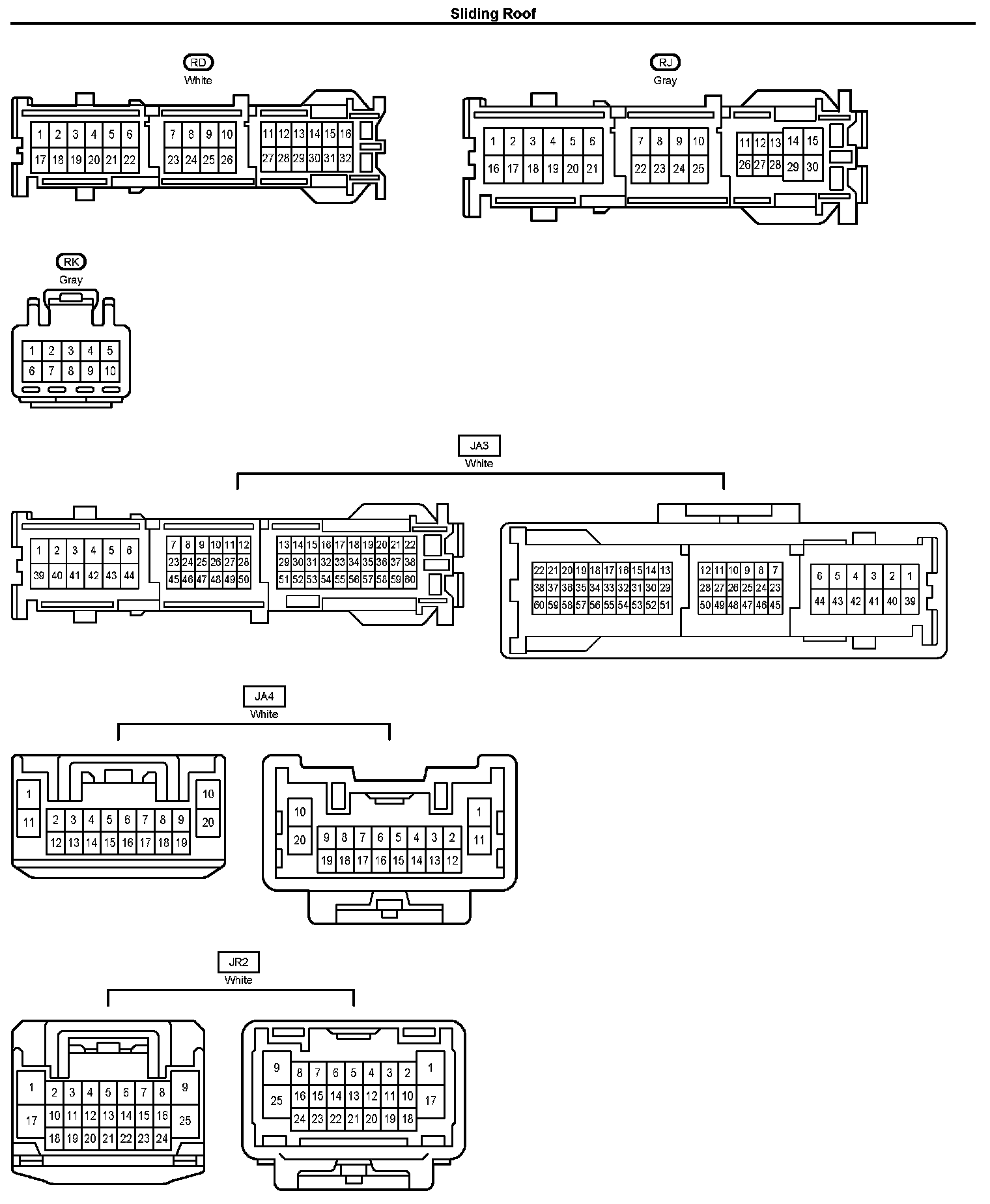

Connectors Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
