Multiplex Communication System [BEAN]

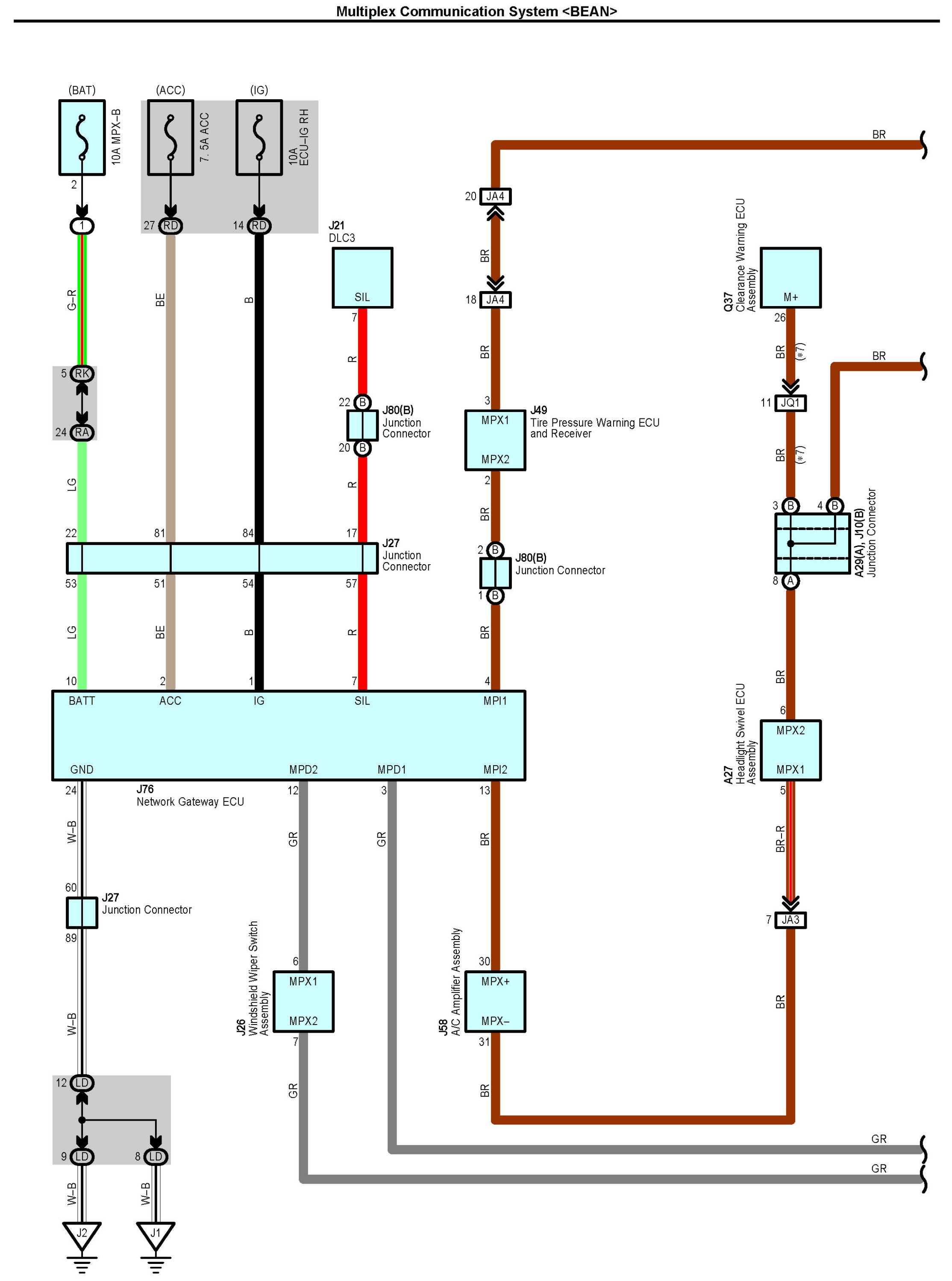

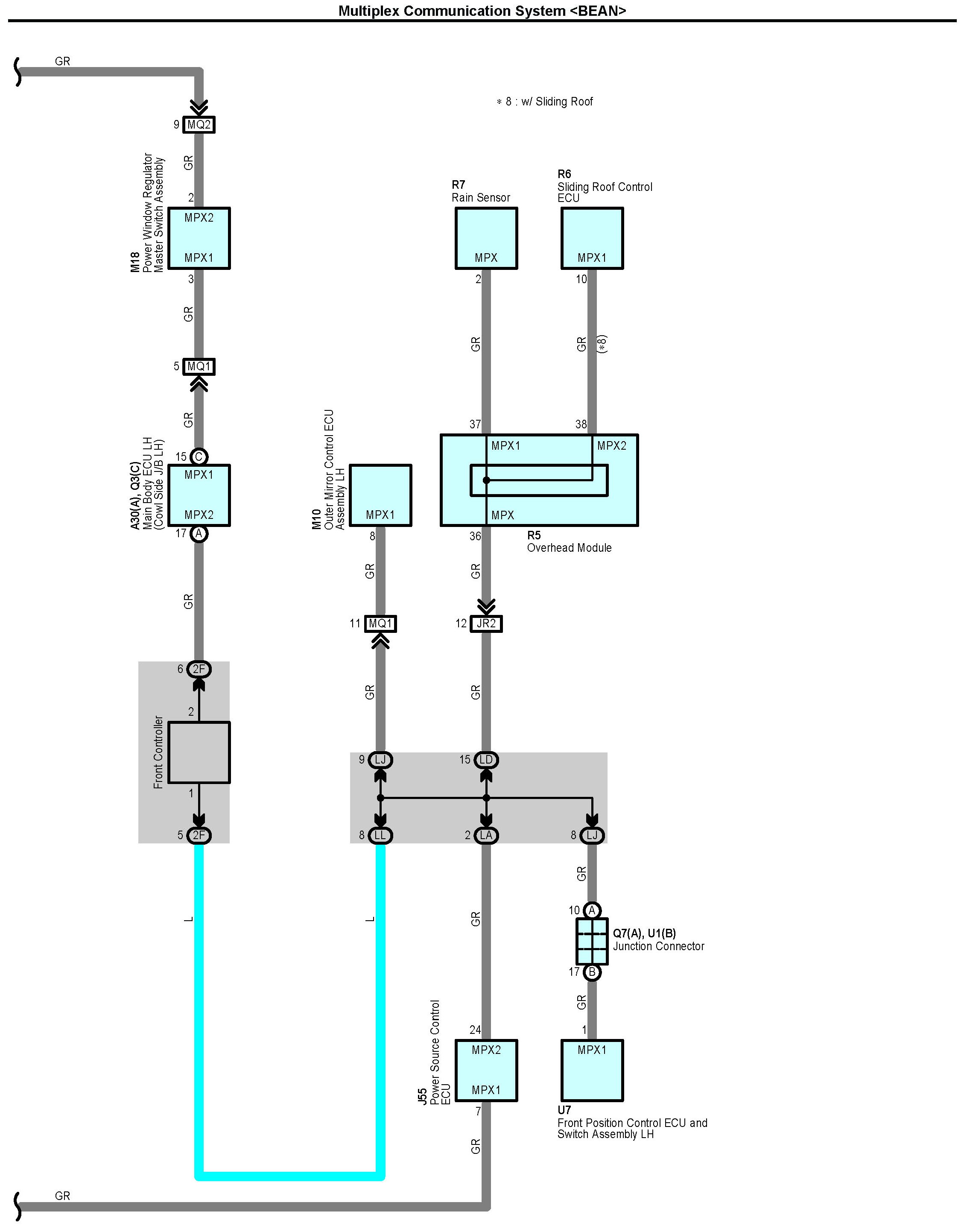

Multiplex Communication System [BEAN] Part 1:

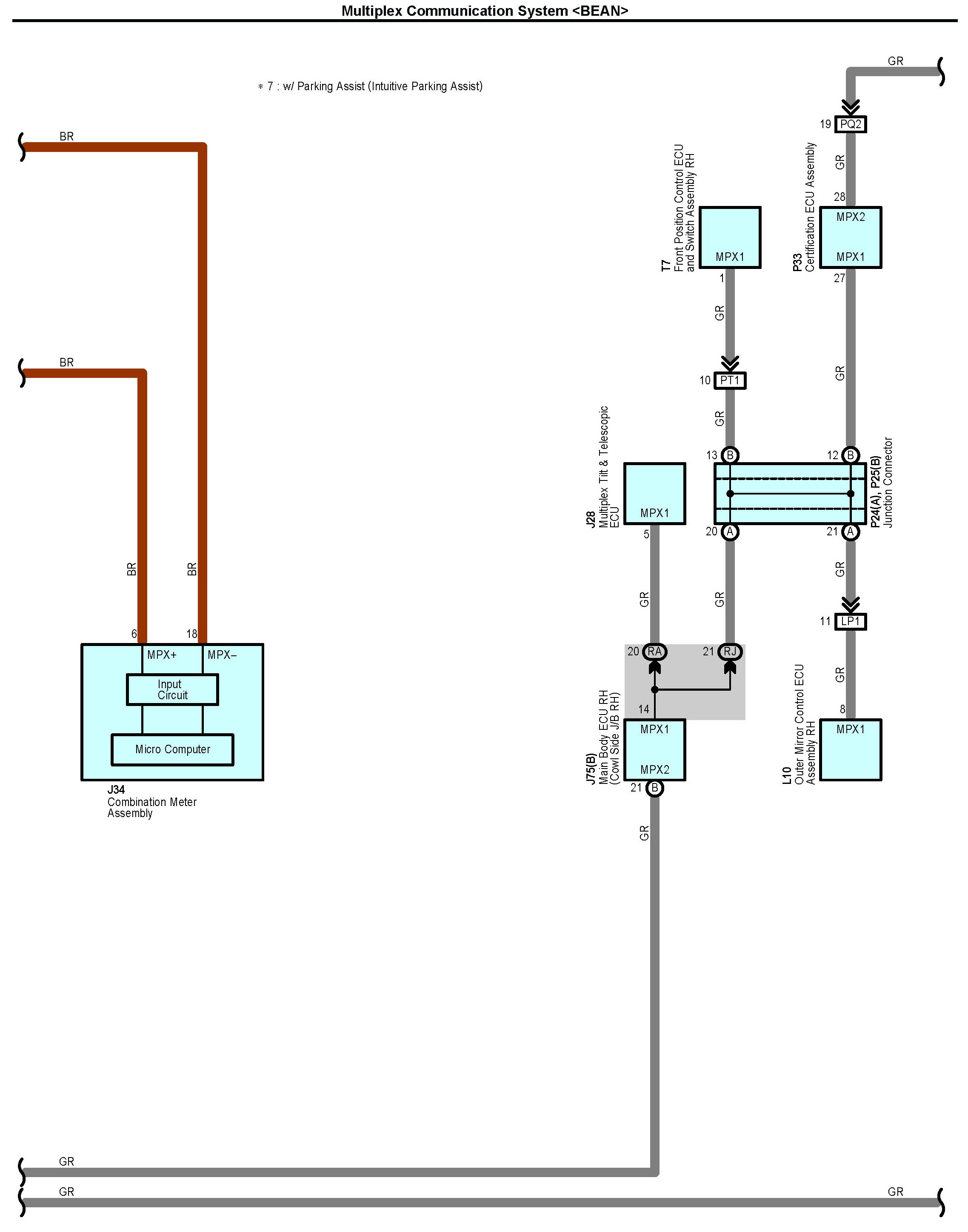

Multiplex Communication System [BEAN] Part 2:

Multiplex Communication System [BEAN] Part 3:

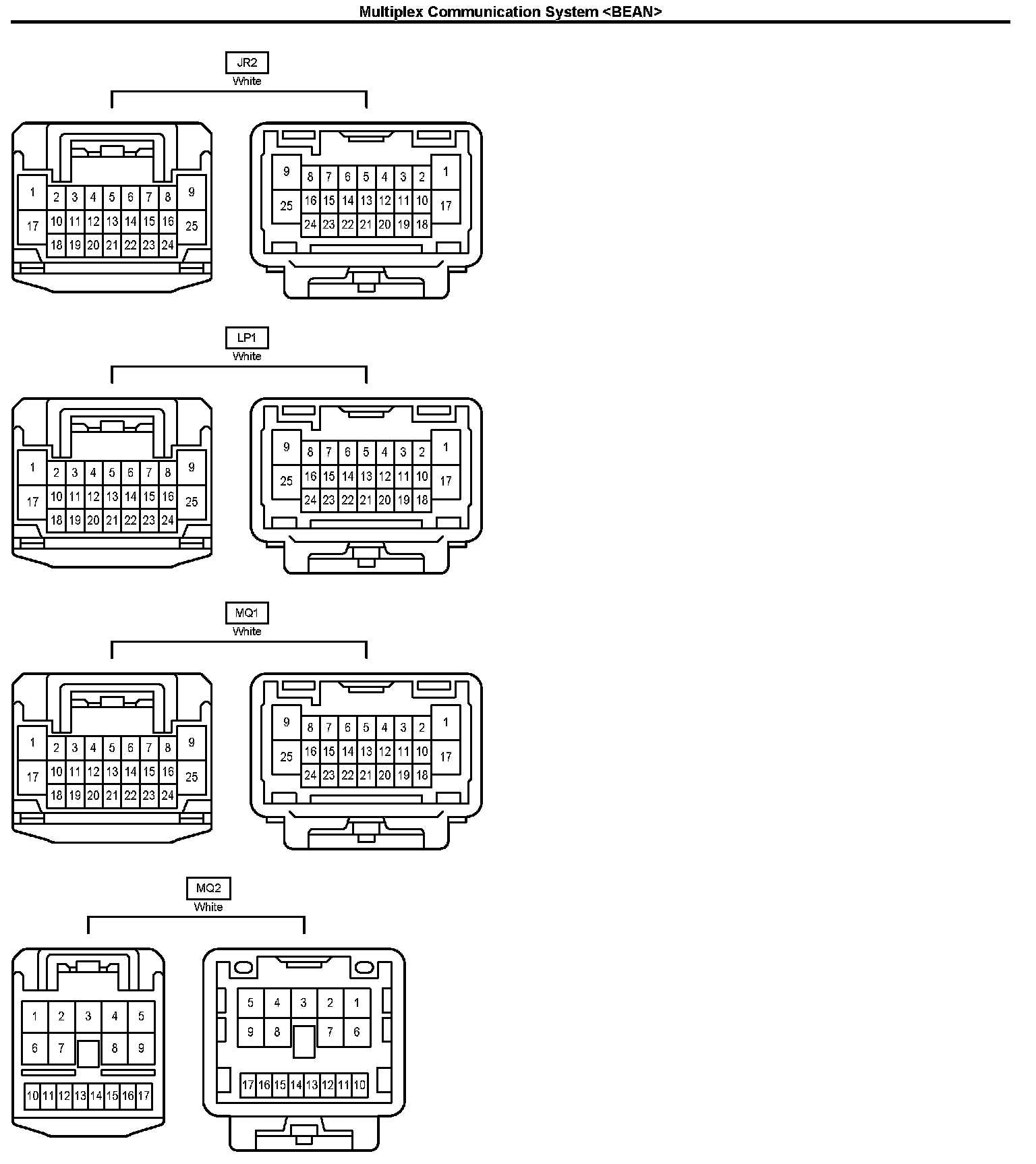

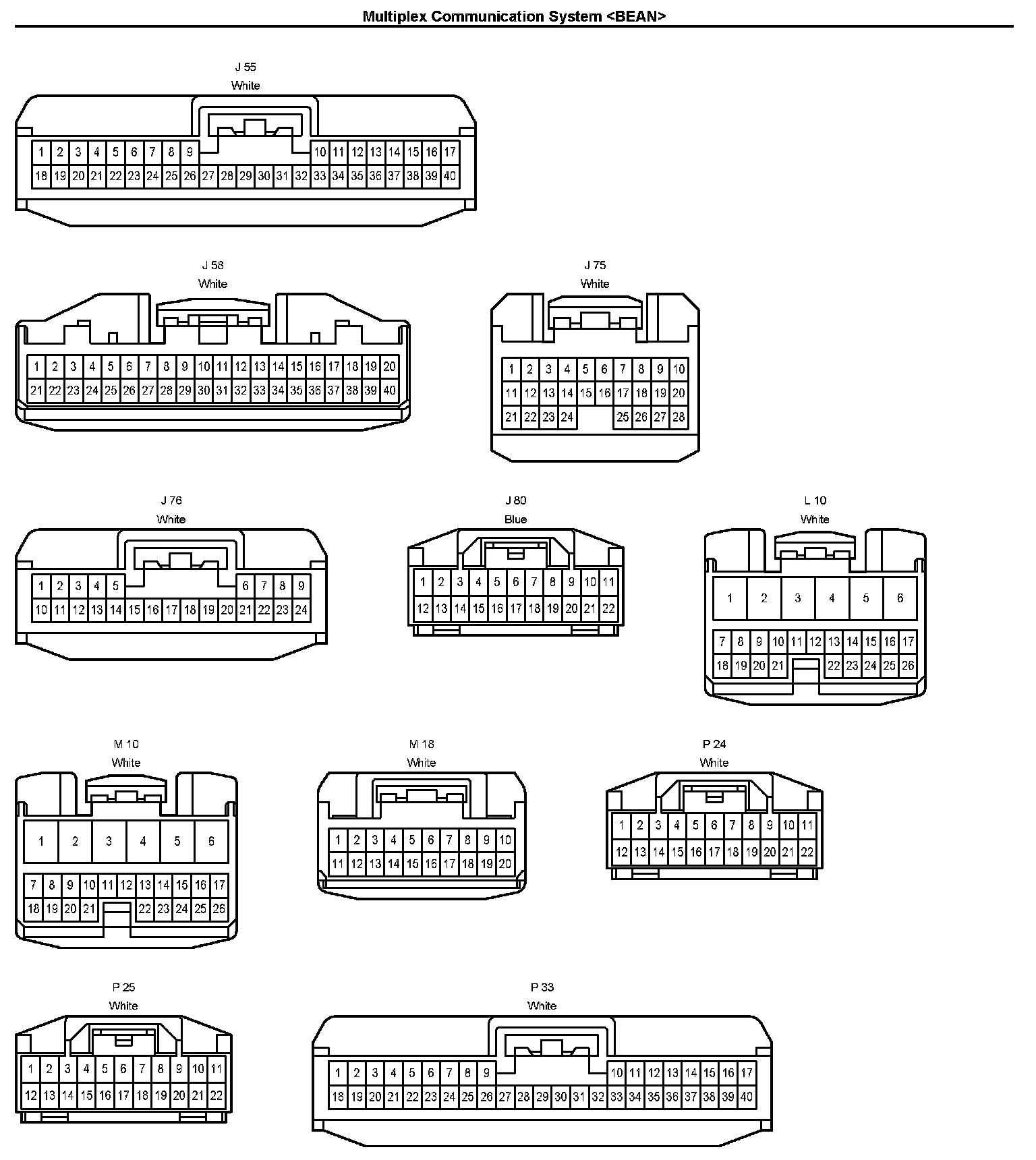

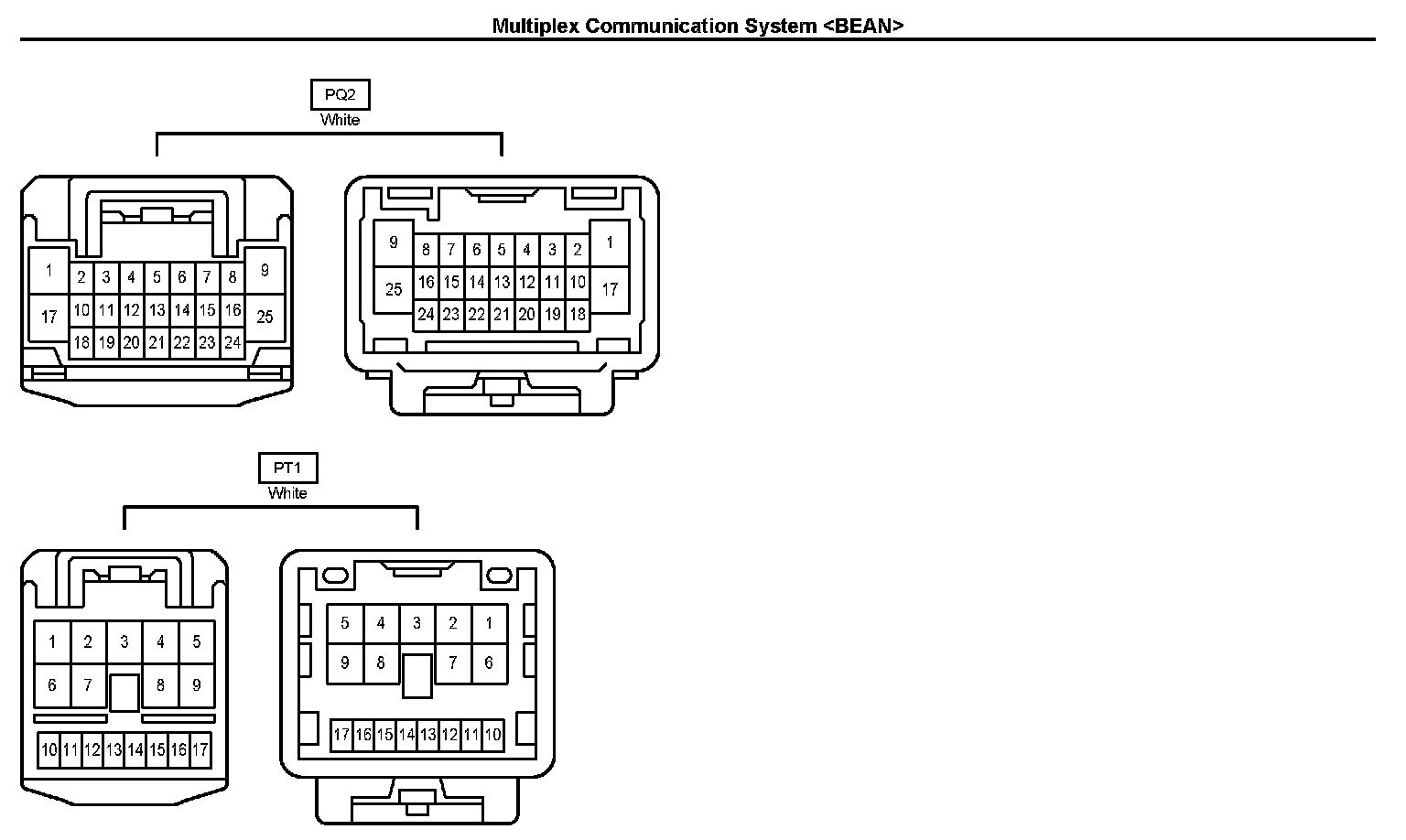

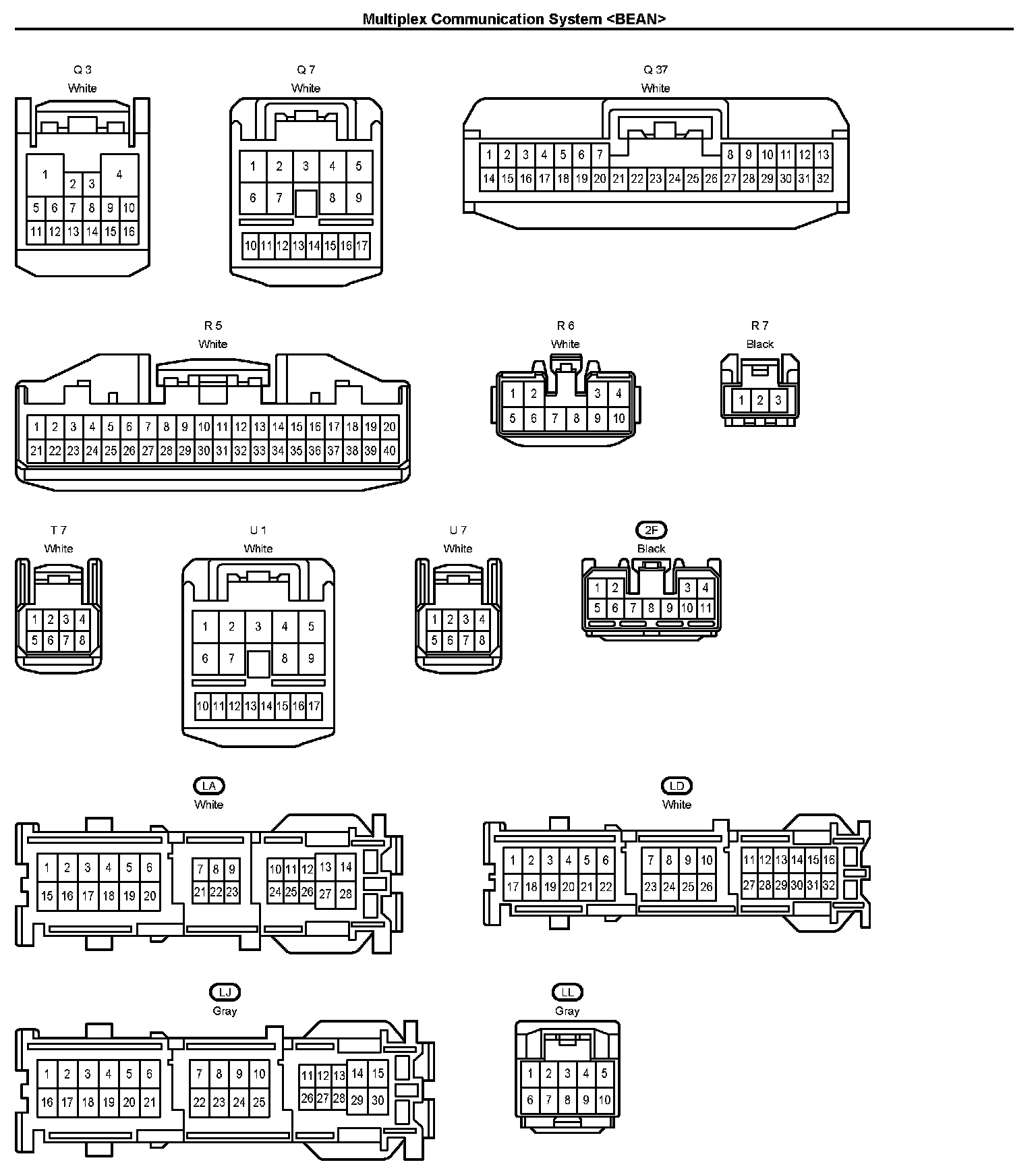

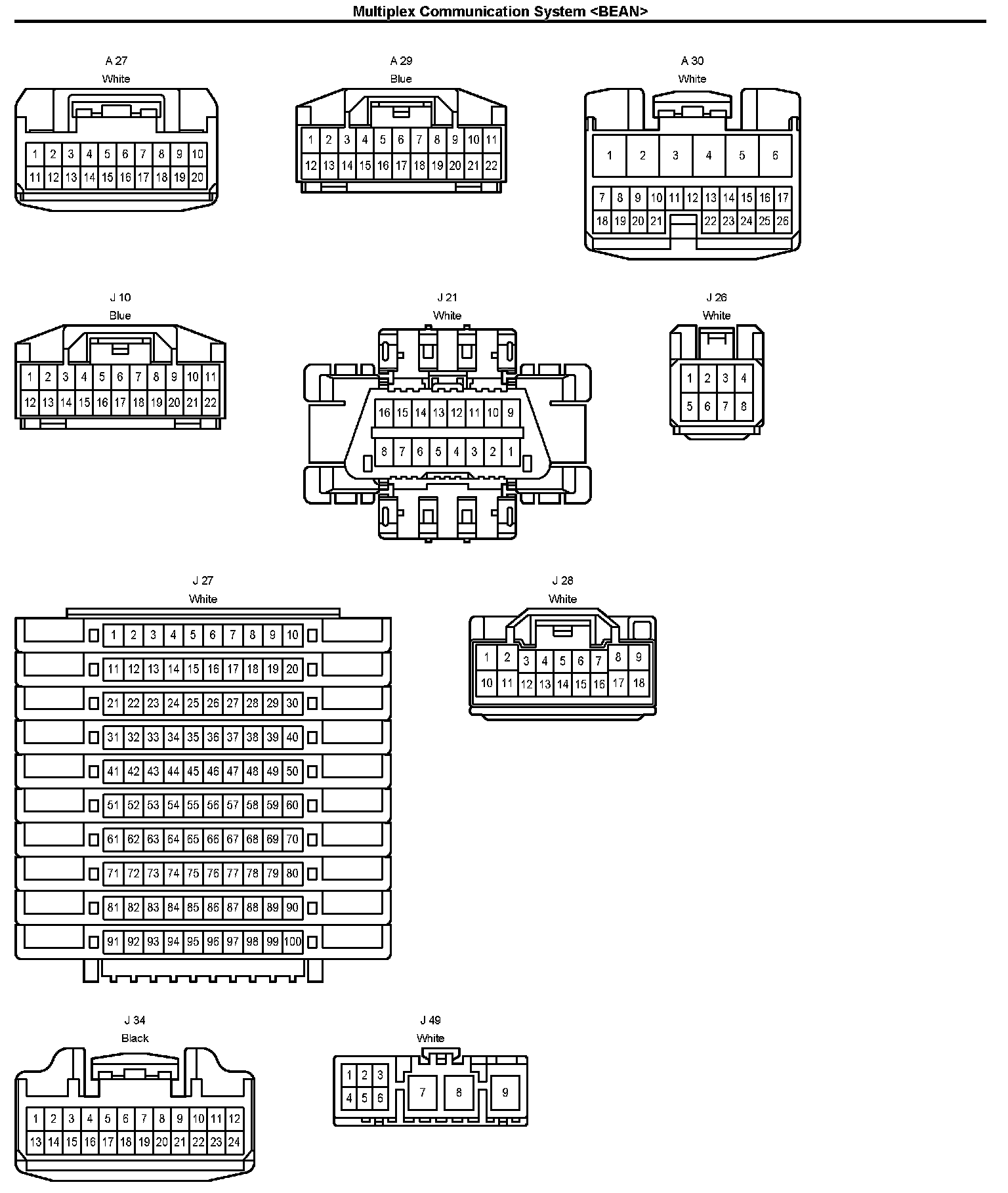

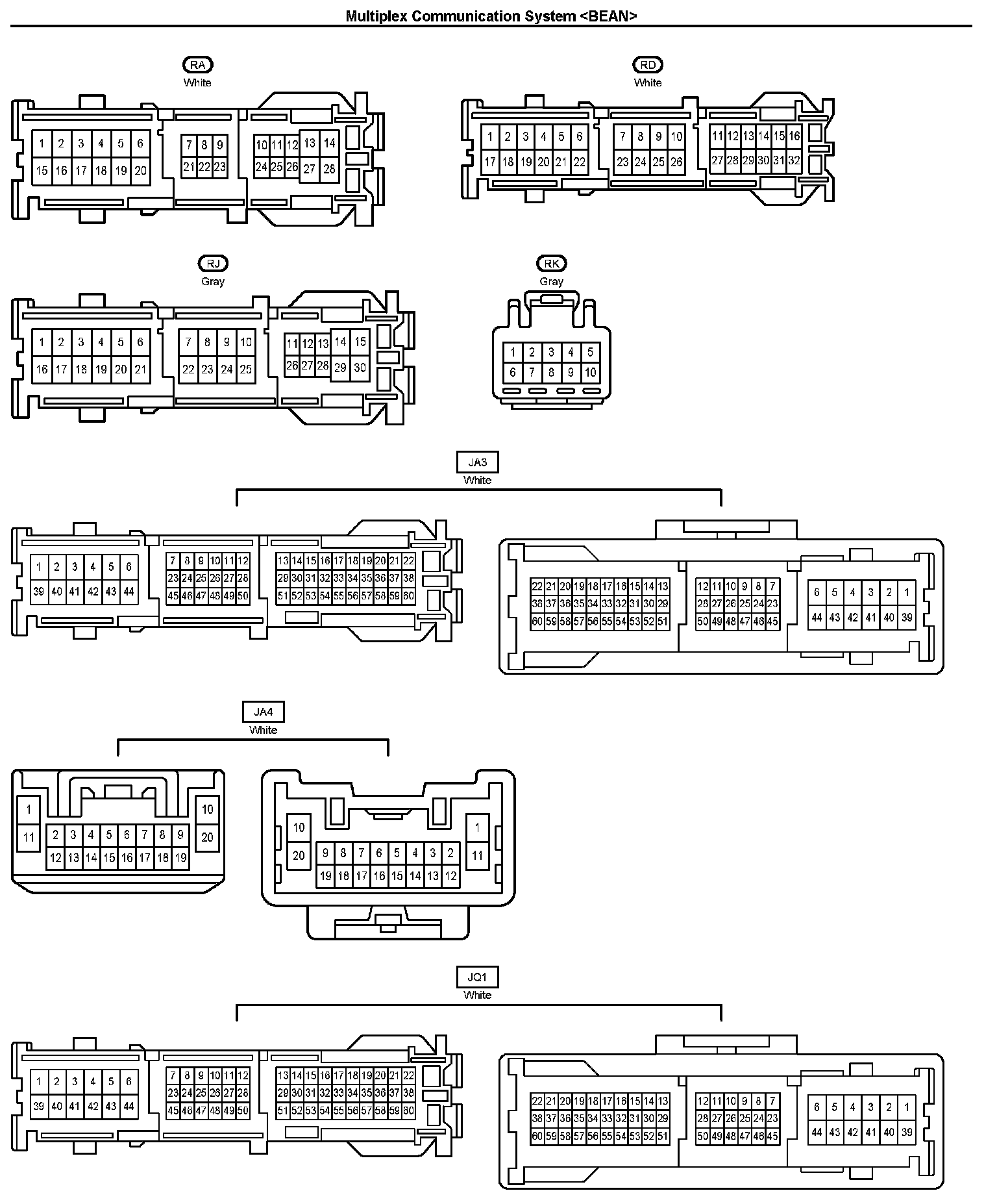

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
