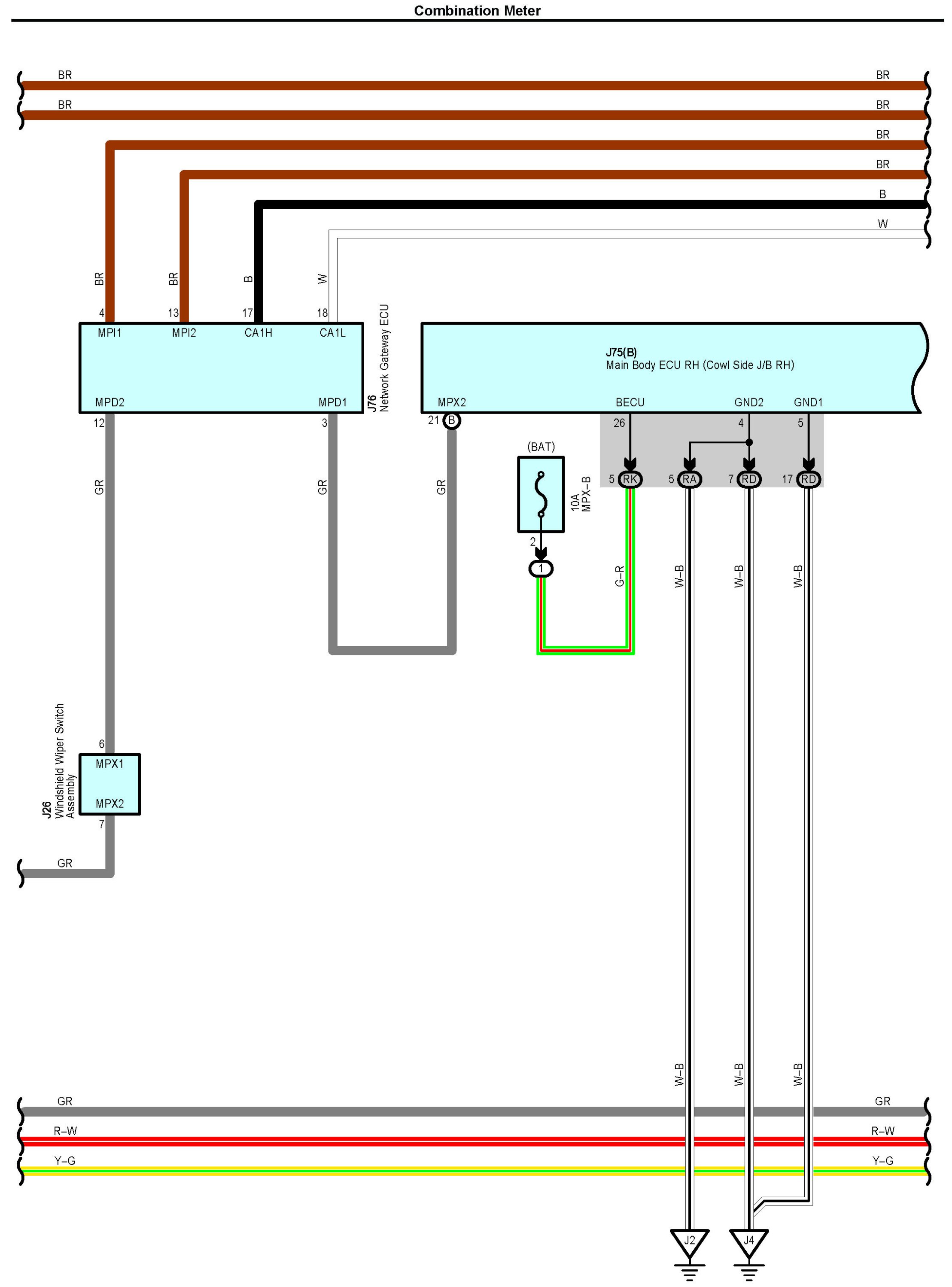

System Diagram

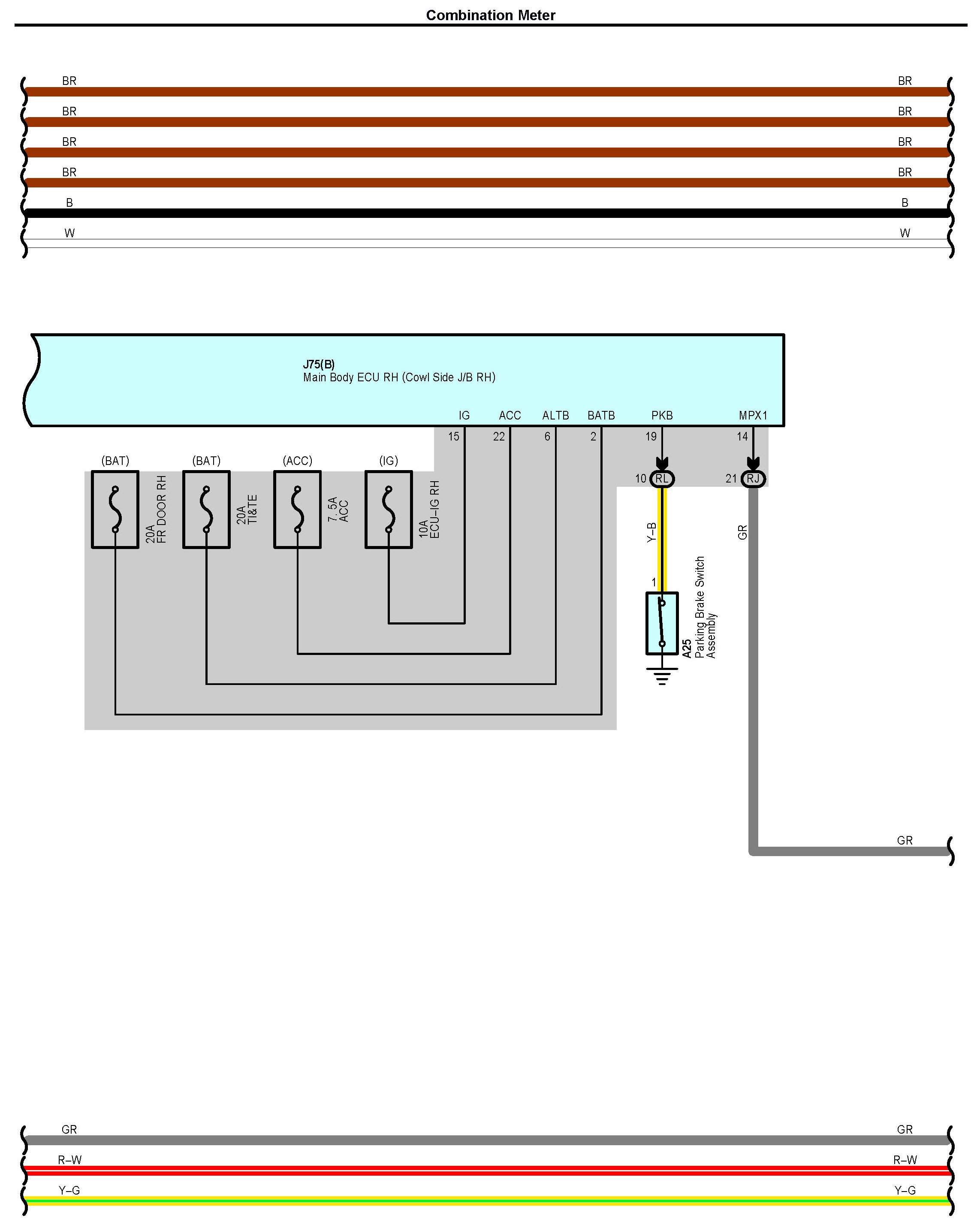

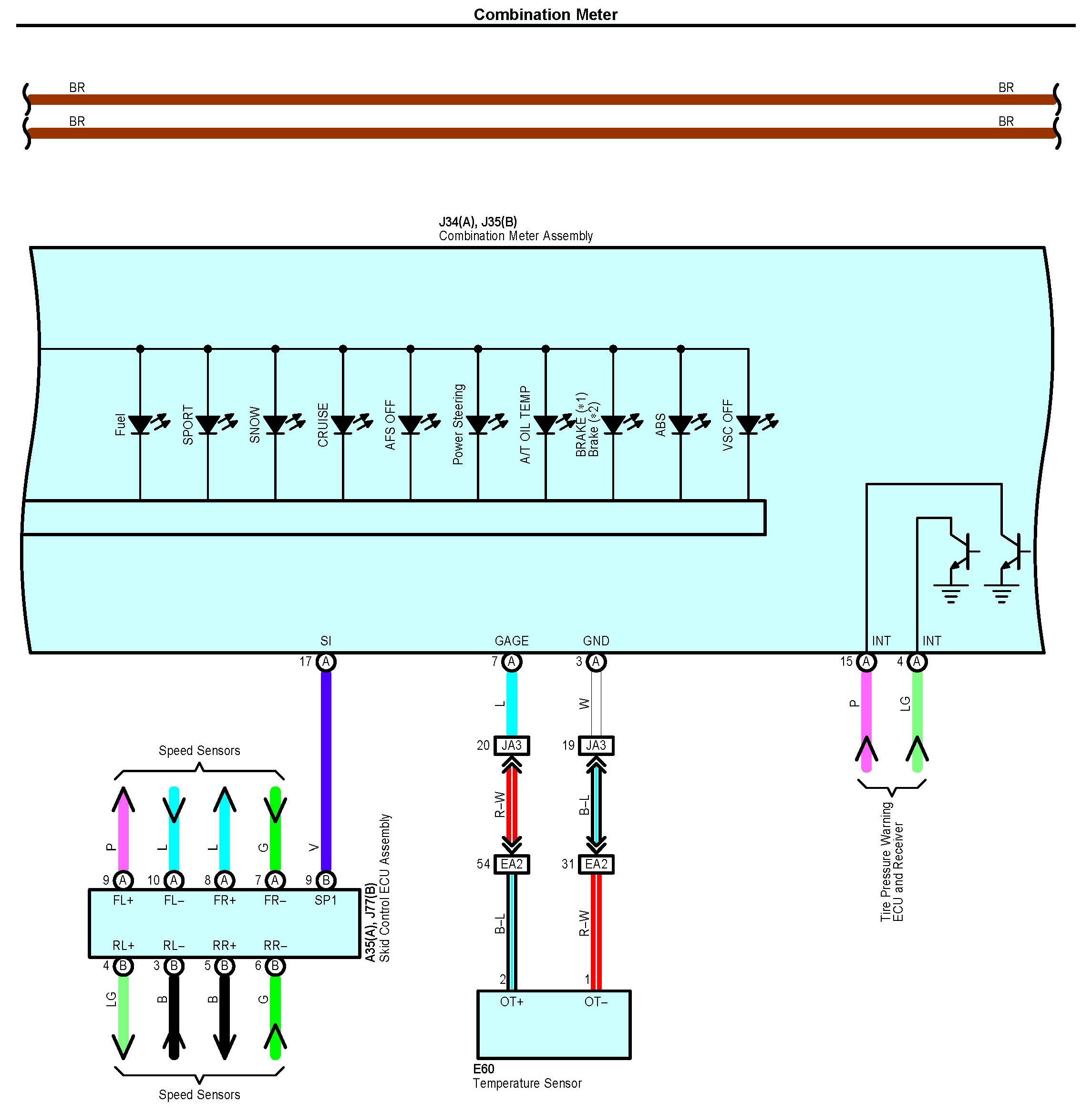

Combination Meter Part 1:

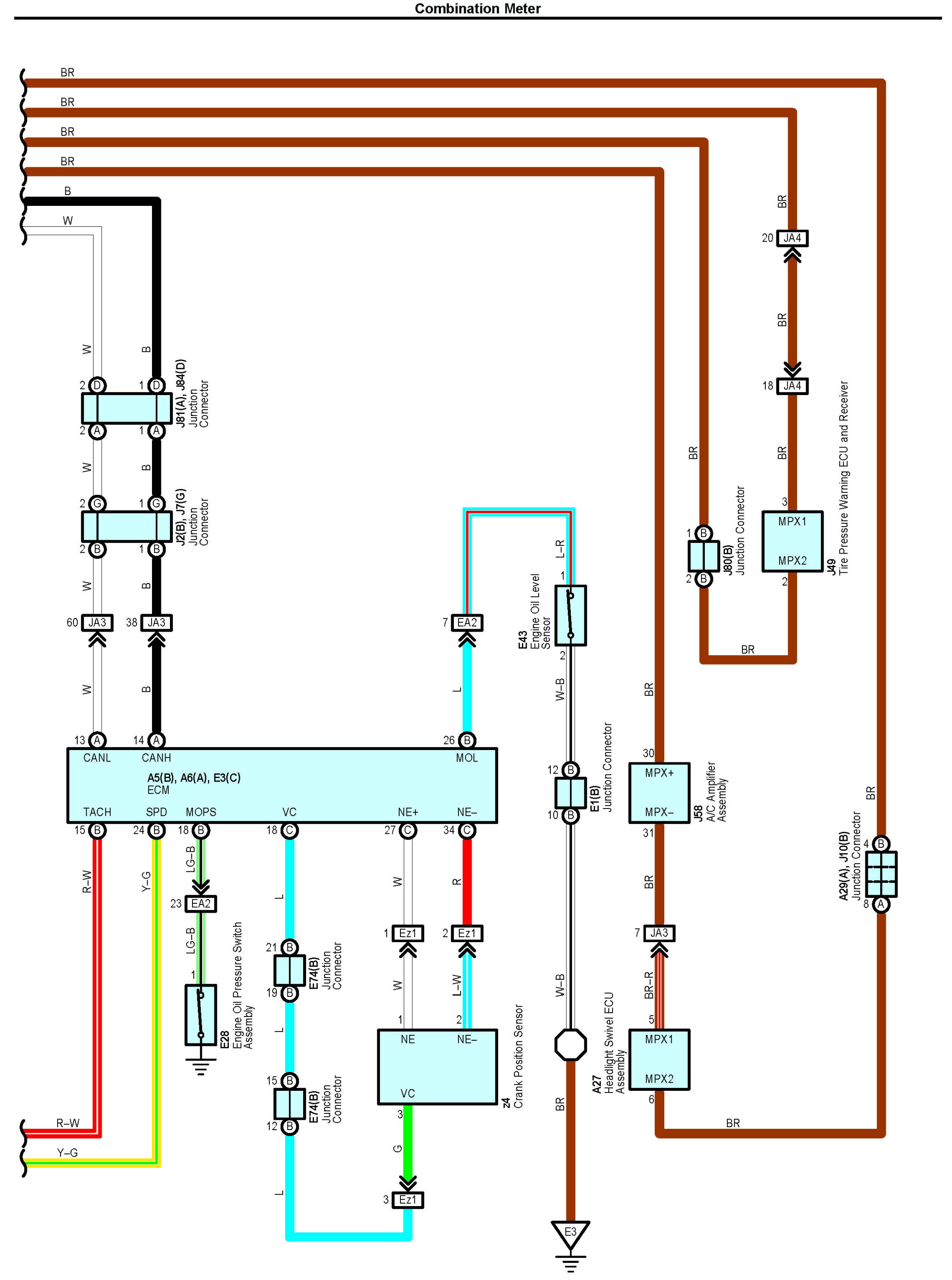

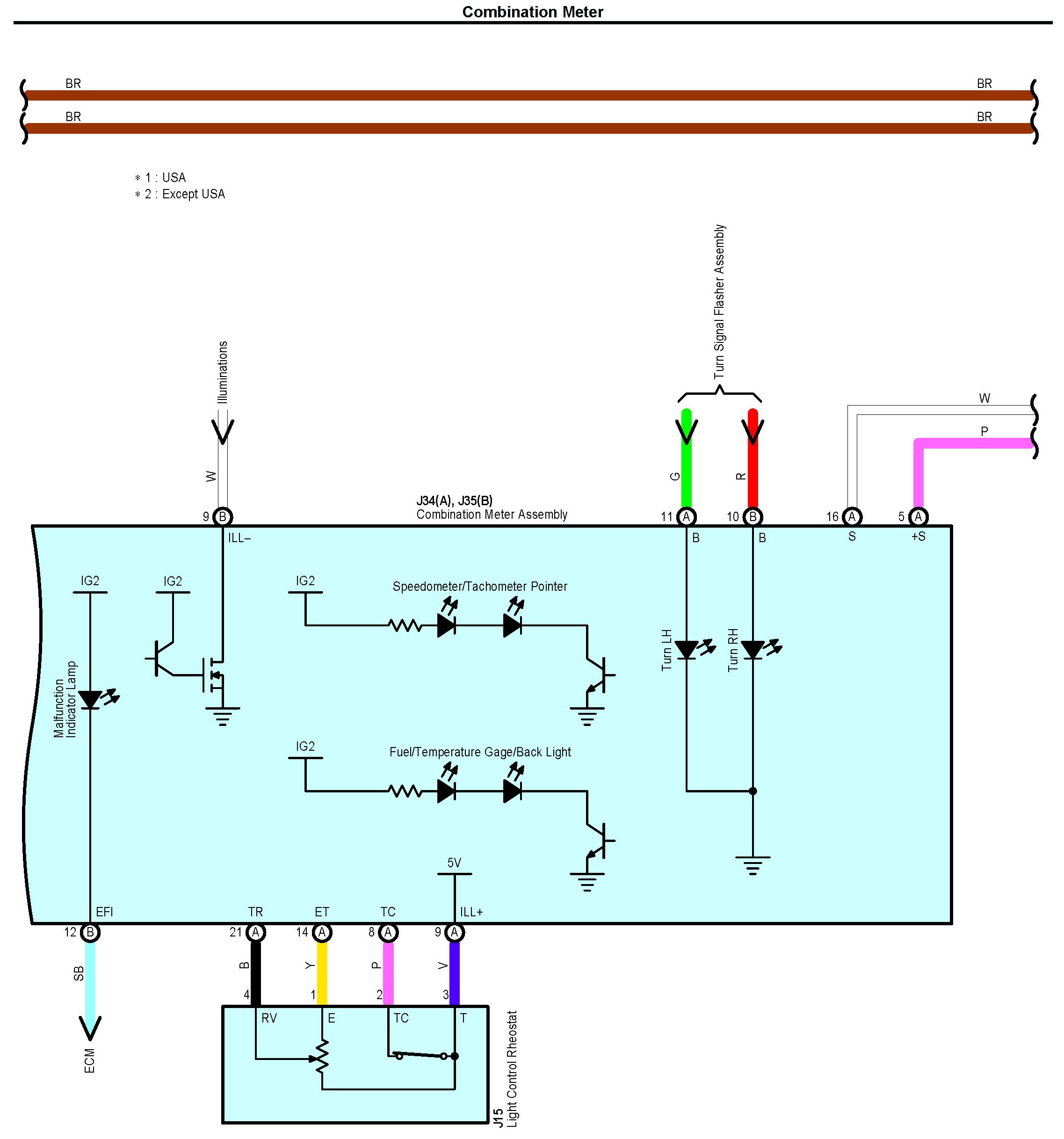

Combination Meter Part 2:

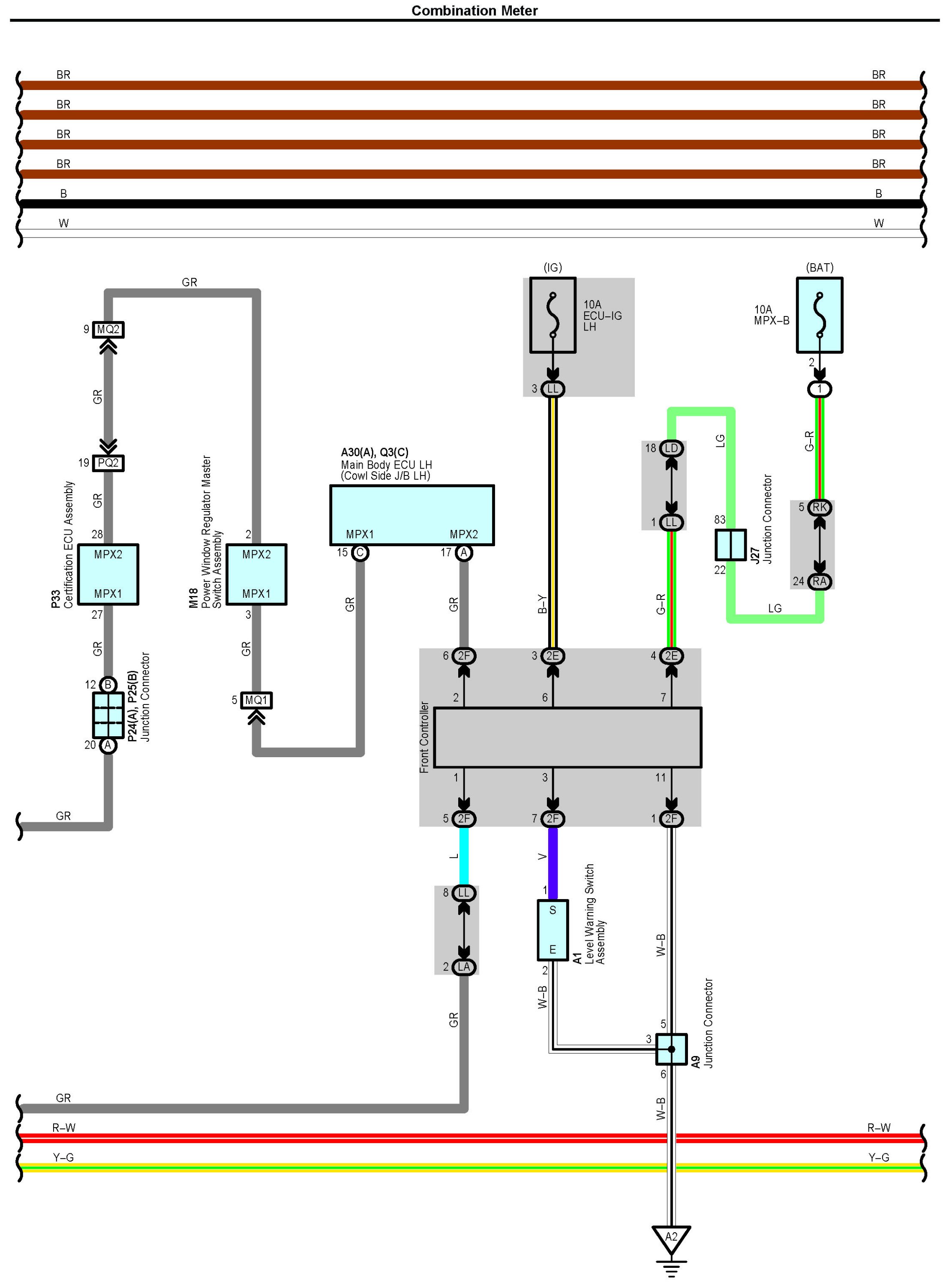

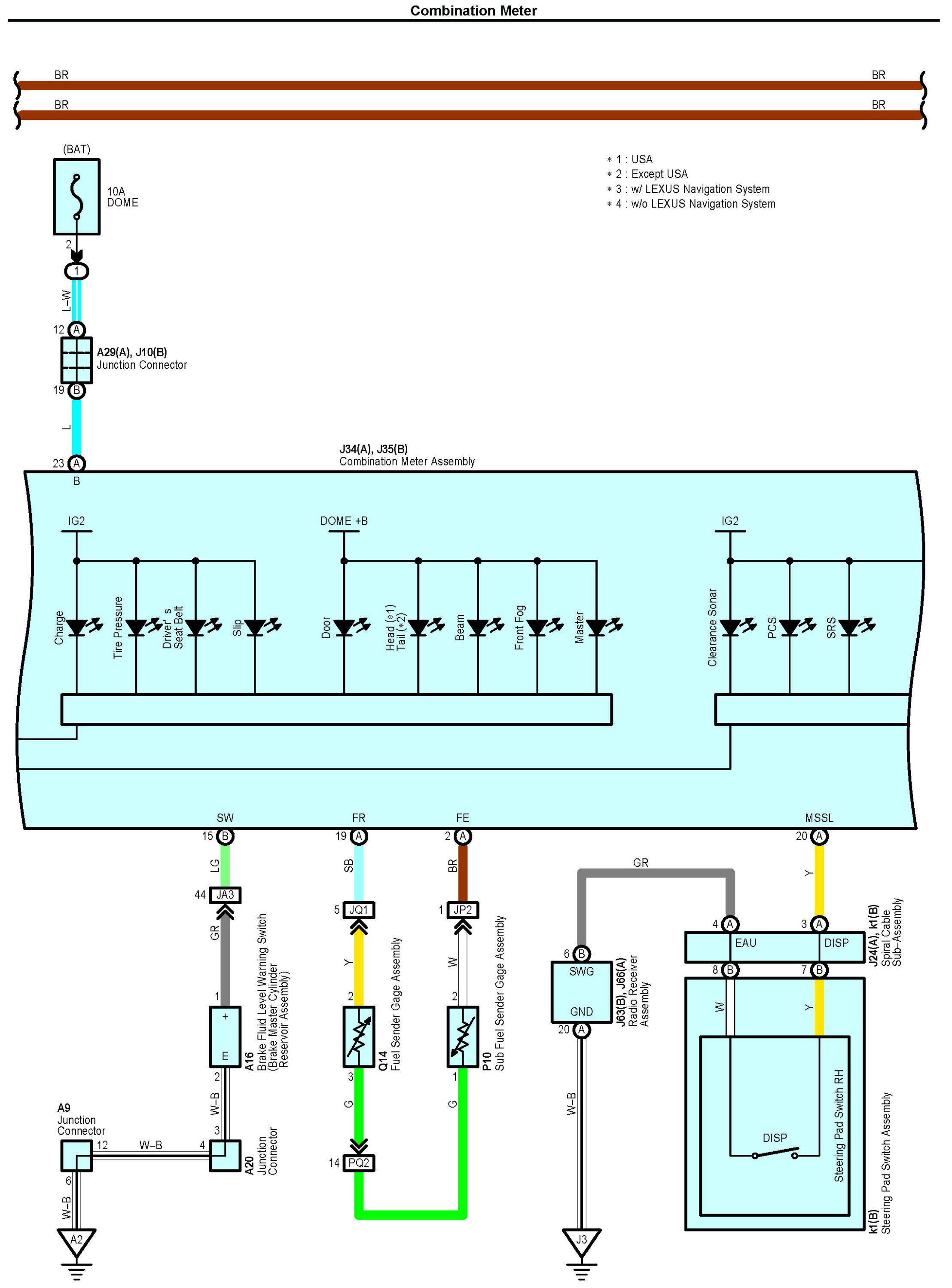

Combination Meter Part 3:

Combination Meter Part 4:

Combination Meter Part 5:

Combination Meter Part 6:

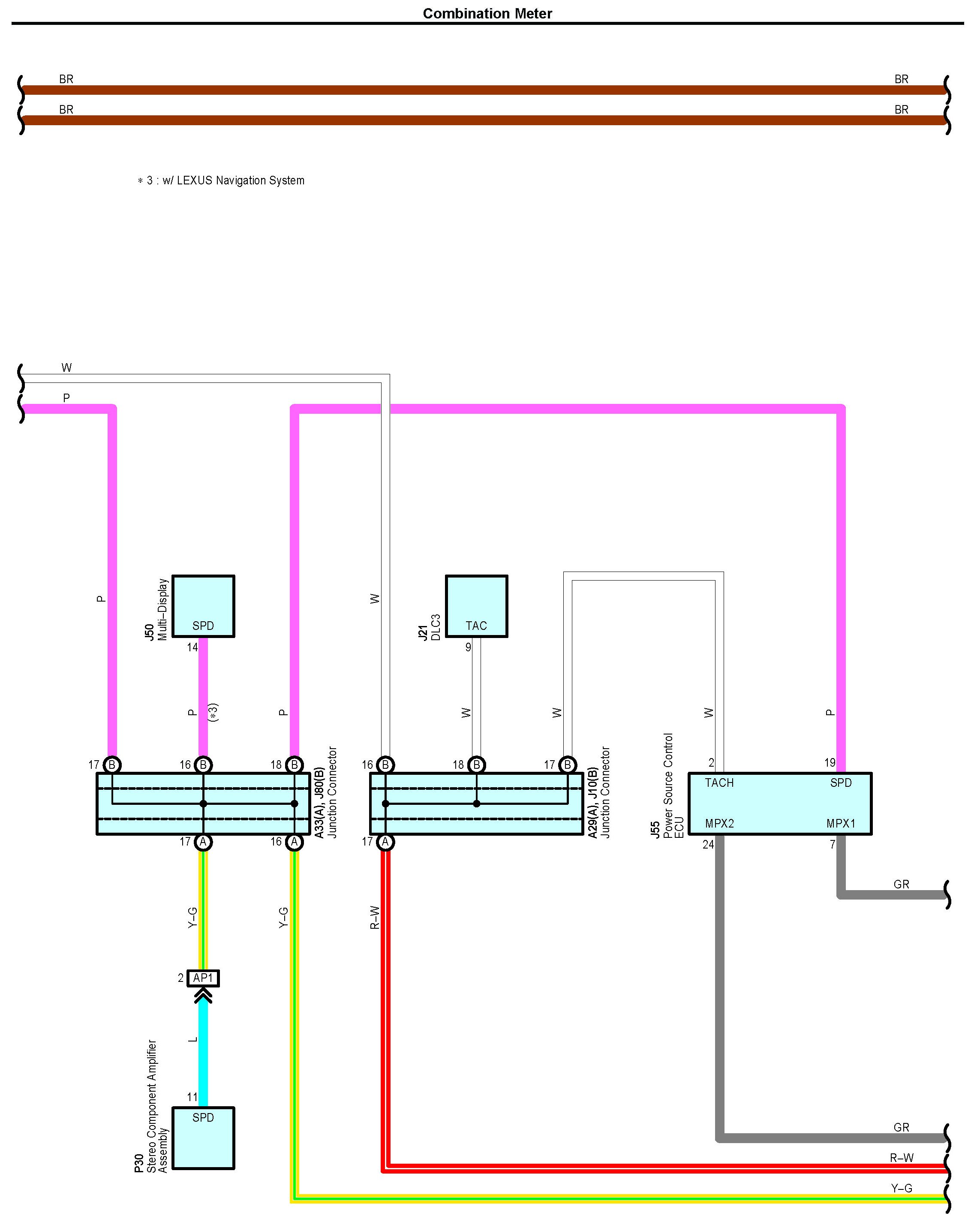

Combination Meter Part 7:

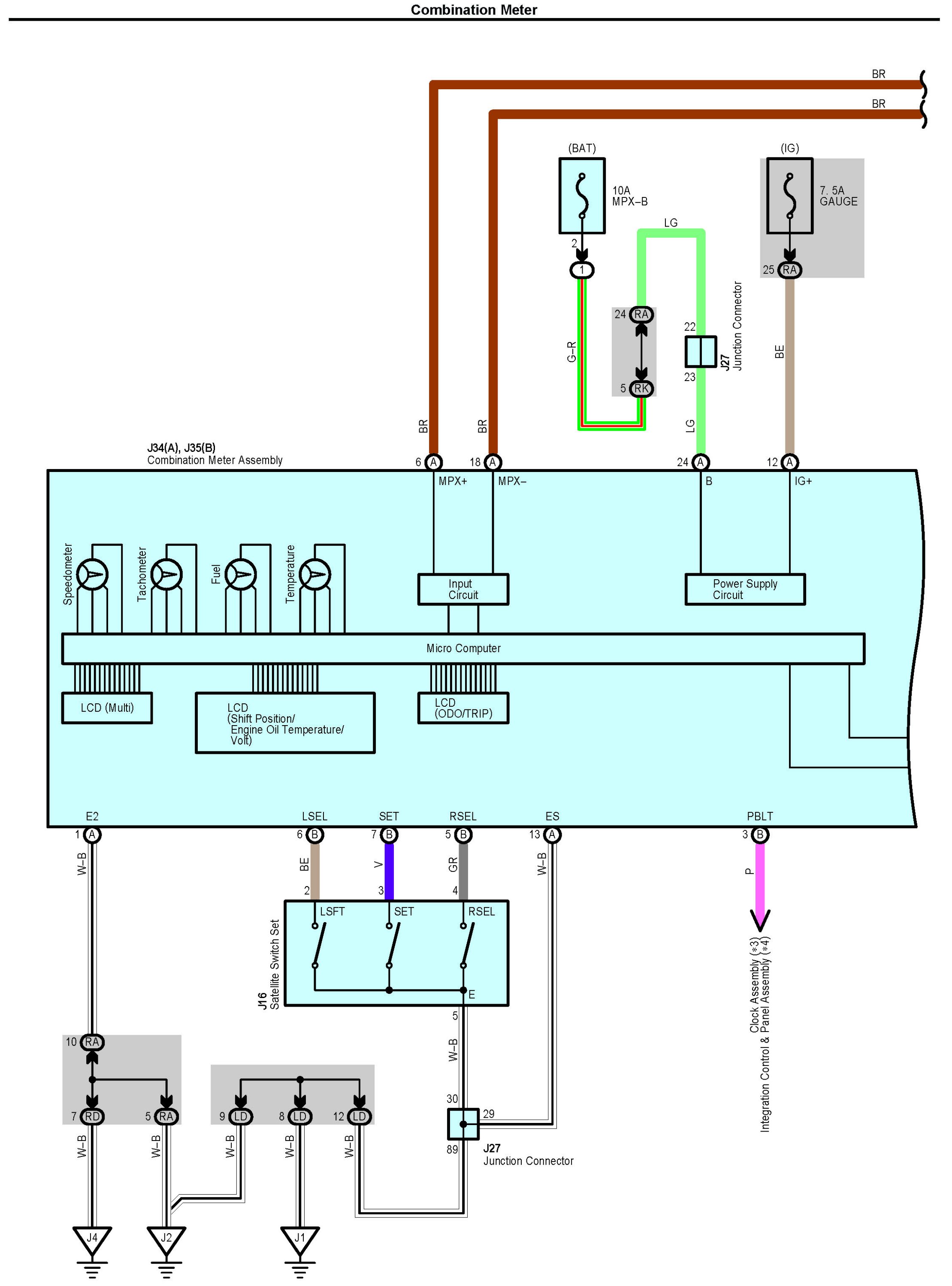

Combination Meter Part 8:

Combination Meter Part 9:

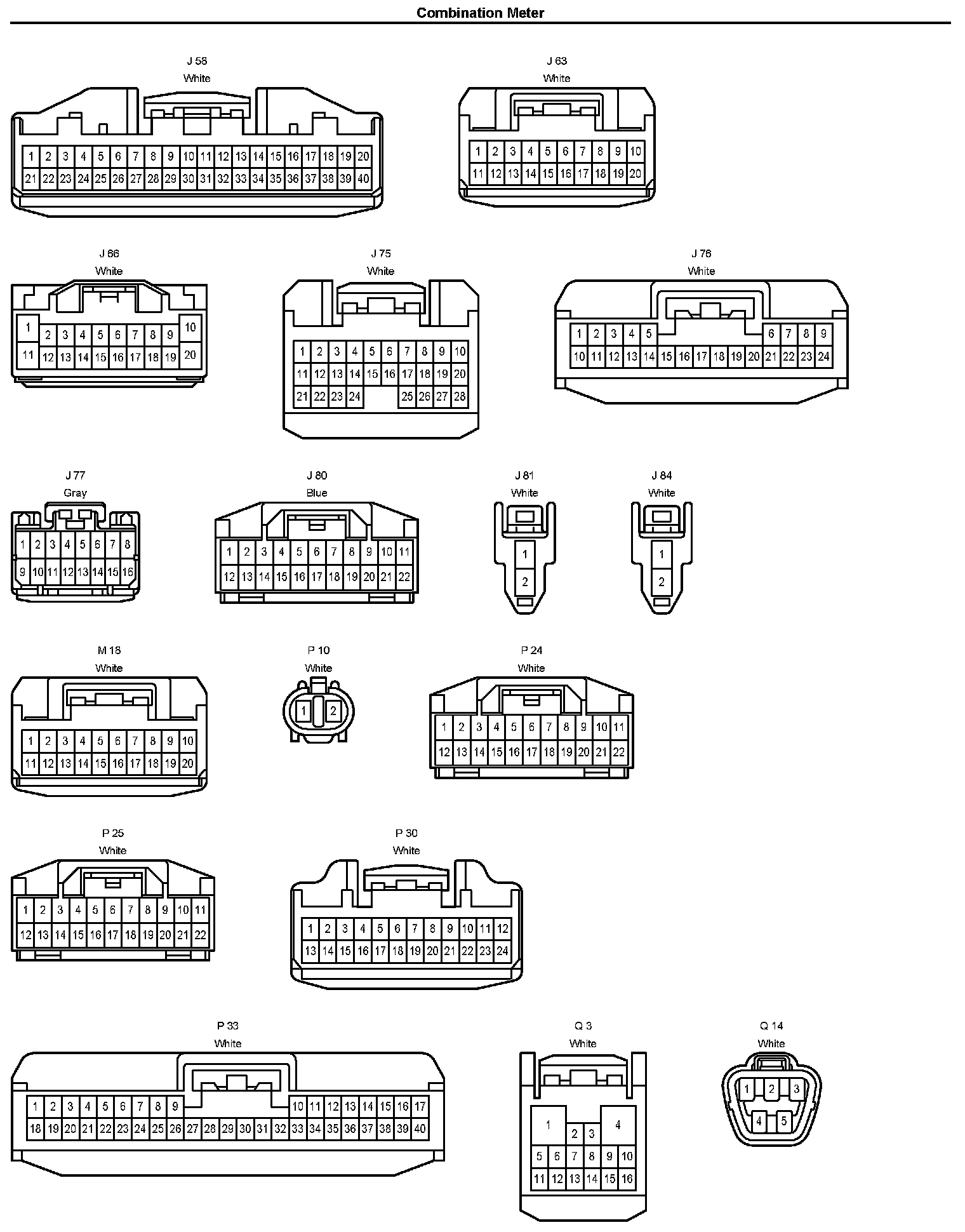

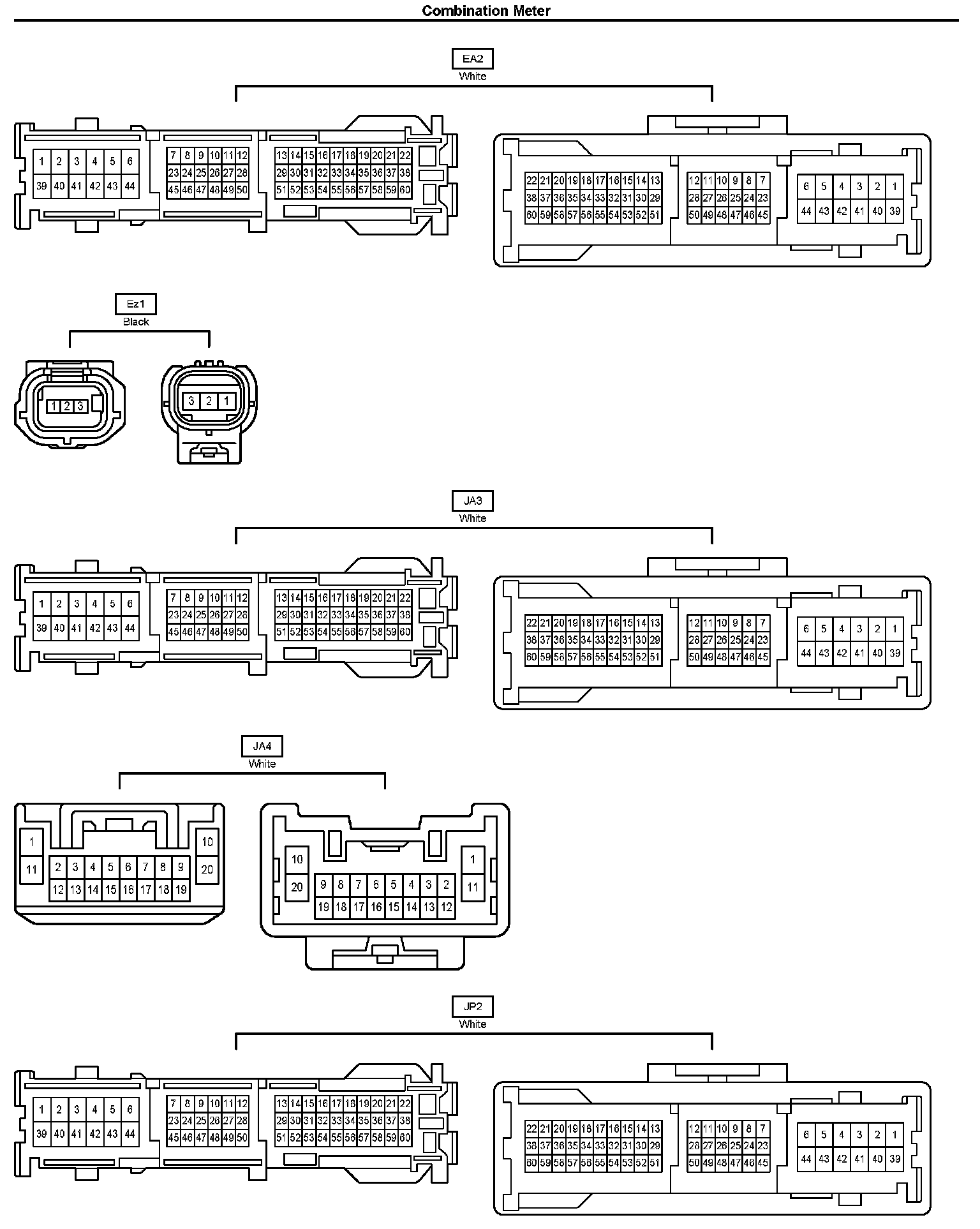

Connectors Part 1:

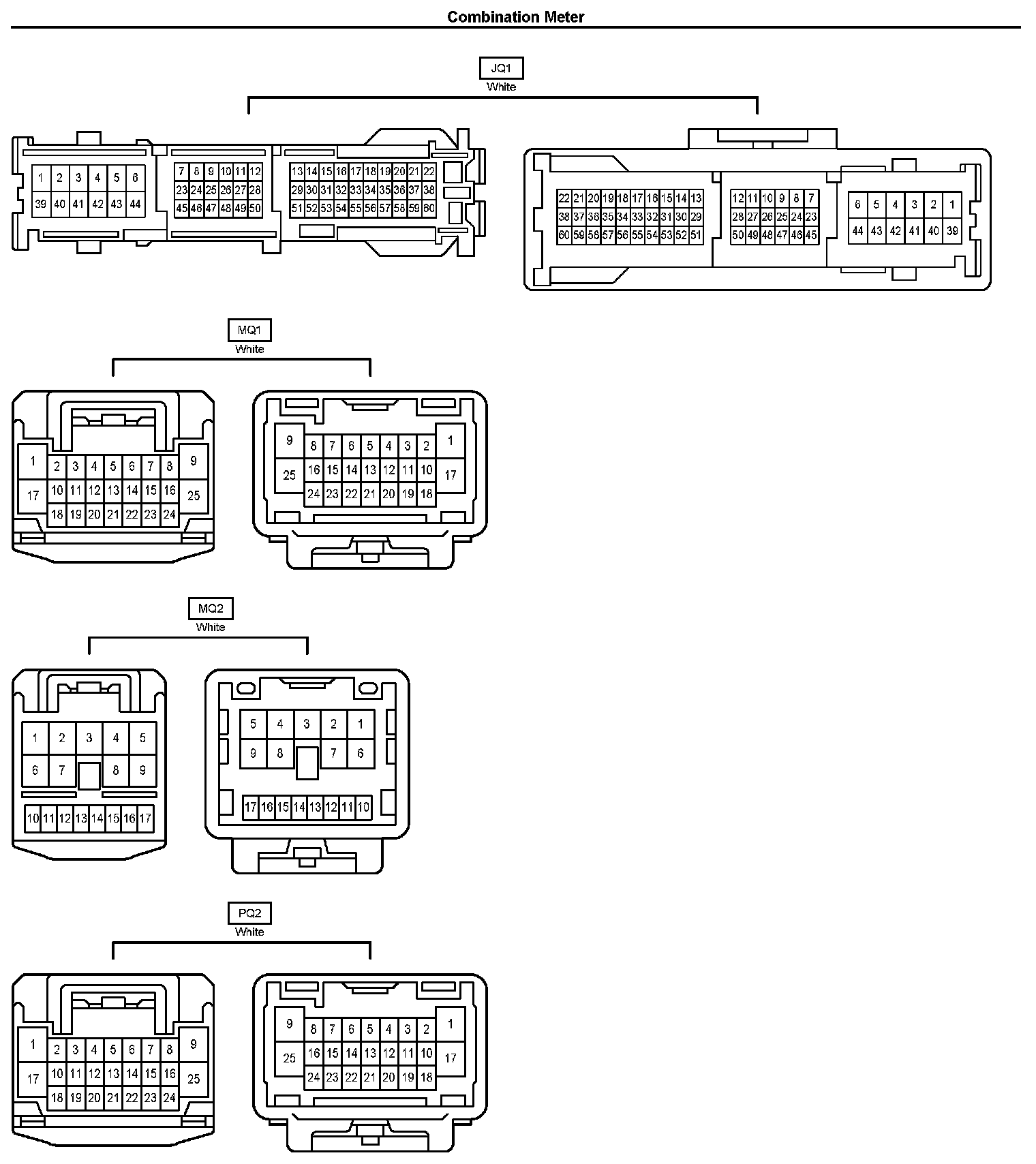

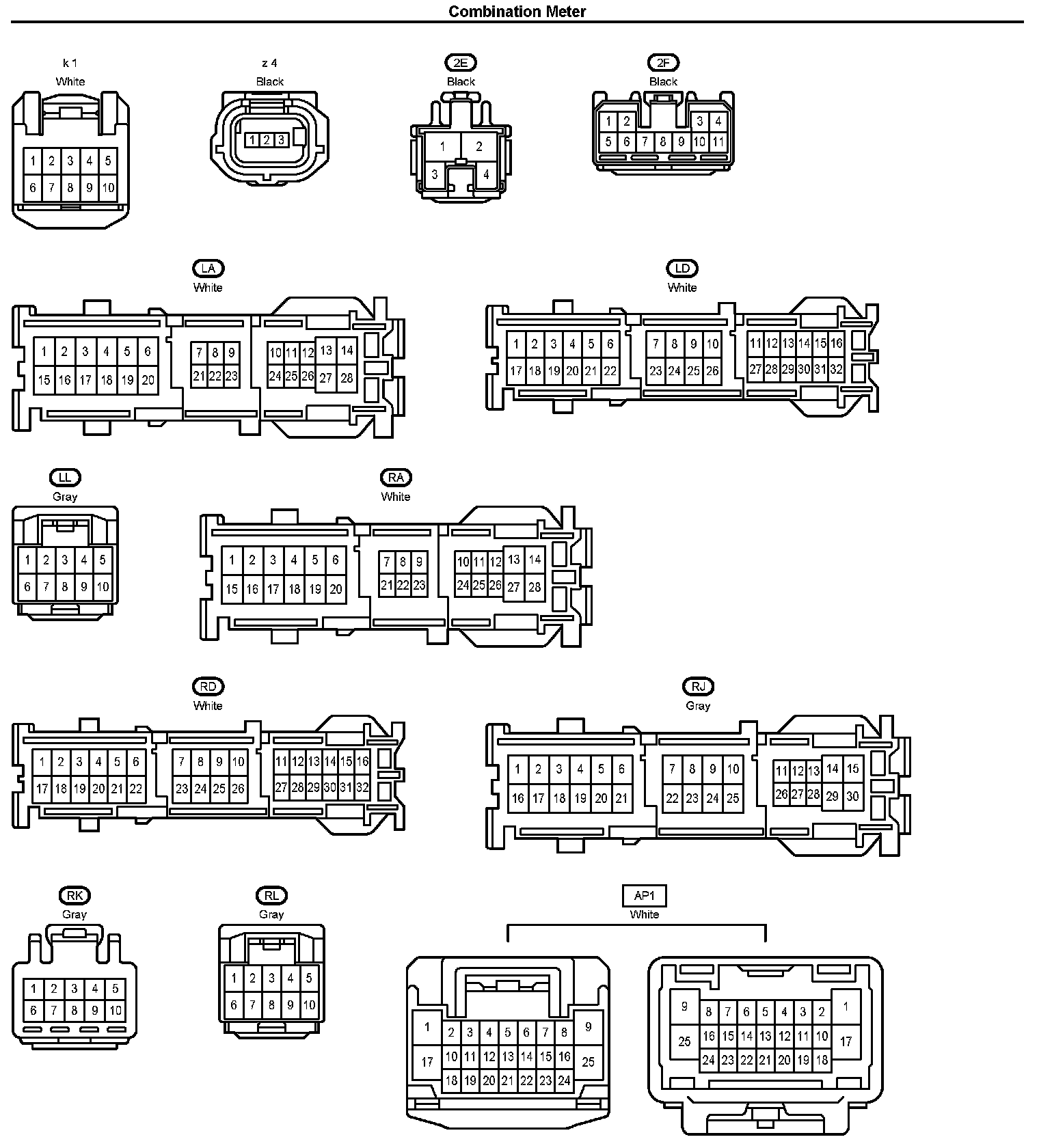

Connectors Part 2:

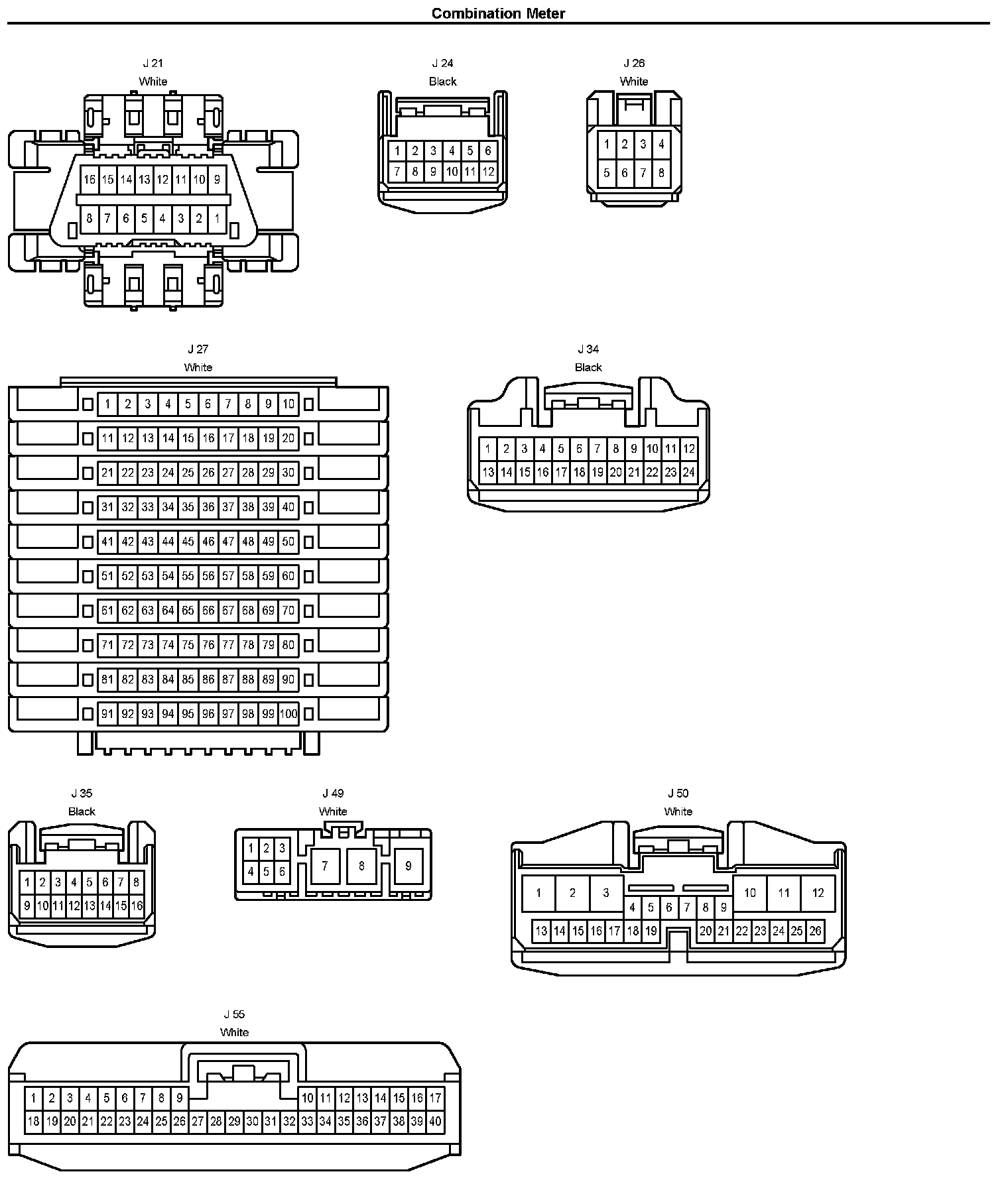

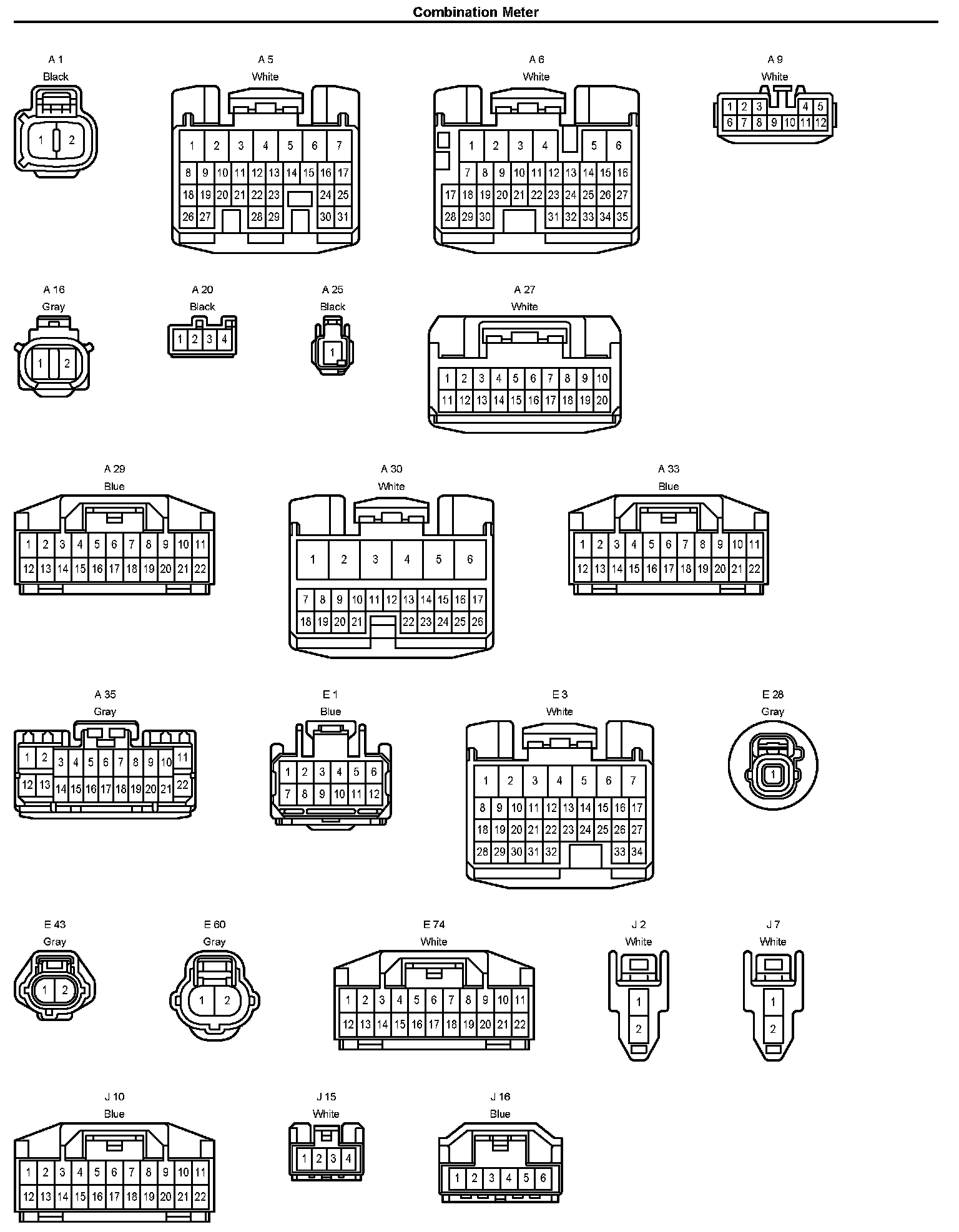

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
