System Diagram

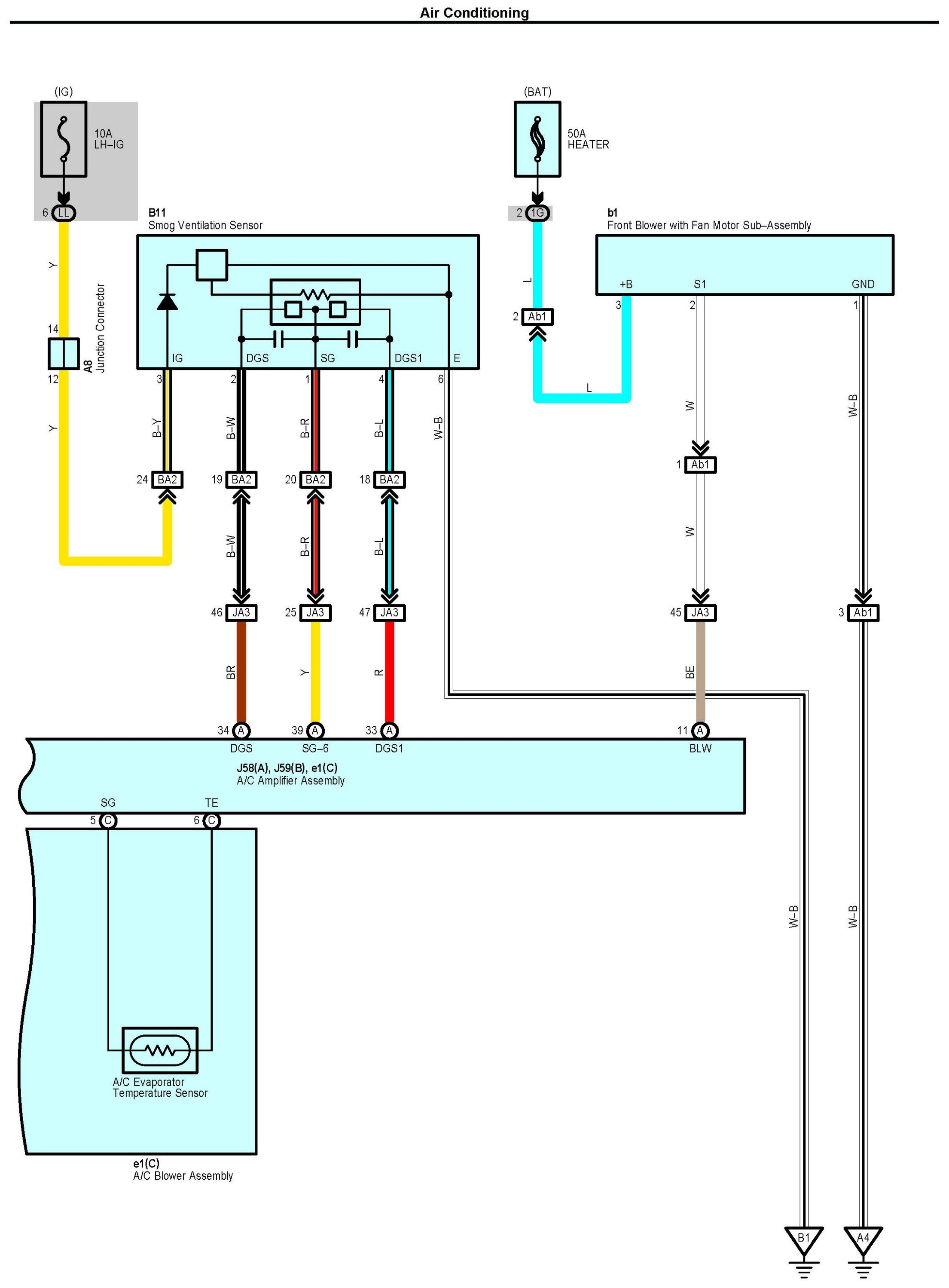

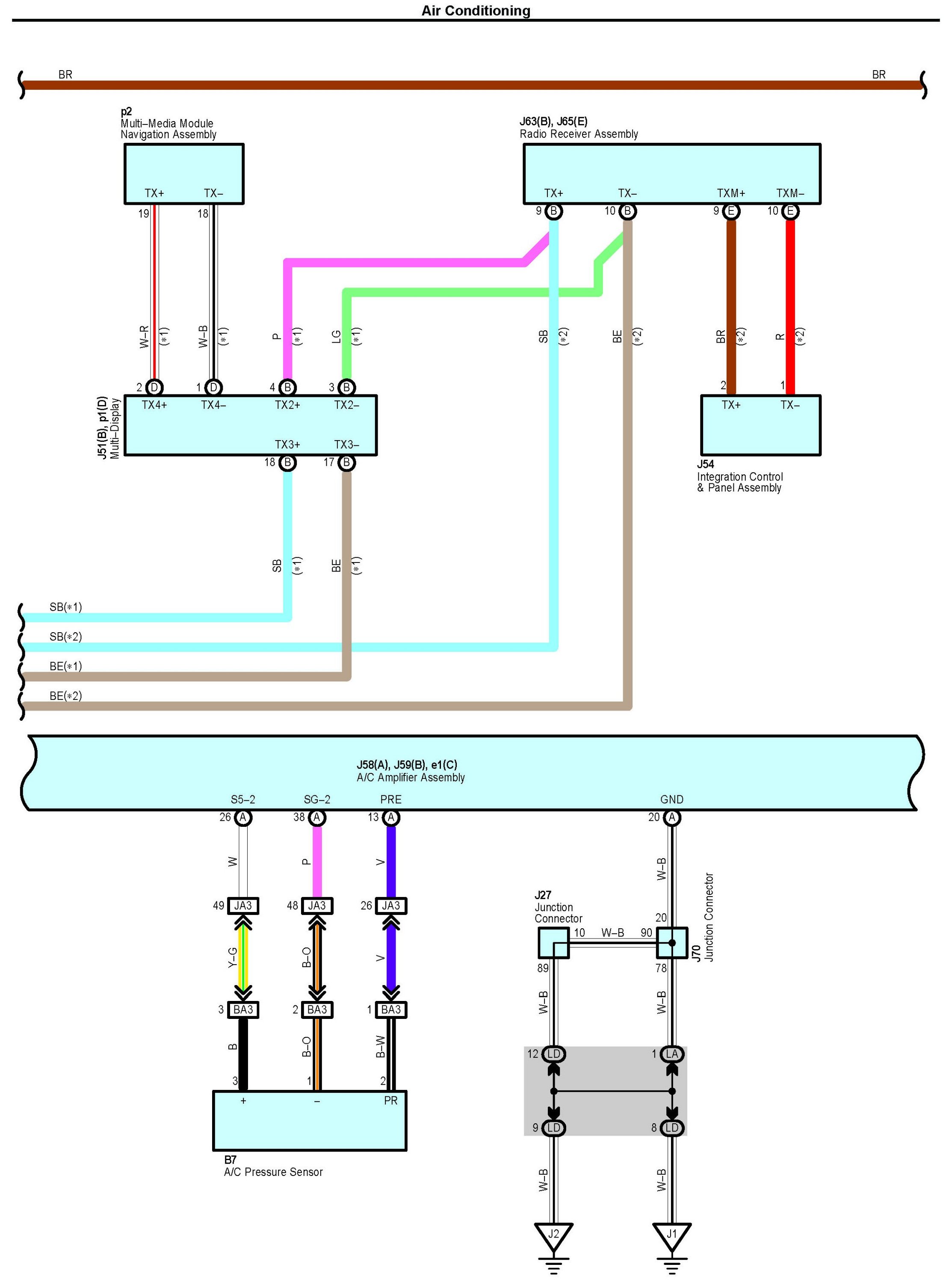

Air Conditioning Part 1:

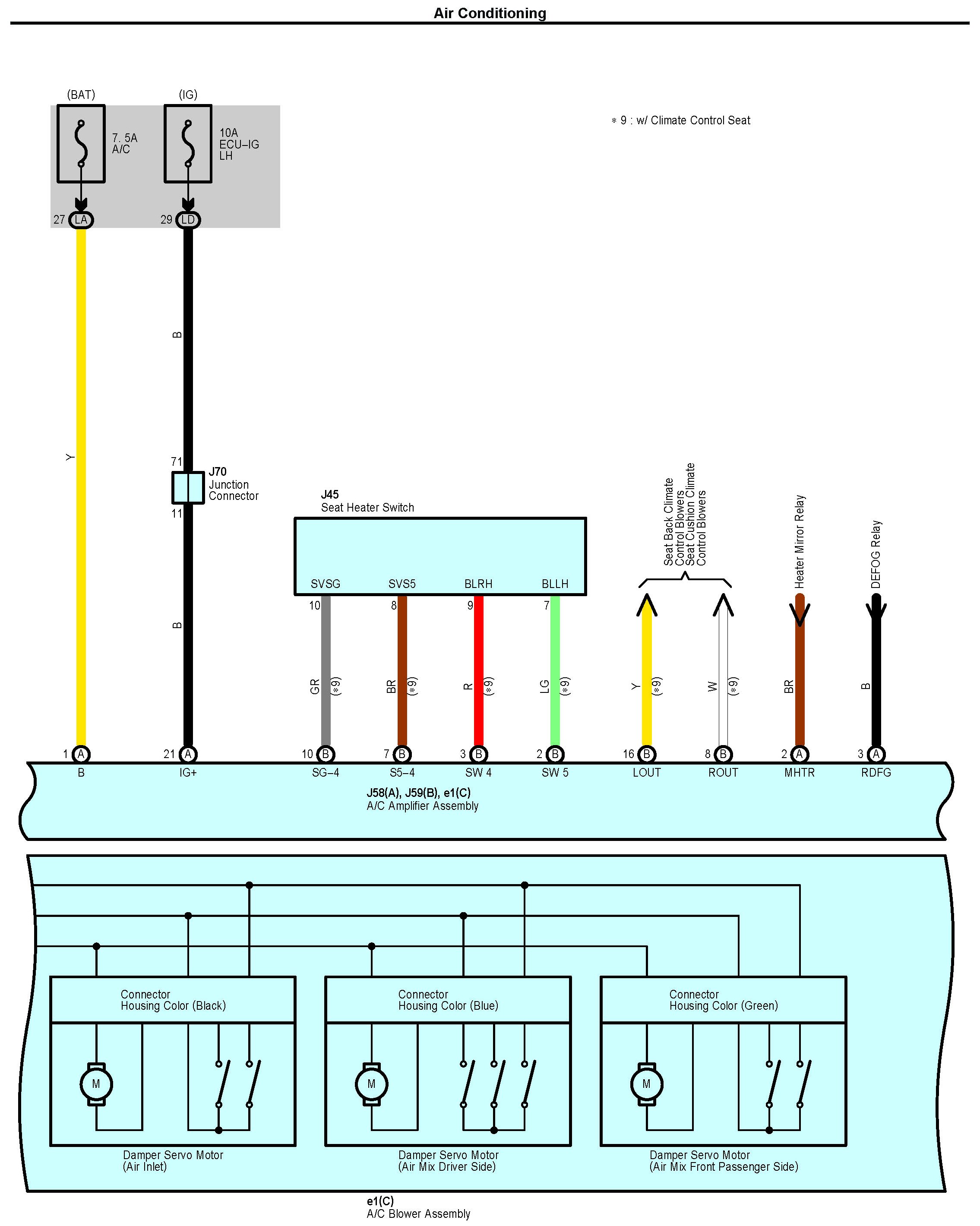

Air Conditioning Part 2:

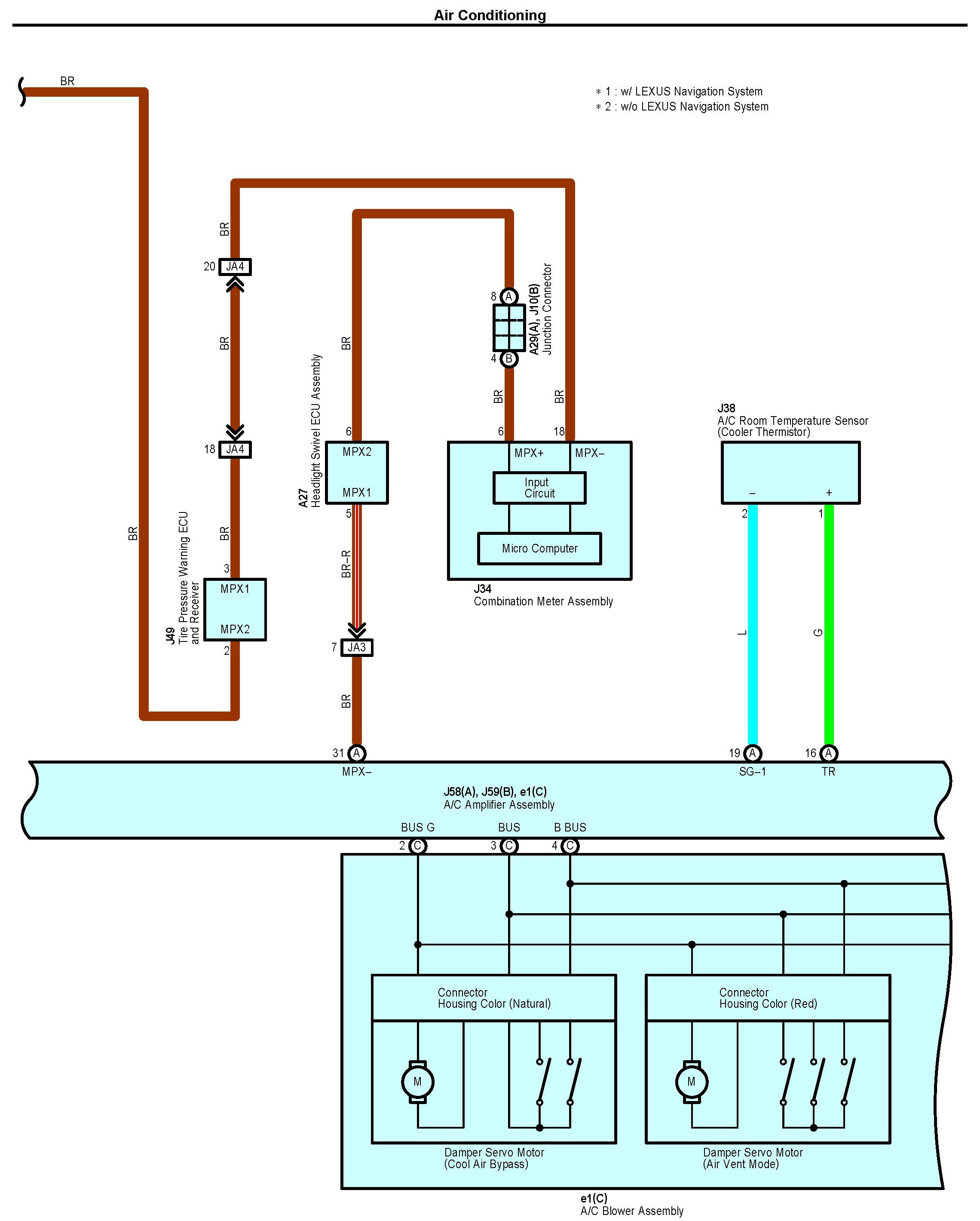

Air Conditioning Part 3:

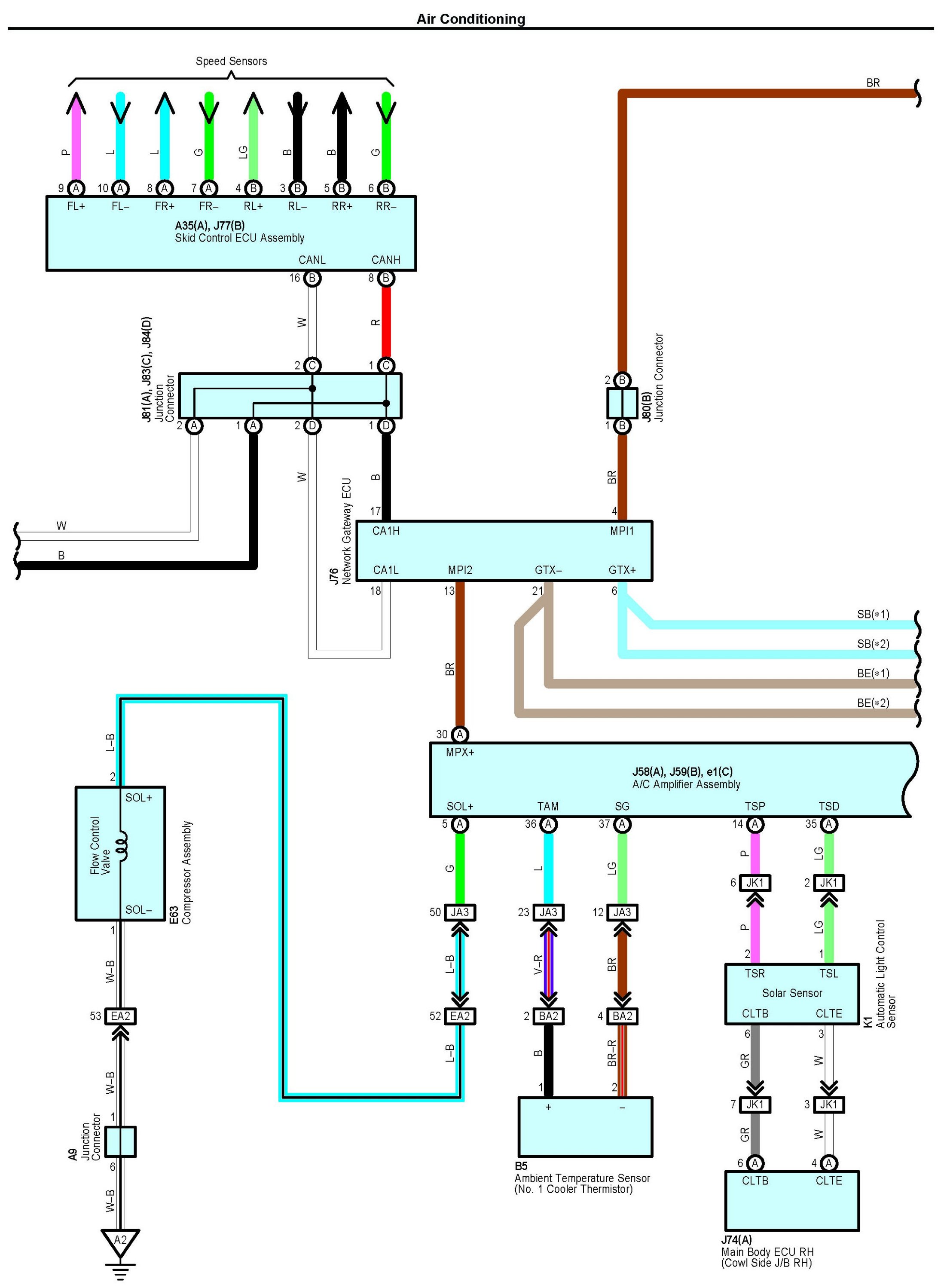

Air Conditioning Part 4:

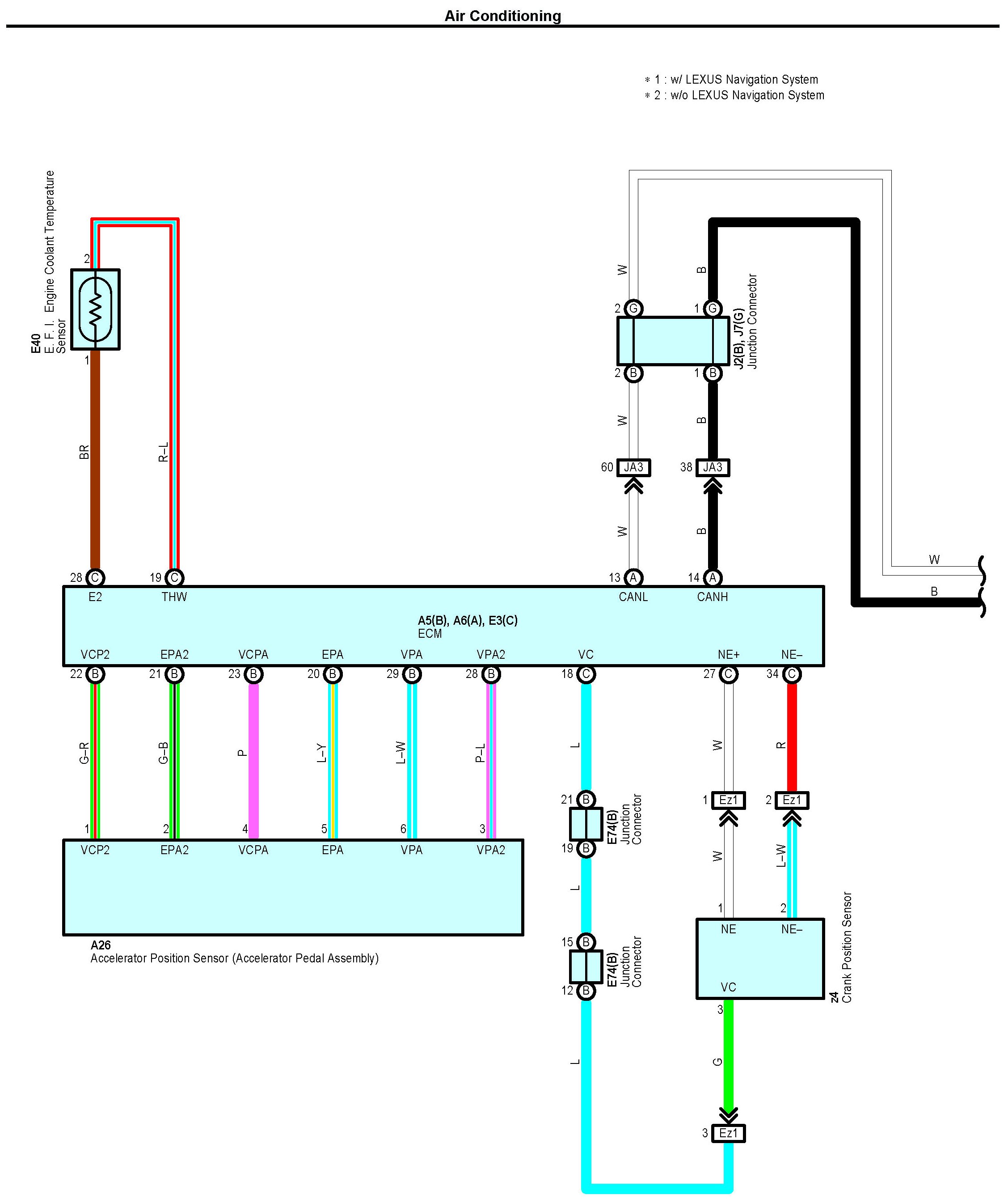

Air Conditioning Part 5:

Air Conditioning Part 6:

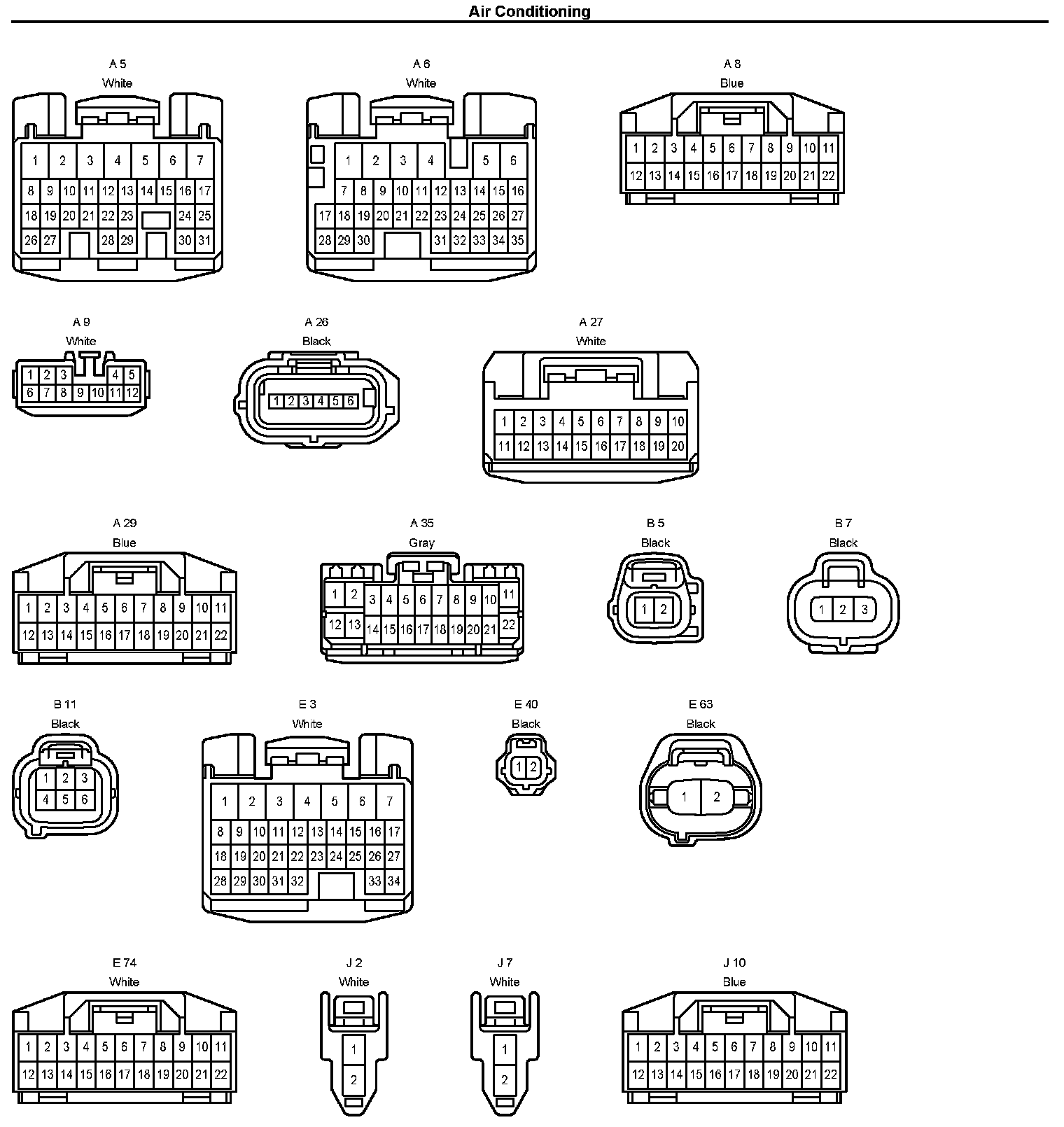

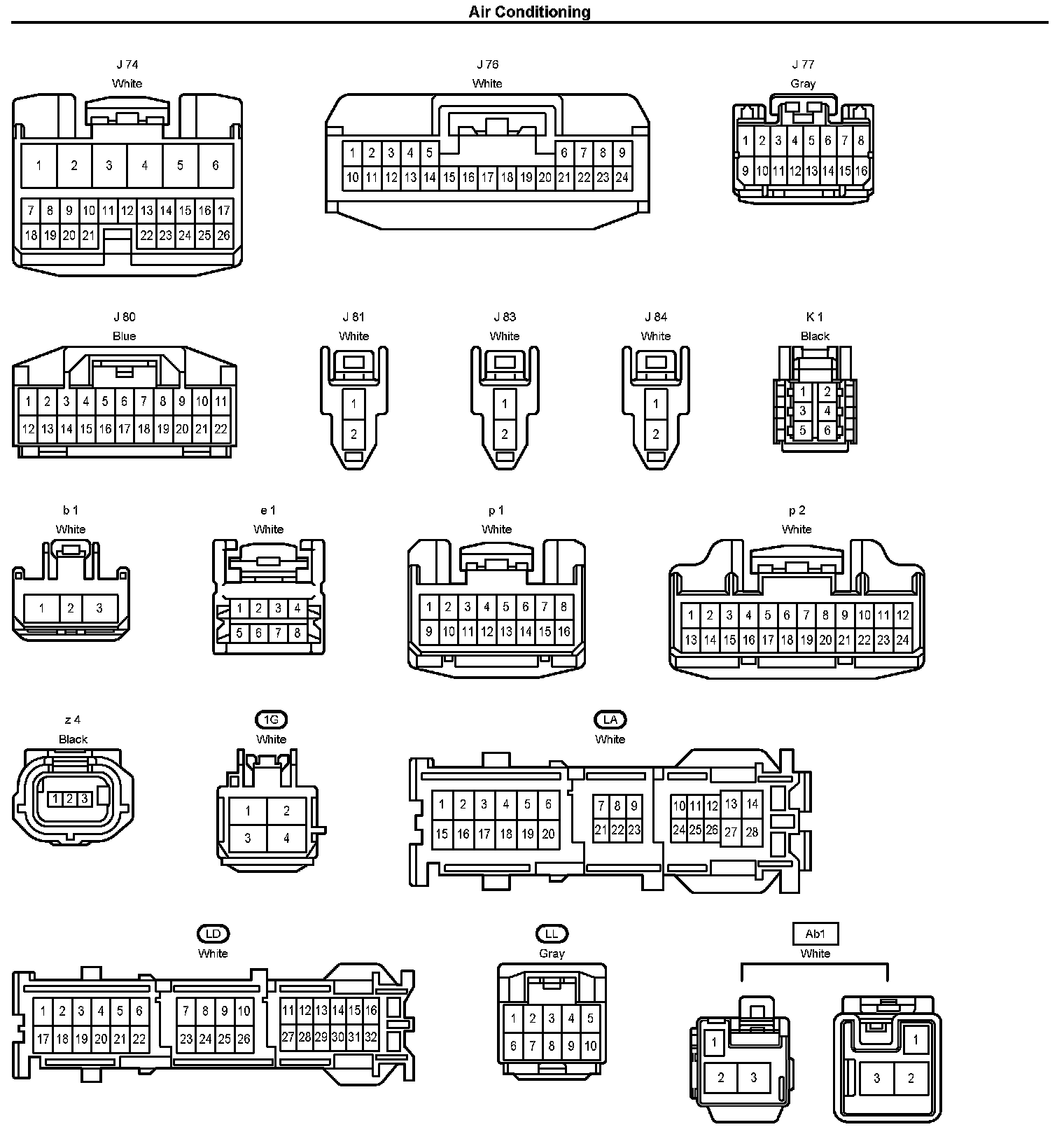

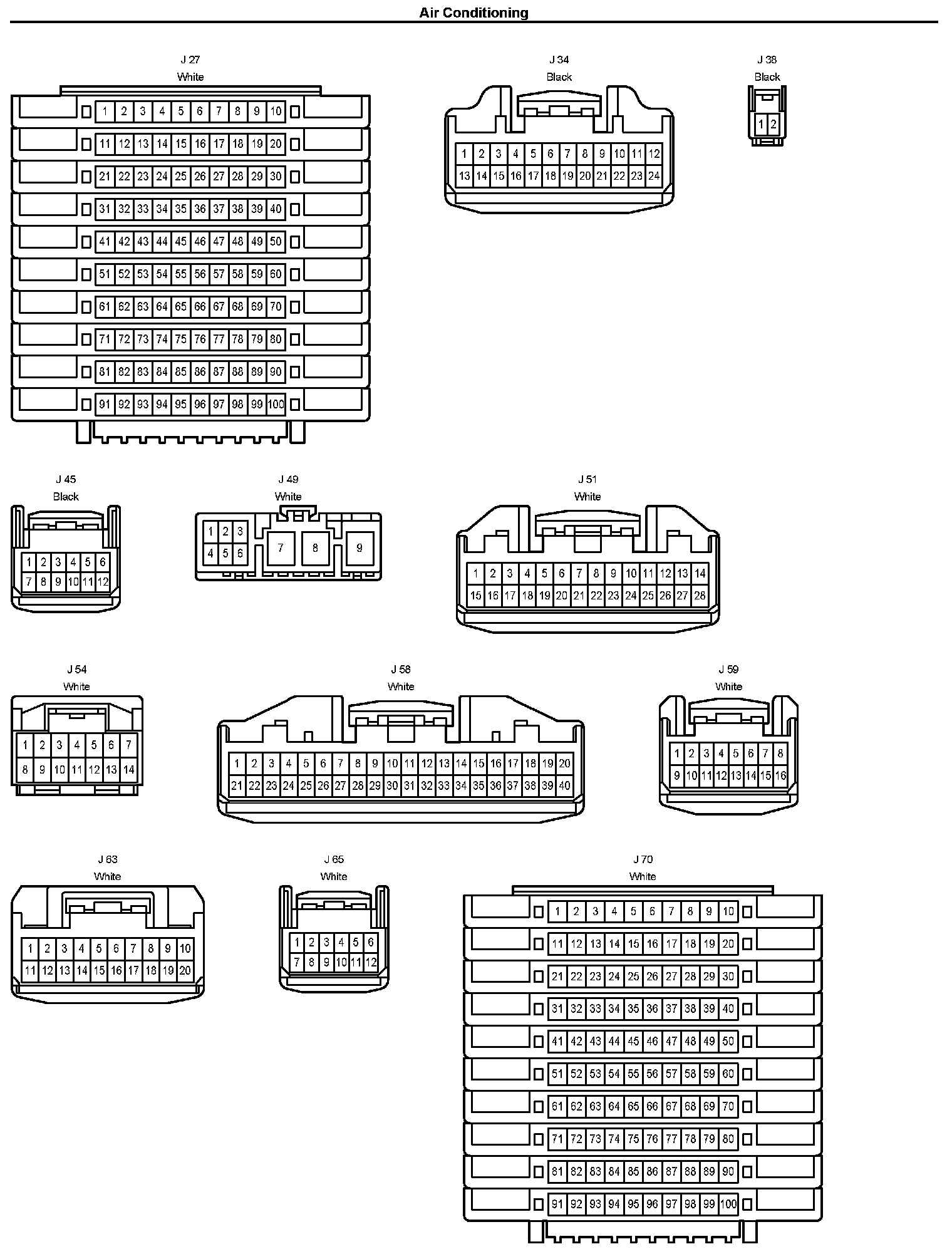

Connectors Part 1:

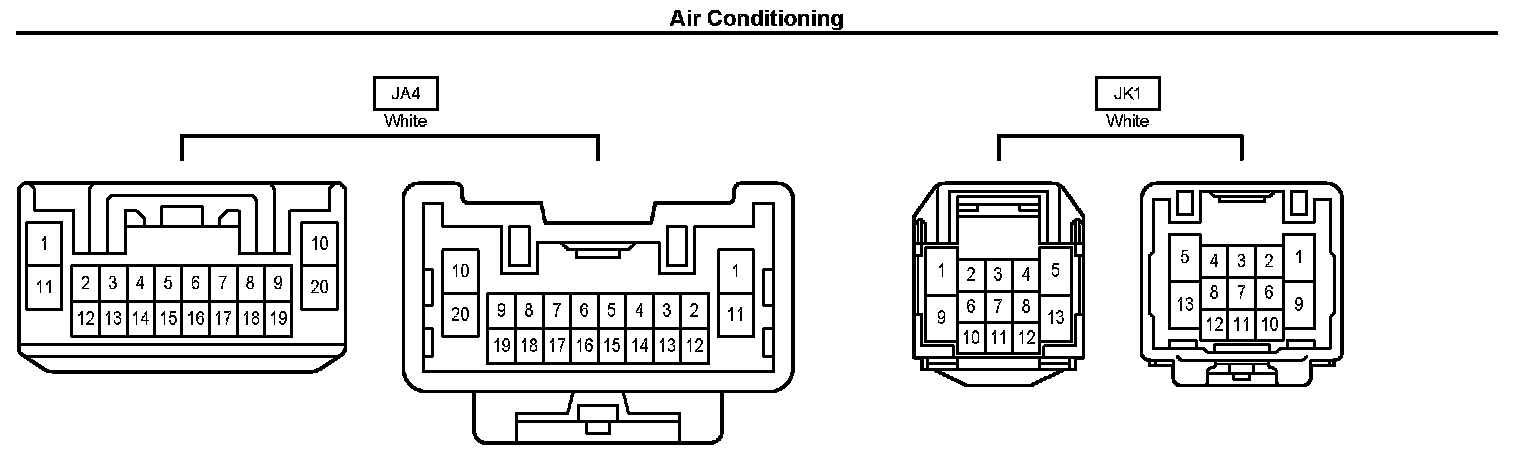

Connectors Part 2:

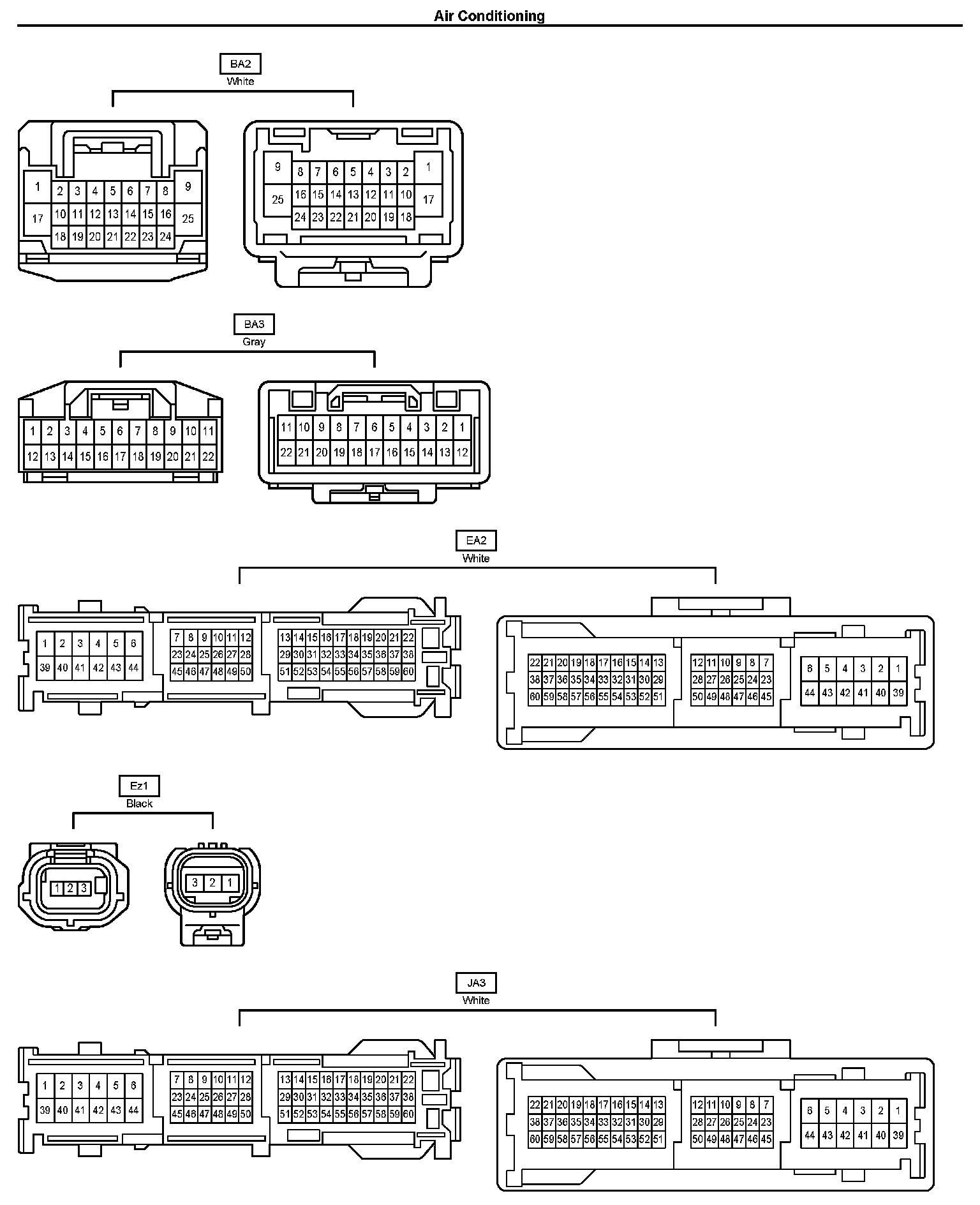

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
