Connectors

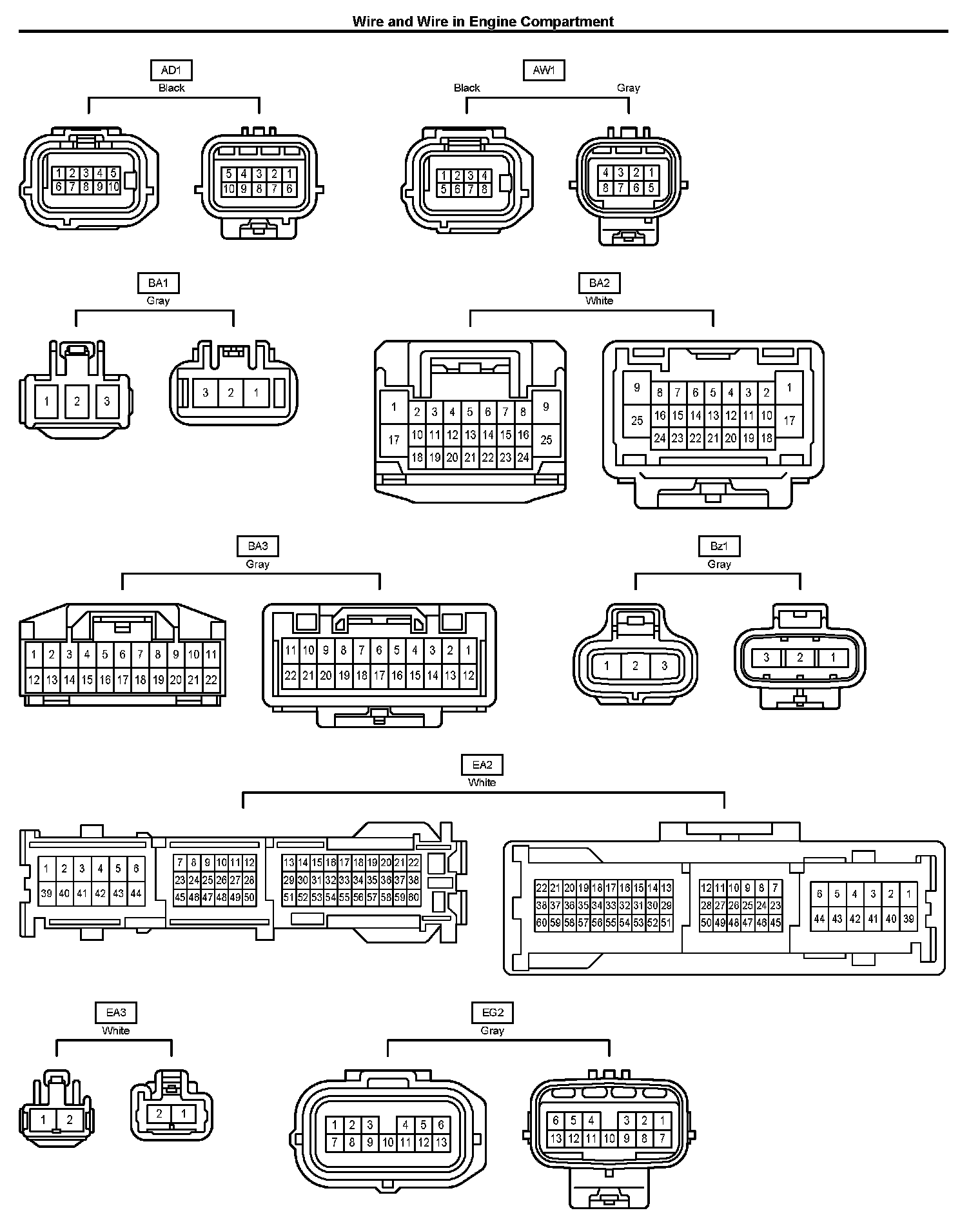

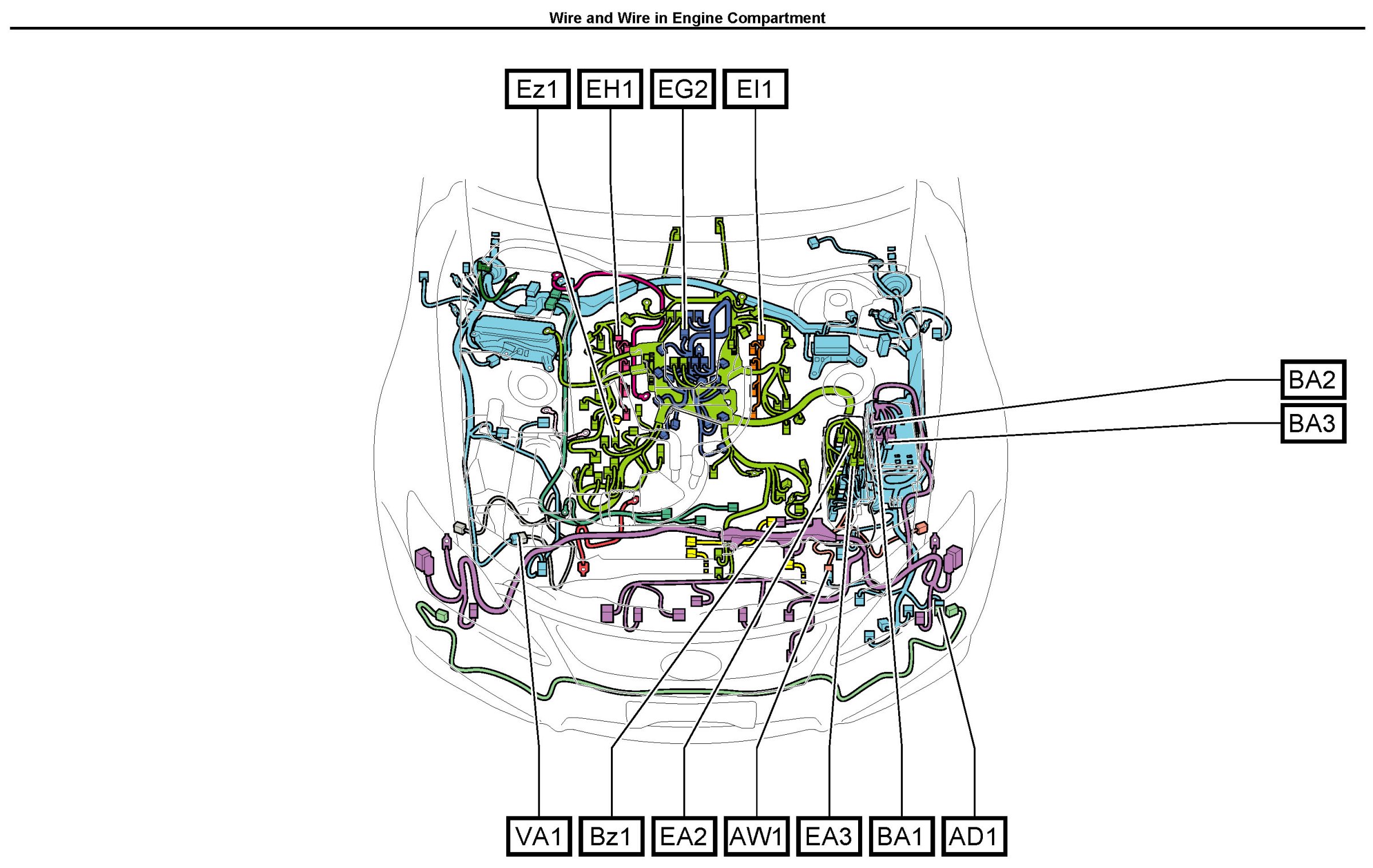

AD1-VA1:



AD1-EG2:

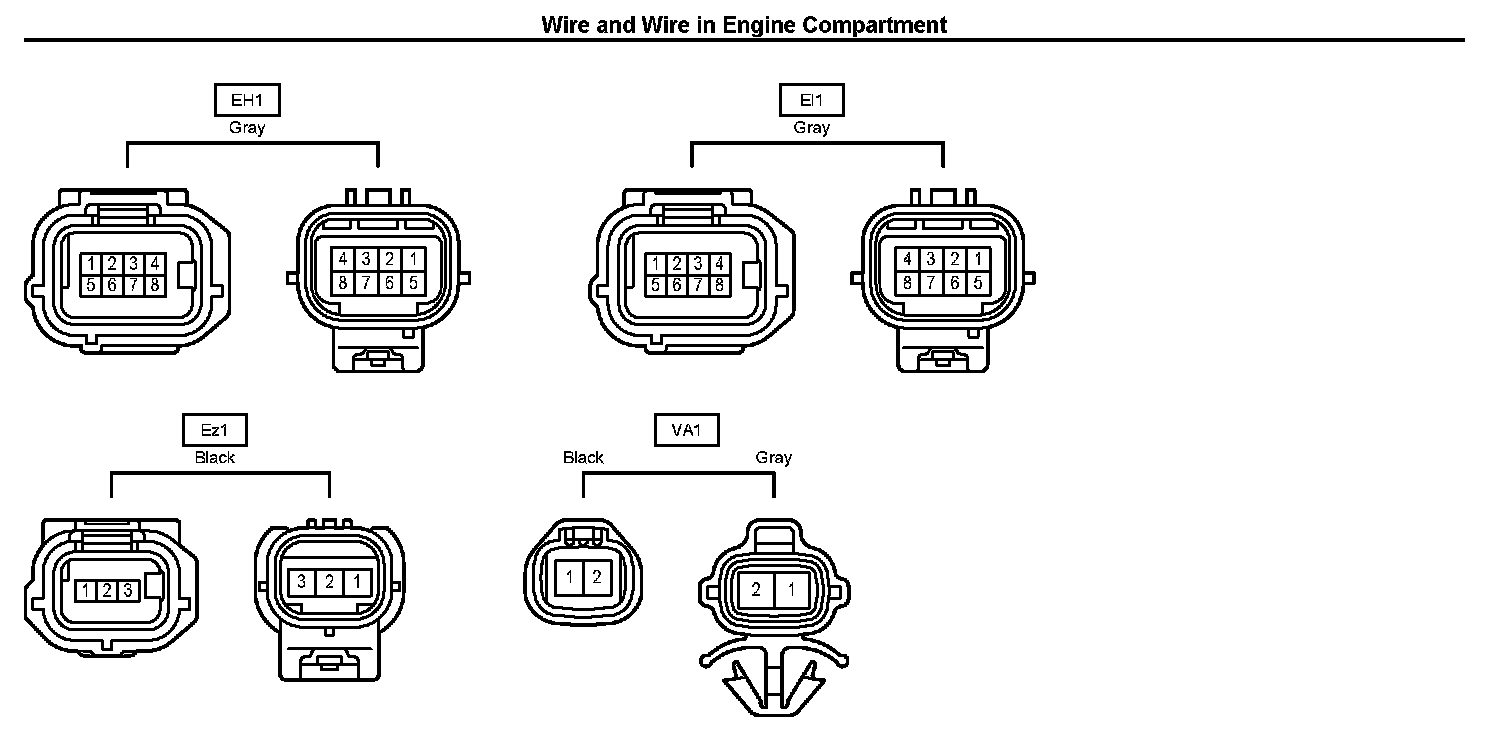

EH1-VA1:

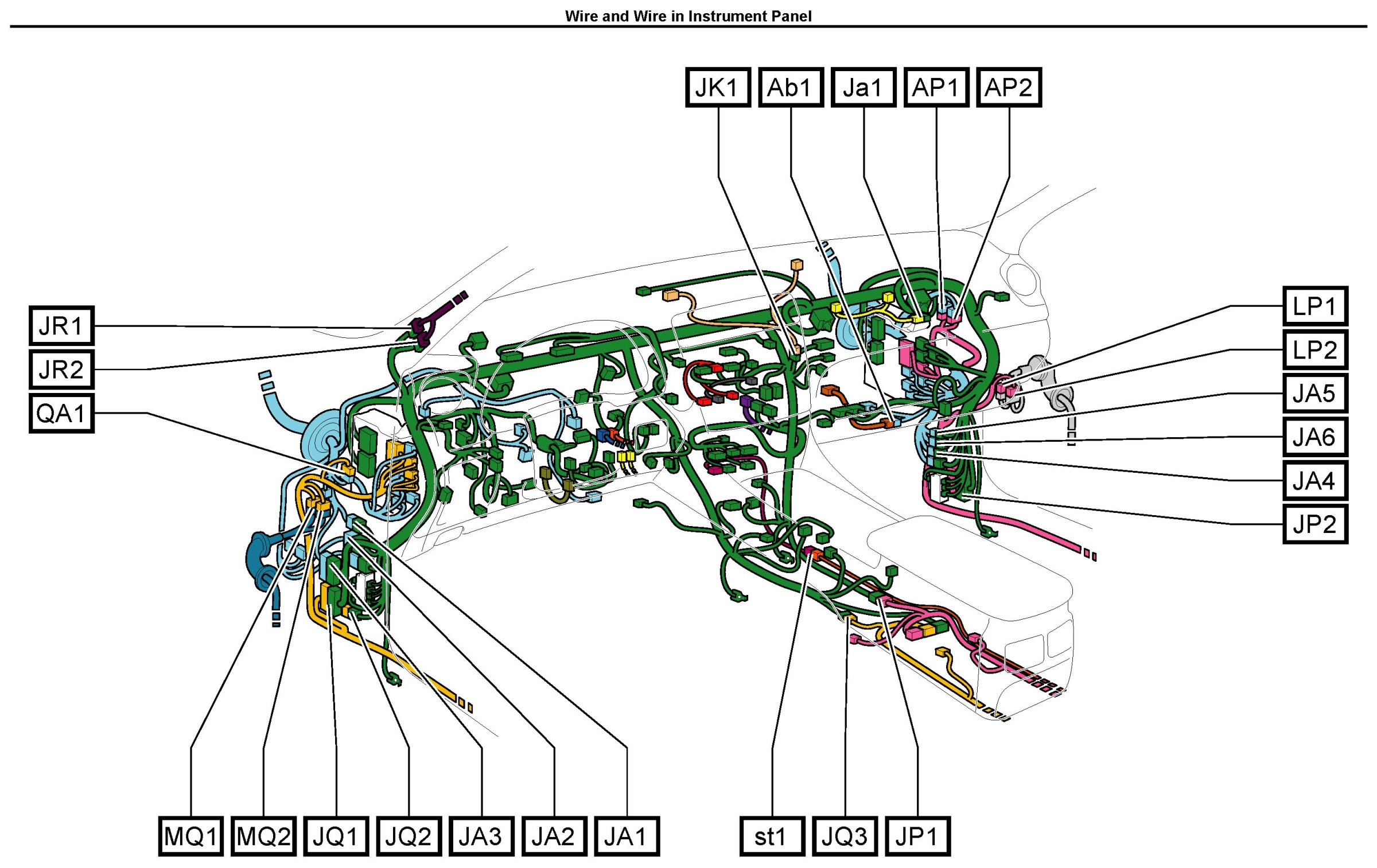

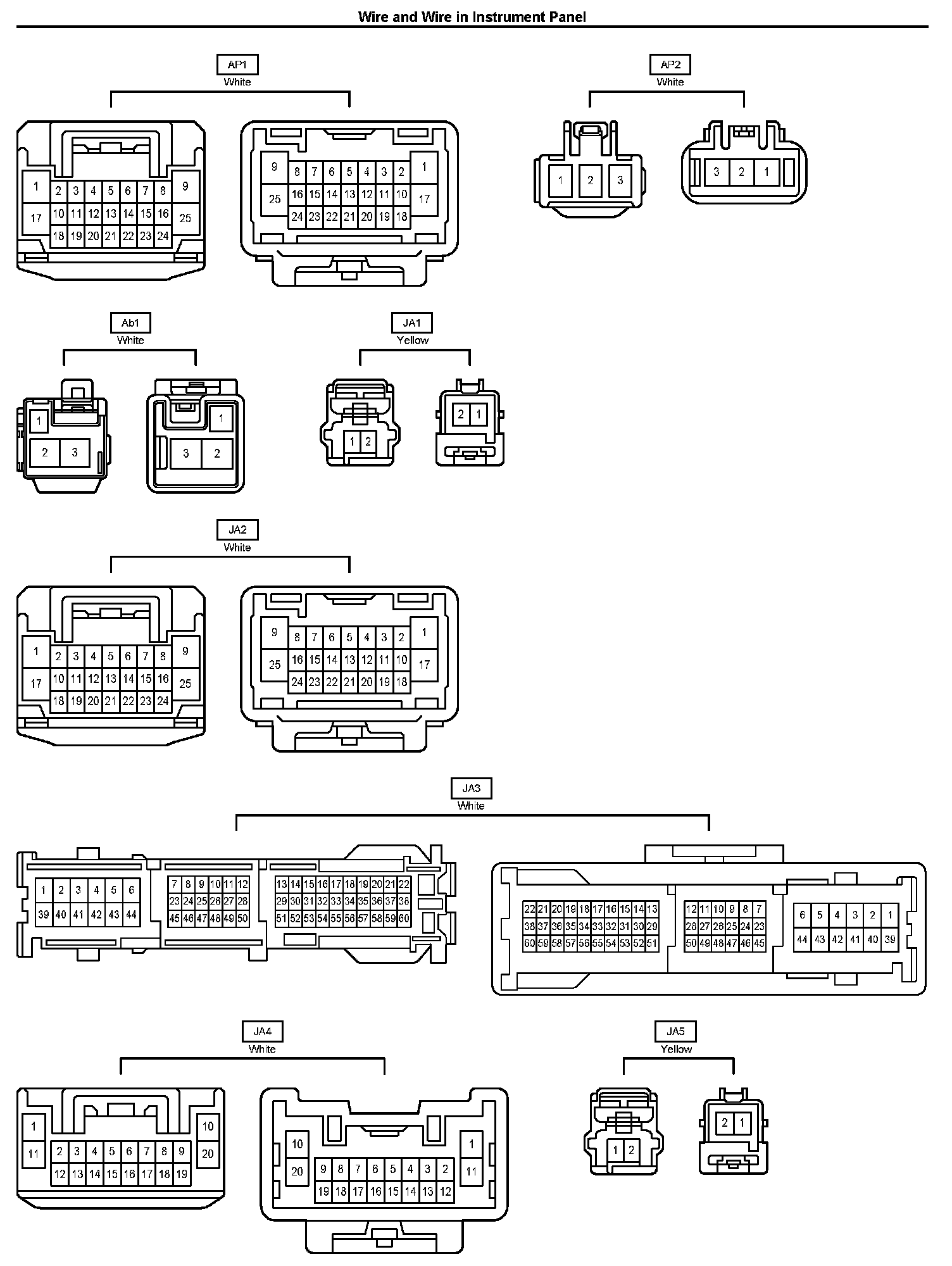

Ab1-st1:



Ab1-JA5:

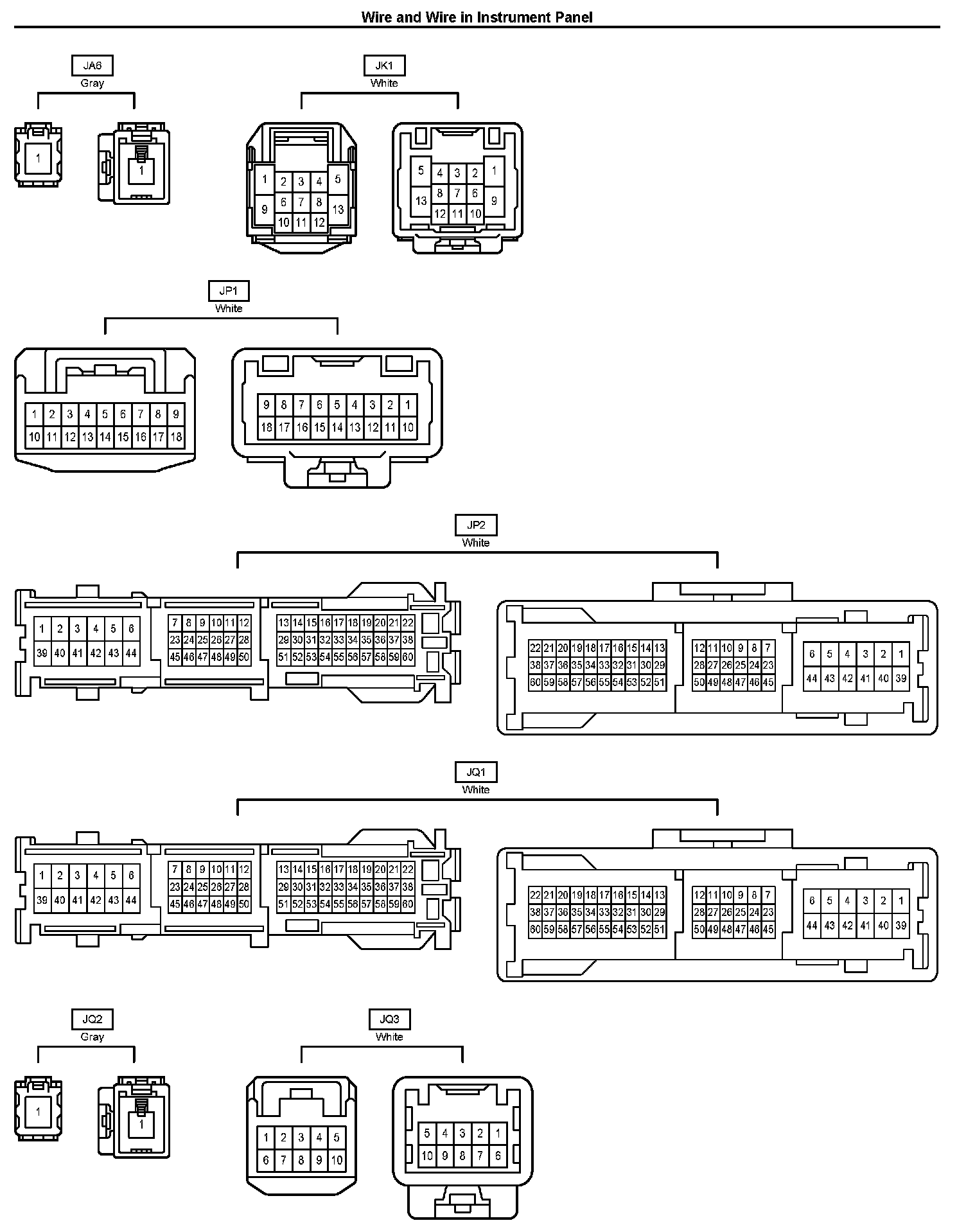

JA6-JQ3:

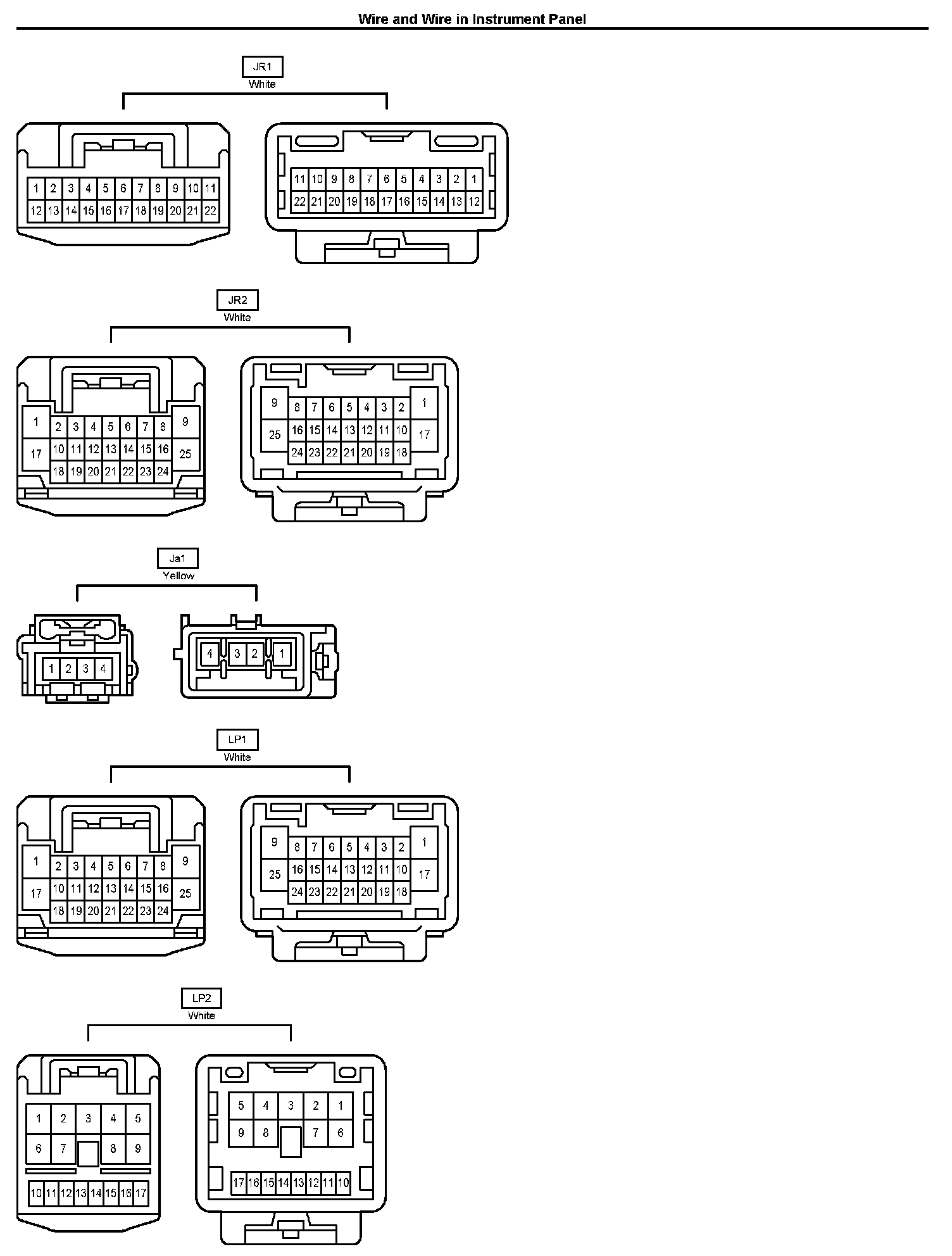

JR1-LP2:

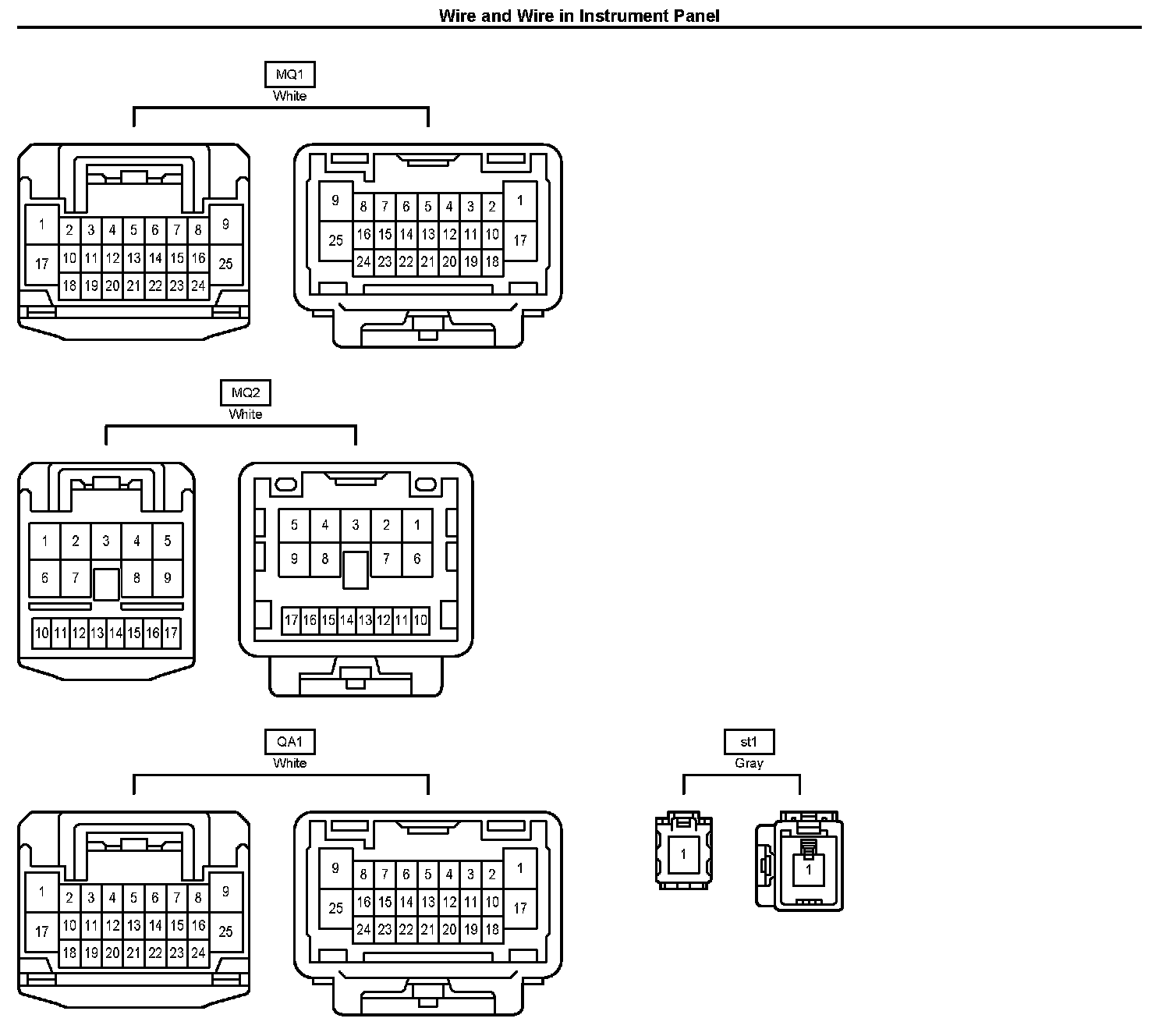

MQ1-st1:

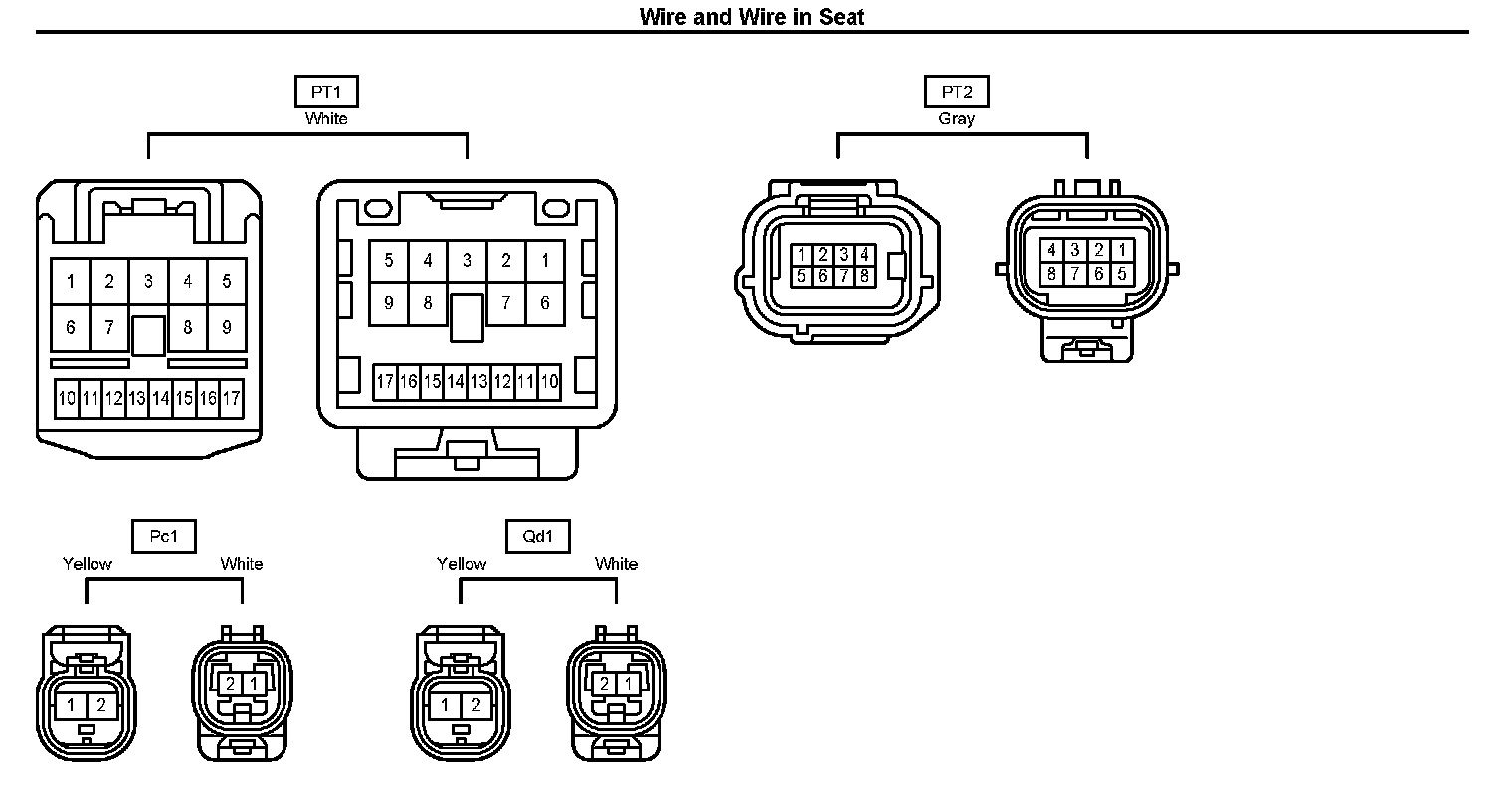

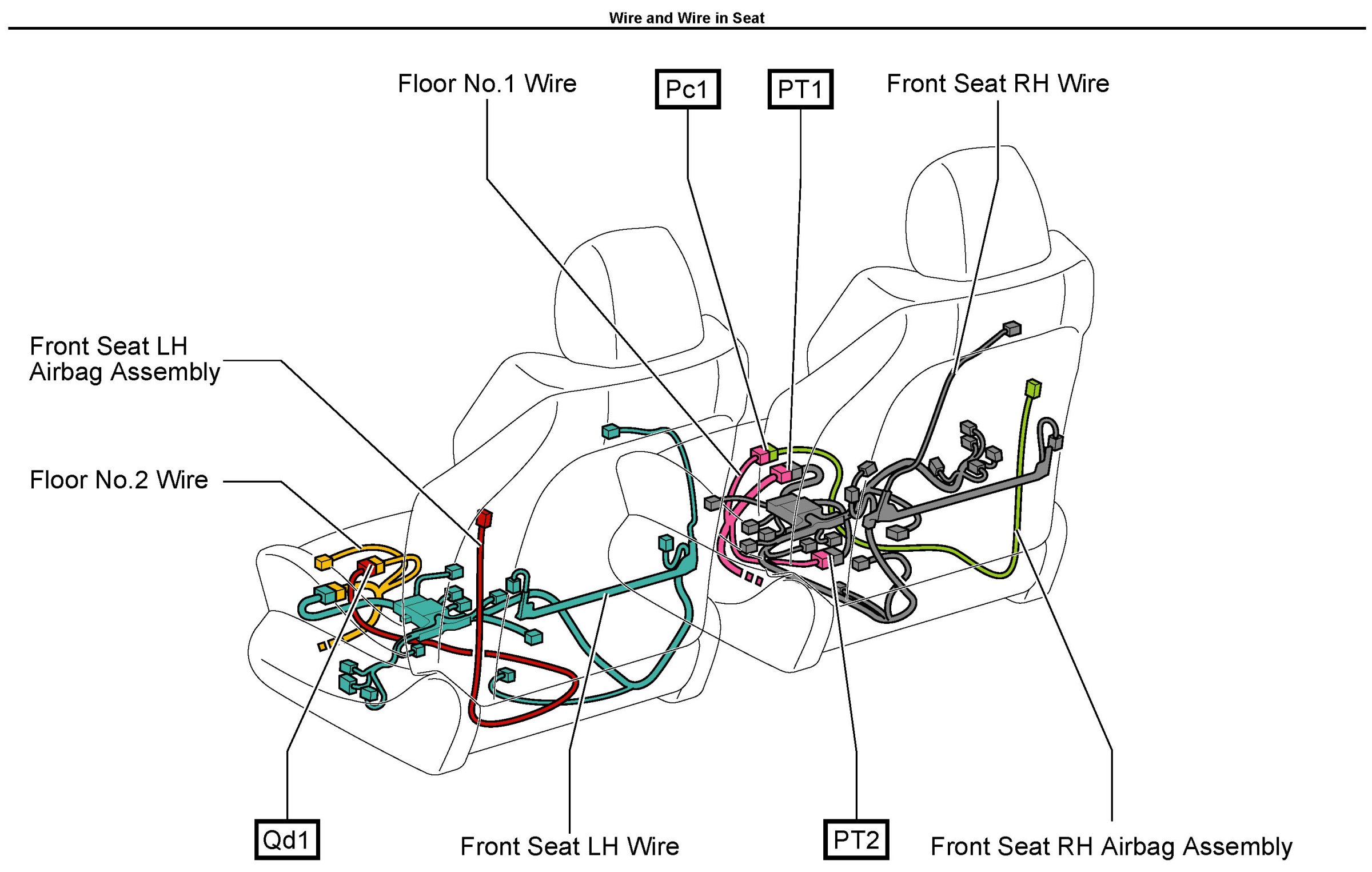

Pc1-Qd1:



Pc1-Qd1:
