Traction Control Switch: Testing and Inspection

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VSC OFF SWITCH: INSPECTION

INSPECTION

1. INSPECT VSC OFF SWITCH

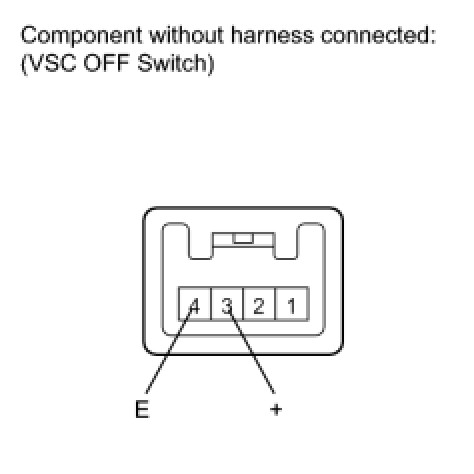

(a) disconnect the VSC off switch connector.

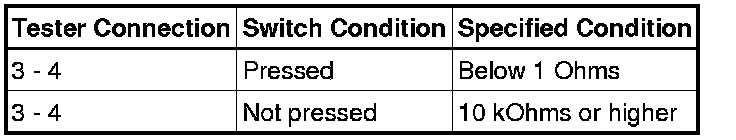

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the value is not as specified, replace the VSC off switch.
