Removal

BRAKE SYSTEM (OTHER): BRAKE PEDAL: REMOVAL

REMOVAL

1. REMOVE BRAKE BOOSTER ASSEMBLY
HINT: Refer to the instructions for Removal of the brake booster assembly Removal.

2. REMOVE STOP LIGHT SWITCH ASSEMBLY Removal
3. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

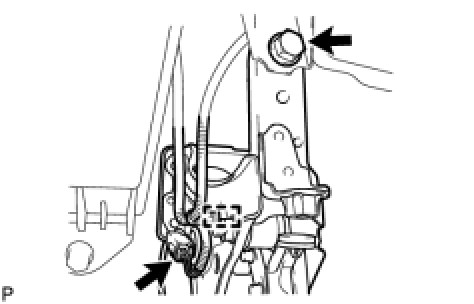

(a) Disconnect the connector and disengage the clamp.
(b) Remove the bolt and brake pedal support assembly from the body.
