Installation

DOOR / HATCH: FUEL LID OPENER SWITCH: INSTALLATION

INSTALLATION

1. INSTALL FUEL LID OPENER SWITCH

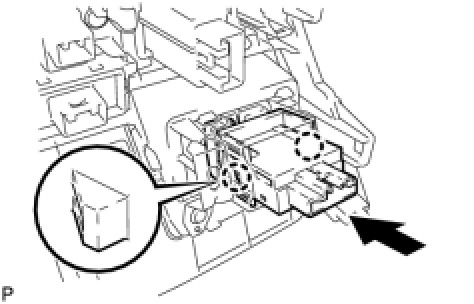

(a) Engage the 2 claws and install the fuel lid opener switch.
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
3. INSTALL SIDE INSTRUMENT PANEL LH Installation
4. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
5. INSTALL FRONT DOOR SCUFF PLATE LH Installation
