Climate Control Seat System

SEAT: CLIMATE CONTROL SEAT SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

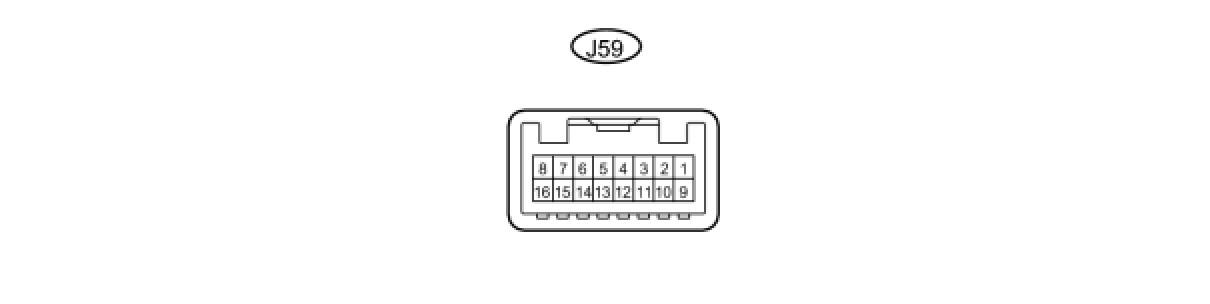

1. A/C AMPLIFIER ASSEMBLY

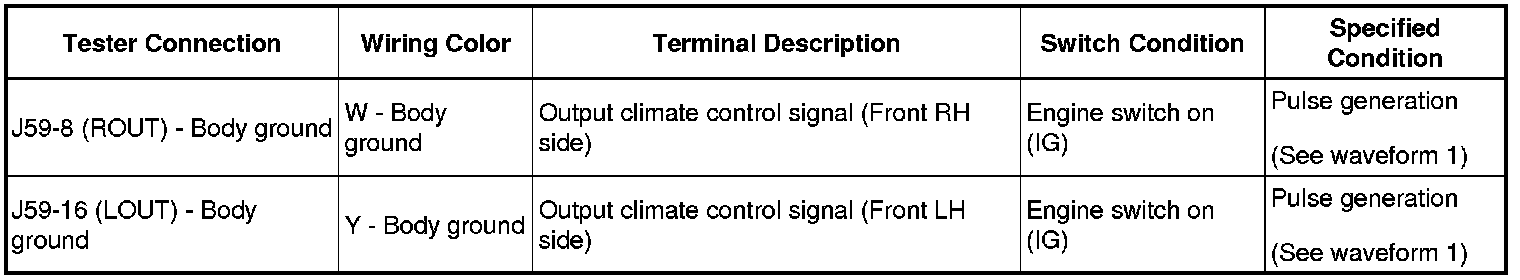

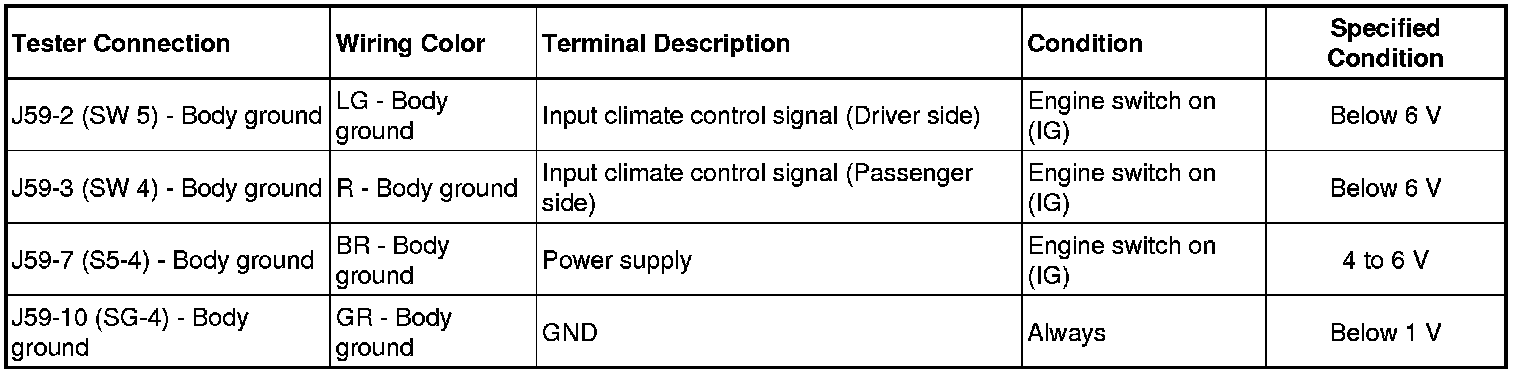

(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






Standard:

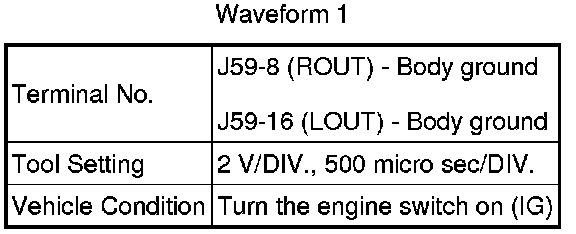

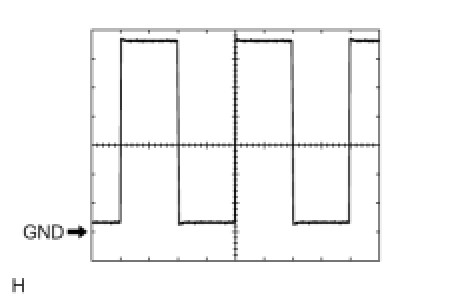

(1) Waveform (Reference): Using an oscilloscope:
