Removal

SEAT: SEAT HEATER SWITCH: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
2. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH Removal
3. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH Removal
4. REMOVE CONSOLE PANEL SUB-ASSEMBLY Removal
5. REMOVE SEAT HEATER SWITCH

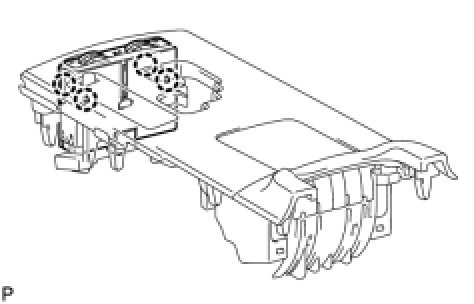

(a) Disengage the 4 claws and remove the seat heater switch.
