Removal

SEAT: FRONT SEAT CUSHION HEATER: REMOVAL

REMOVAL

1. REMOVE FRONT SEAT HEADREST ASSEMBLY
2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER Removal
3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER Removal
4. REMOVE REAR OUTER SEAT TRACK BRACKET COVER Removal
5. REMOVE REAR INNER SEAT TRACK BRACKET COVER Removal
6. REMOVE FRONT SEAT ASSEMBLY Removal
7. REMOVE FRONT SEAT INNER BELT ASSEMBLY Removal
8. REMOVE RECLINING POWER SEAT SWITCH KNOB Disassembly
9. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB Disassembly
10. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY Disassembly
11. REMOVE FRONT SEAT CUSHION COVER WITH PAD Disassembly
12. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

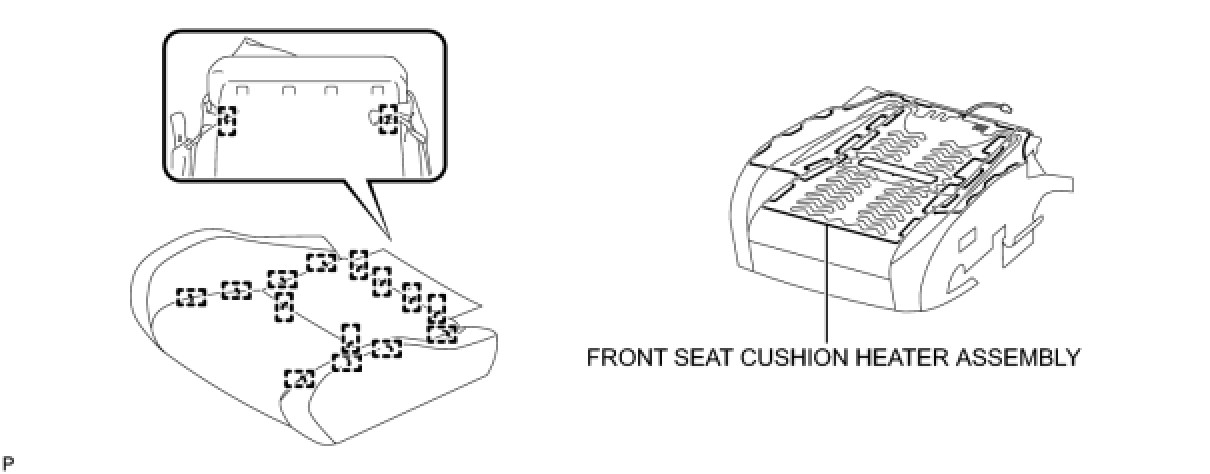

(a) Remove the 16 hog rings and the separate type front seat cushion cover from the seat cushion pad.
