Seat Temperature Element: Description and Operation

SEAT: SEAT HEATER SYSTEM:

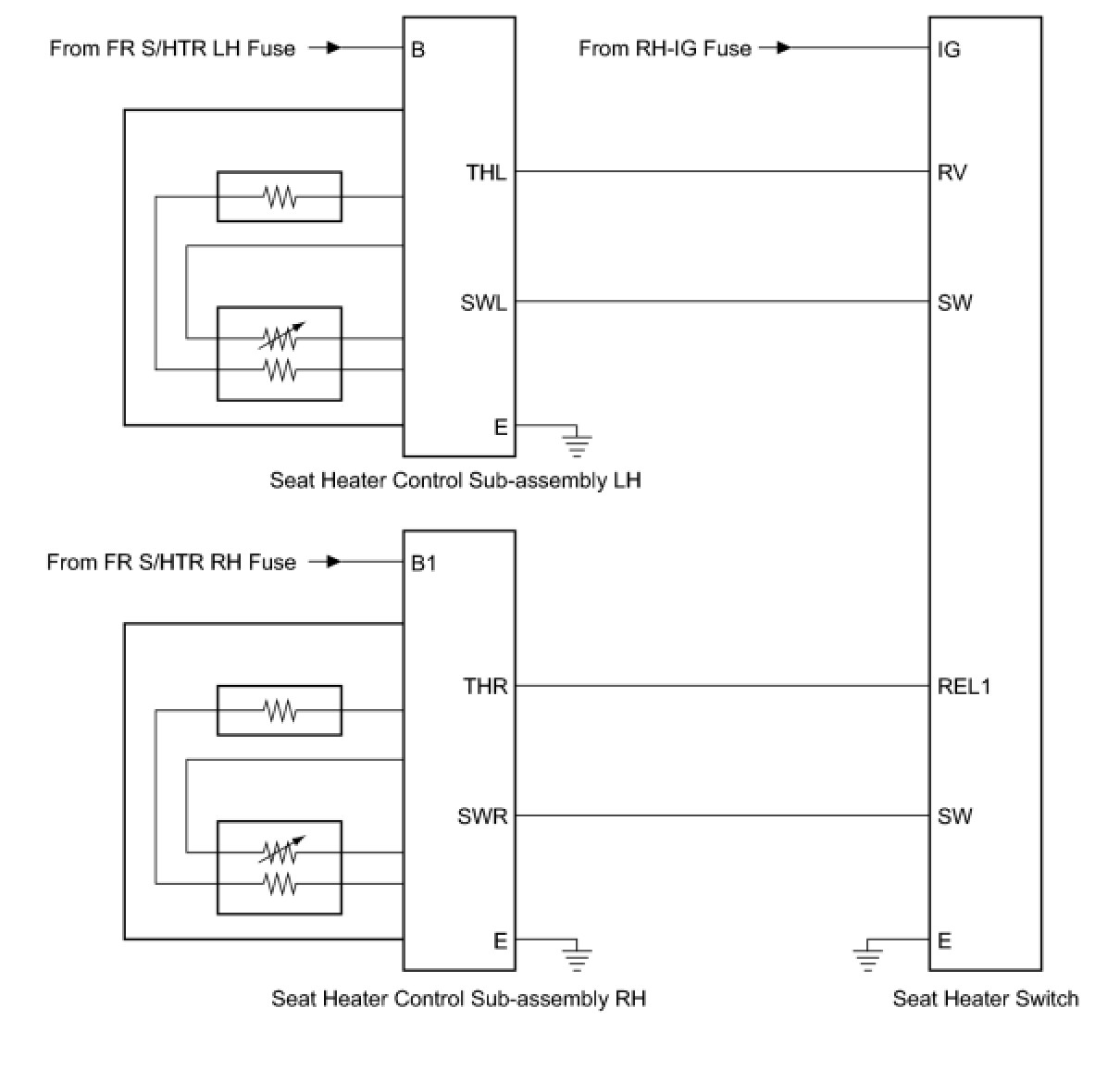

SYSTEM DIAGRAM





SYSTEM DESCRIPTION

1. GENERAL DESCRIPTION
(a) By operating the seat heater switch, which is located in the console box, the temperature can be controlled within the range of 30 to 40°C (86 to 104°F).
(b) The seat heater switch indicator light provides seat heater on/off status.
(c) The seat heaters of both seats are controlled by the seat heater controls. Which are located under the respective seat.
