Pinout Values and Diagnostic Parameters

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK OUTER MIRROR CONTROL ECU LH

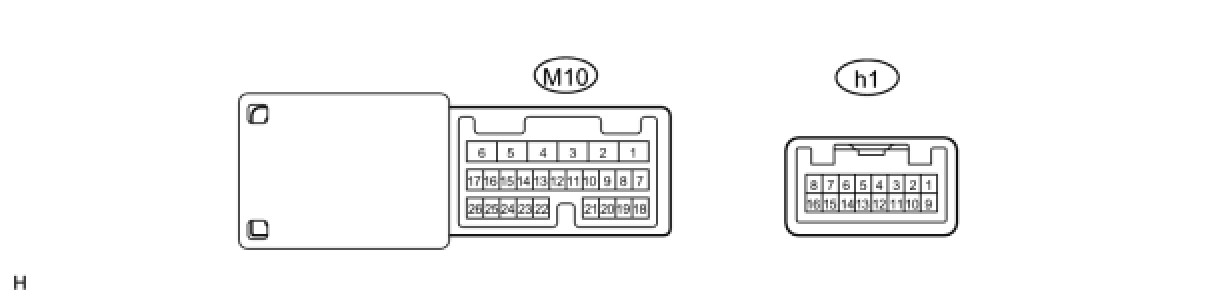

(a) Disconnect the M10 connector.

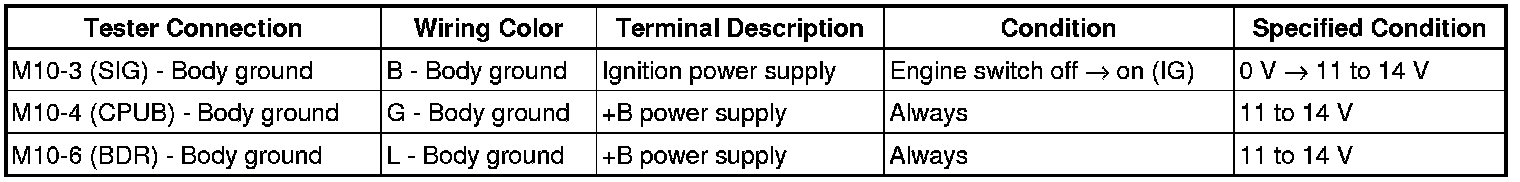

(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, there may be a malfunction on the wire harness side.
(d) Reconnect the M10 connector.
(e) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






2. CHECK OUTER MIRROR CONTROL ECU RH

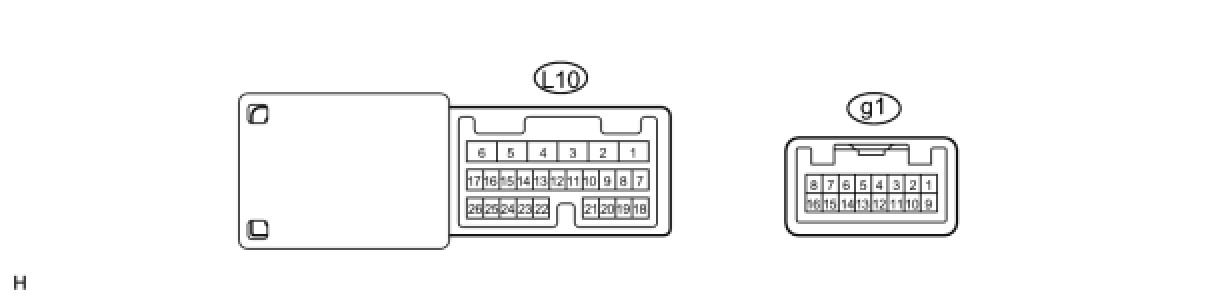

(a) Disconnect the L10 connector.

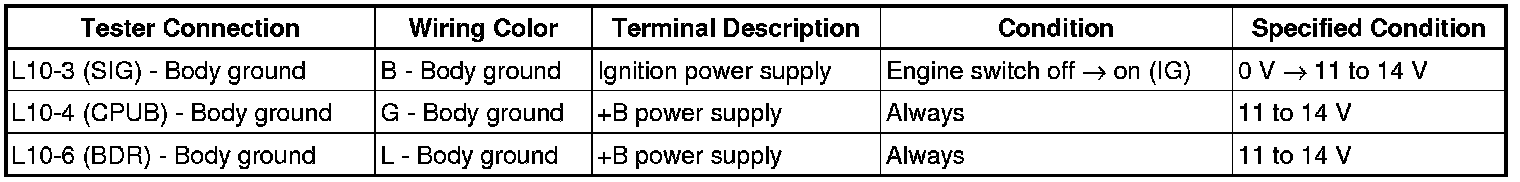

(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, there may be a malfunction on the wire harness side.
(d) Reconnect the L10 connector.

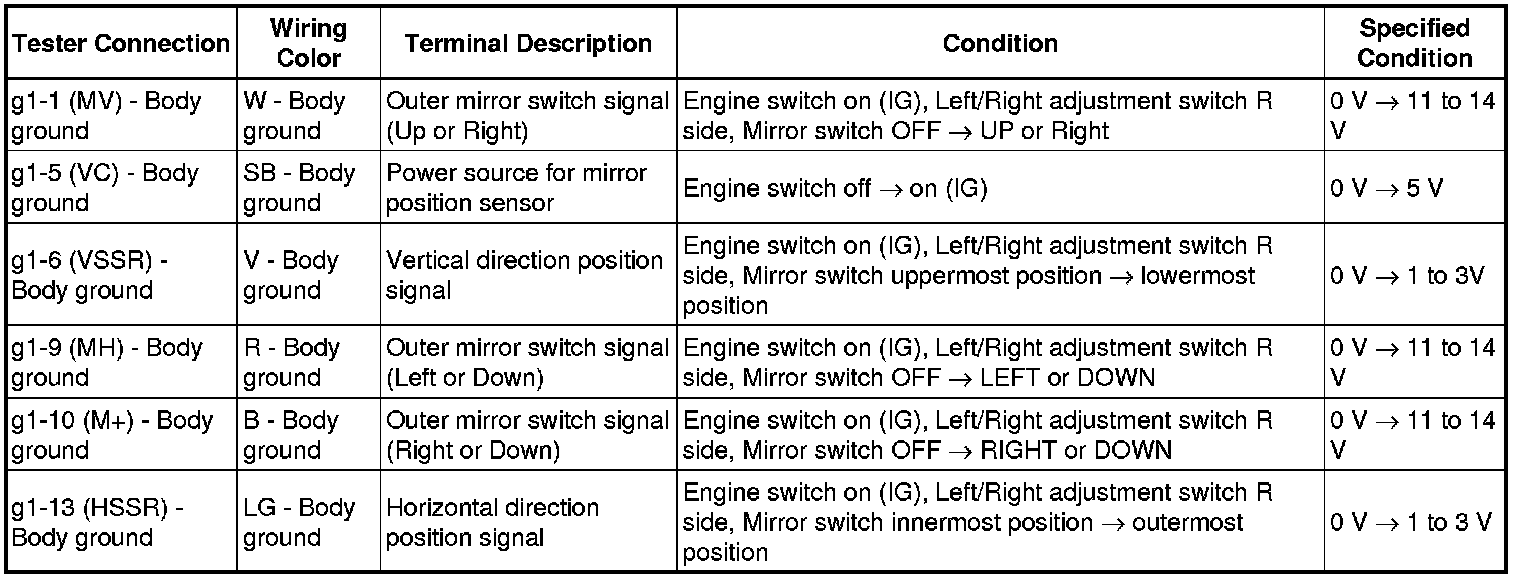

(e) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
