MIRROR (EXT): OUTER REAR VIEW MIRROR GLASS: REMOVAL

REMOVAL

1. REMOVE OUTER REAR VIEW MIRROR GLASS





(a) Push the upper part of the mirror surface and tilt it.

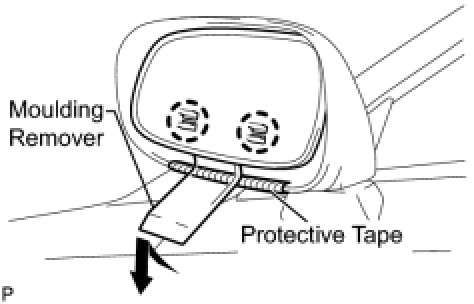

(b) Using a moulding remover, disengage the 2 claws at the lower part of the outer rear view mirror, and separate the outer rear view mirror glass.

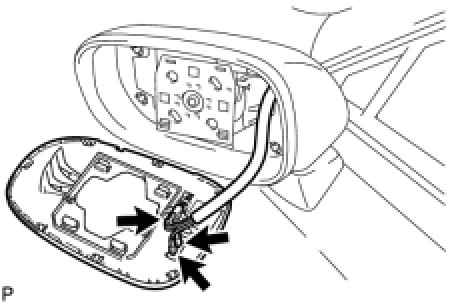

(c) Disconnect the connector and remove the outer rear view mirror glass.
