MIRROR (EXT): OUTER REAR VIEW MIRROR GLASS: INSTALLATION

INSTALLATION

1. INSTALL OUTER REAR VIEW MIRROR GLASS





(a) Connect the connector.

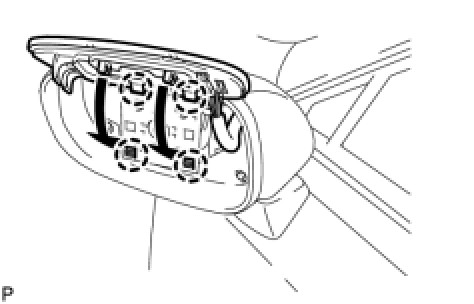

(b) Engage the 2 claws on the upper part of the outer rear view mirror glass to the outer rear view mirror.
(c) Engage the 2 claws on the lower part of the outer rear view mirror glass to the outer rear view mirror as shown in the illustration.
