Removal

DOOR LOCK: DOOR CONTROL SWITCH: REMOVAL

REMOVAL

1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL





(a) Using a moulding remover, disengage the 3 claws and 2 clips, and remove the power window regulator switch assembly with front door armrest base panel.
(b) Disconnect the connector.
2. REMOVE DOOR CONTROL SWITCH ASSEMBLY

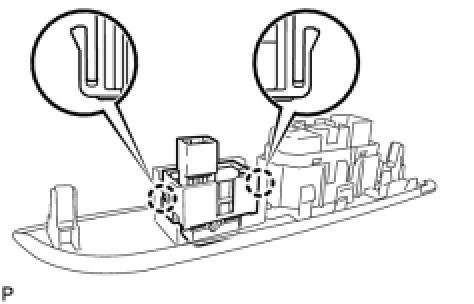

(a) Disengage the 2 claws and remove the door control switch assembly.
