Rear Door Lock

DOOR LOCK: REAR DOOR LOCK: INSPECTION

INSPECTION

1. INSPECT REAR DOOR LOCK ASSEMBLY LH
(a) Check the operation of the door lock motor.

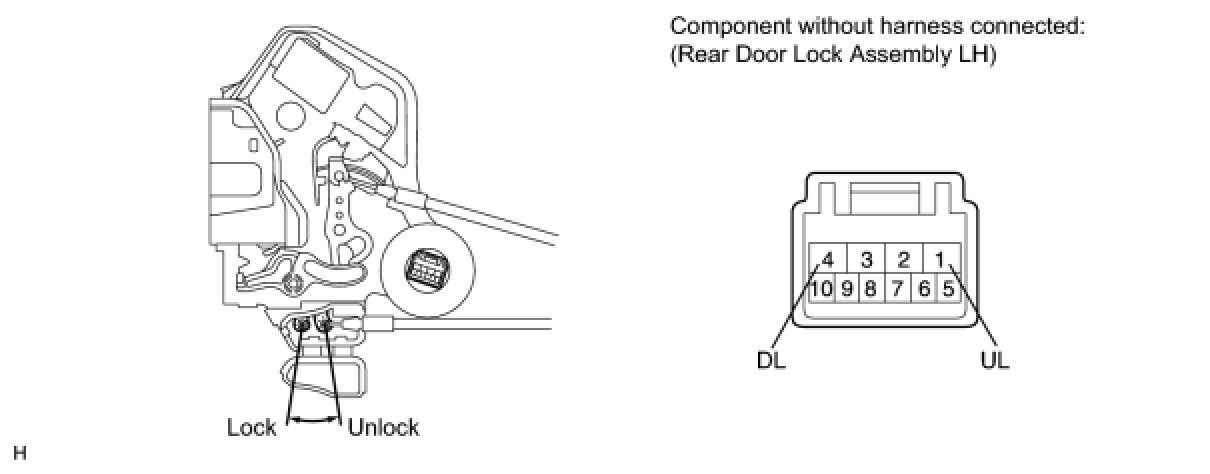

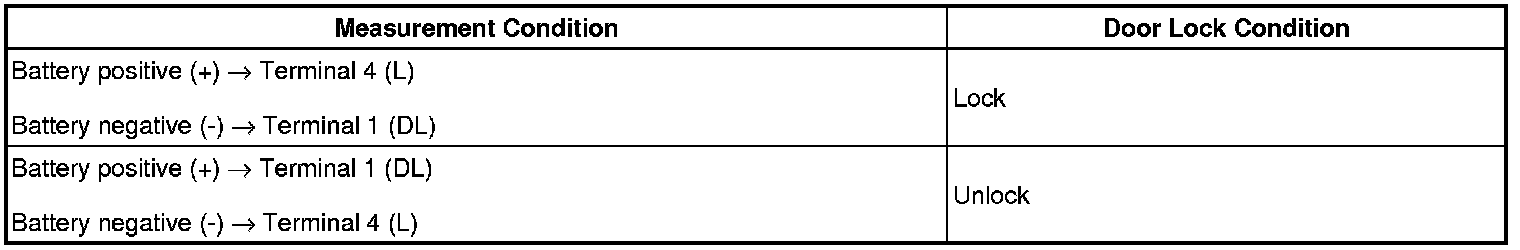

(1) Apply battery voltage and check the operation of the door lock motor.





OK:






If the result is not as specified, replace the rear door lock assembly LH.
(b) Check the operation of the unlock detection switch.

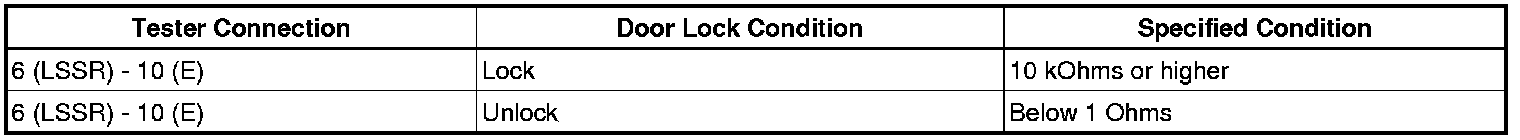

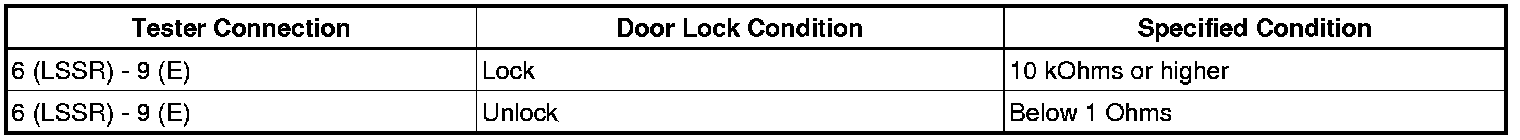

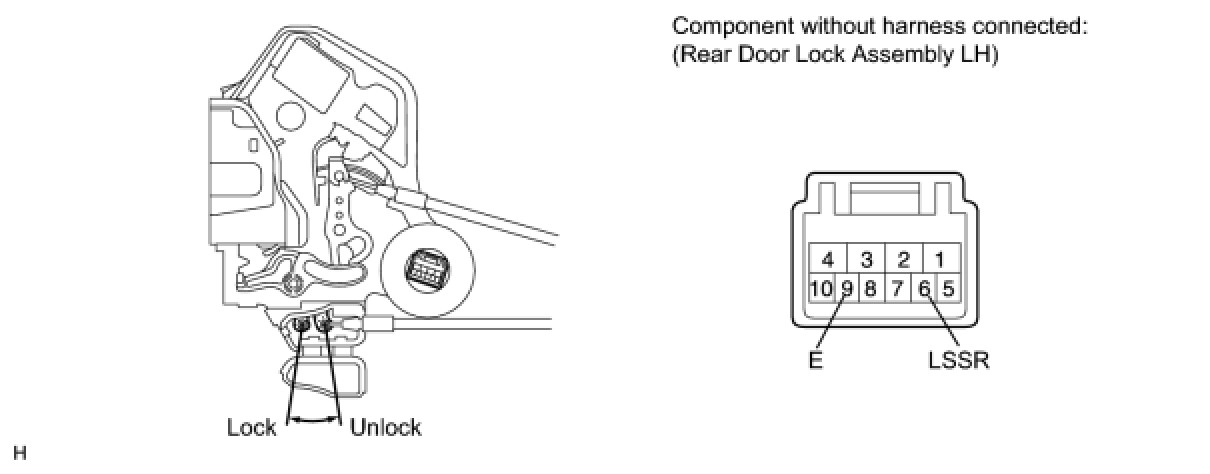

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:






If the result is not as specified, replace the rear door lock assembly LH.
2. INSPECT REAR DOOR LOCK ASSEMBLY RH
(a) Check the operation of the door lock motor.

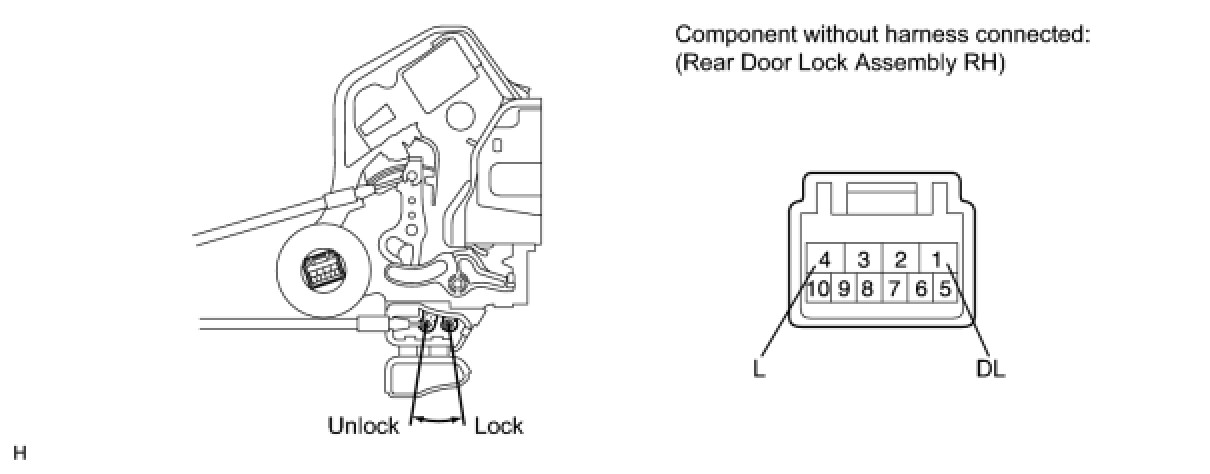

(1) Apply battery voltage and check the operation of the door lock motor.





OK:






If the result is not as specified, replace the rear door lock assembly RH.
(b) Check the operation of the unlock detection switch.

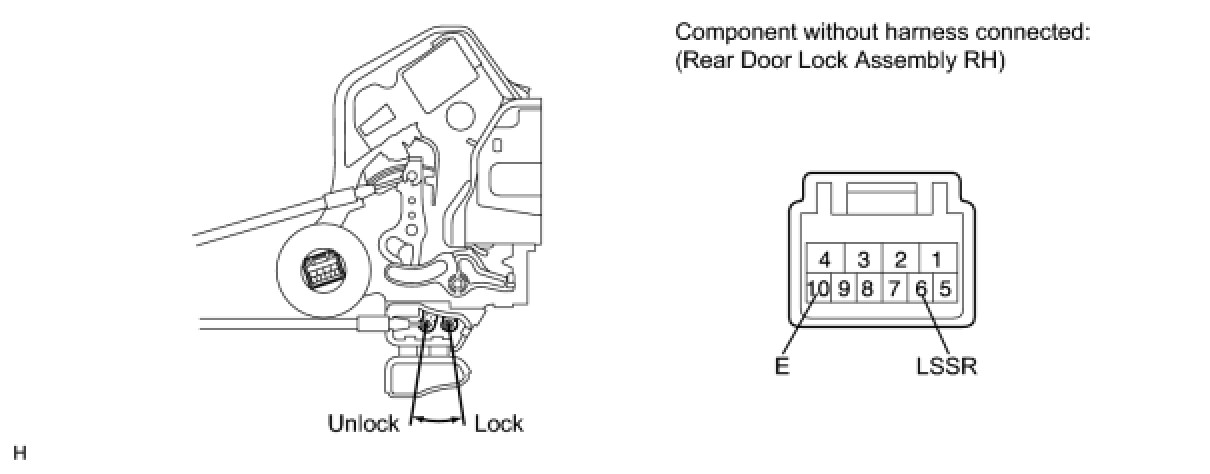

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:






If the result is not as specified, replace the rear door lock assembly RH.
