Removal

DOOR LOCK: LUGGAGE COMPARTMENT DOOR LOCK: REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

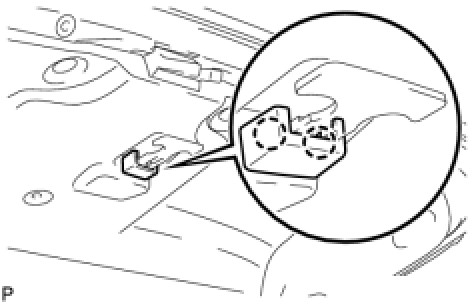

2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE





(a) Disengage the 2 claws and remove the luggage lock control cable plate.

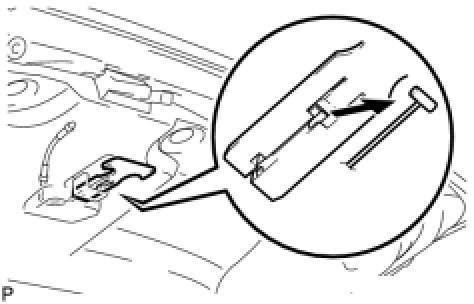

3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE





(a) Disconnect the luggage compartment door lock control cable and remove the luggage compartment door inside handle.
4. REMOVE LUGGAGE COMPARTMENT DOOR COVER
5. REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT
6. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY Disassembly
7. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
(a) Disconnect the connector.





(b) Disengage the clamp.
(c) Remove the 2 bolts and luggage compartment door lock assembly.
