THEFT DETERRENT / KEYLESS ENTRY: ELECTRICAL KEY OSCILLATOR (for Rear Floor): REMOVAL

REMOVAL

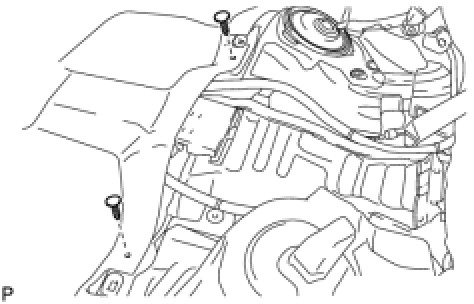

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

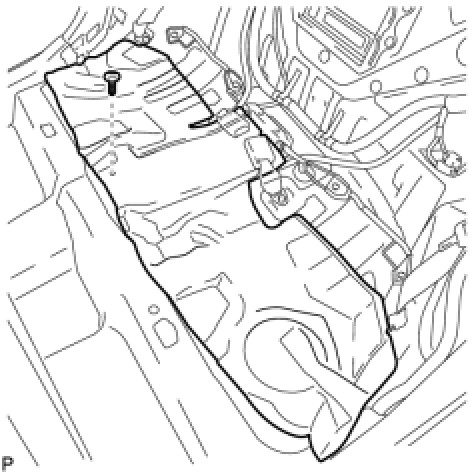

2. REMOVE NO. 3 ROOM PARTITION PAD





(a) Remove the clip and the No. 3 room partition pad.

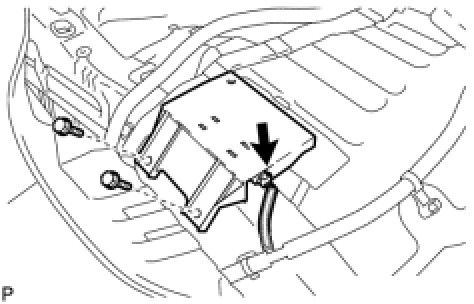

3. REMOVE ELECTRICAL KEY OSCILLATOR





(a) Remove the 2 clips.





(b) Disconnect the connector.
(c) Remove the 2 bolts and the electrical key oscillator.
