INTERIOR PANELS / TRIM: FRONT FLOOR FOOTREST: INSTALLATION

INSTALLATION

1. INSTALL FRONT FLOOR FOOTREST

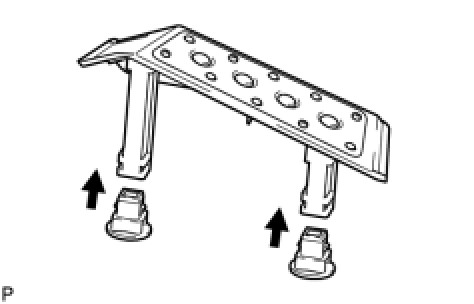

(a) Install the 2 clips on the front floor footrest.

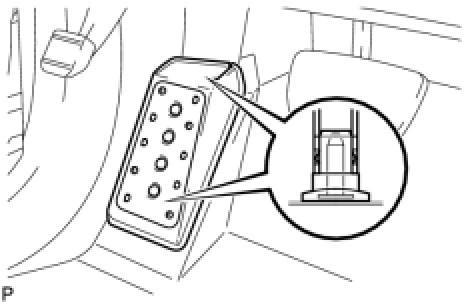

(b) Install the front floor footrest onto the 2 studs that protrude from the vehicle floor.
2. INSTALL FRONT DOOR OPENING TRIM COVER Installation
3. INSTALL FRONT DOOR SCUFF PLATE Installation
