Personal Light

LIGHTING (INT): PERSONAL LIGHT: INSPECTION

INSPECTION

1. INSPECT MAP LIGHT ASSEMBLY (PERSONAL LIGHT)

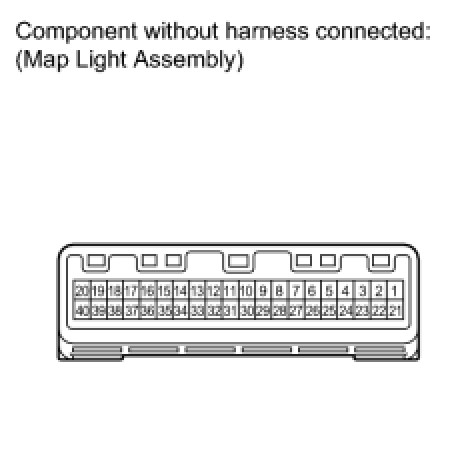

(a) Connect a positive (+) lead from the battery to terminal 1 and a negative (-) lead to terminal 18.

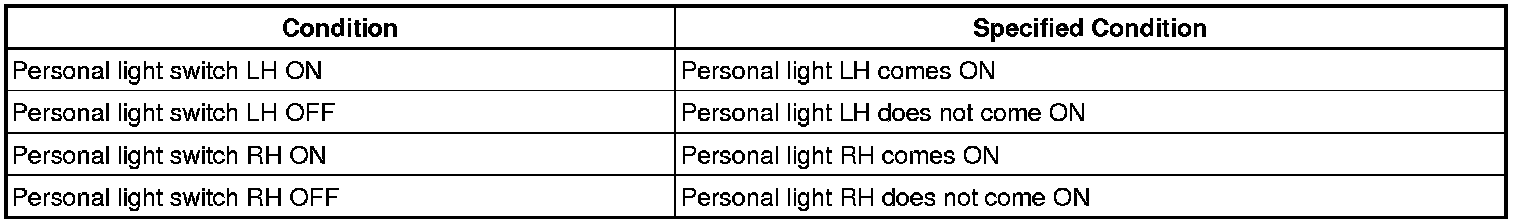

(b) Check that the personal light comes on as shown in the table below.
OK:





If the result is not as specified, replace the bulb or map light assembly.
