Console Box Light

LIGHTING (INT): CONSOLE BOX LIGHT: INSPECTION

INSPECTION

1. INSPECT CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

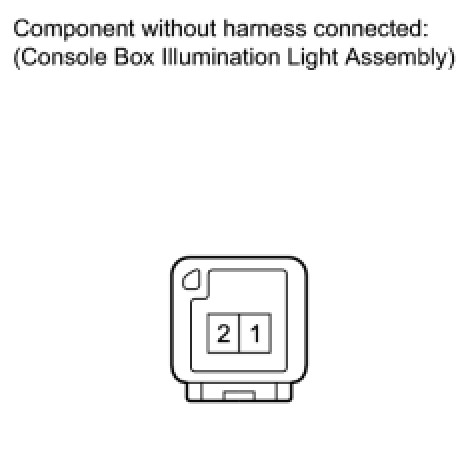

(a) Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead to terminal 1.
(b) Check that the console box illumination light comes on.
OK:
Comes on
If the result is not as specified, replace the console box illumination light assembly.
