Installation

LIGHTING (INT): PERSONAL LIGHT: INSTALLATION

INSTALLATION

1. INSTALL MAP LIGHT BULB

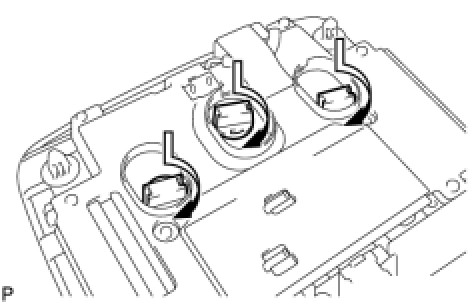

(a) Install the 3 map light bulbs to the map light sockets.





(b) Turn the 3 map light bulbs and 3 map light sockets in the direction indicated by the arrows in the illustration and install them as a unit.

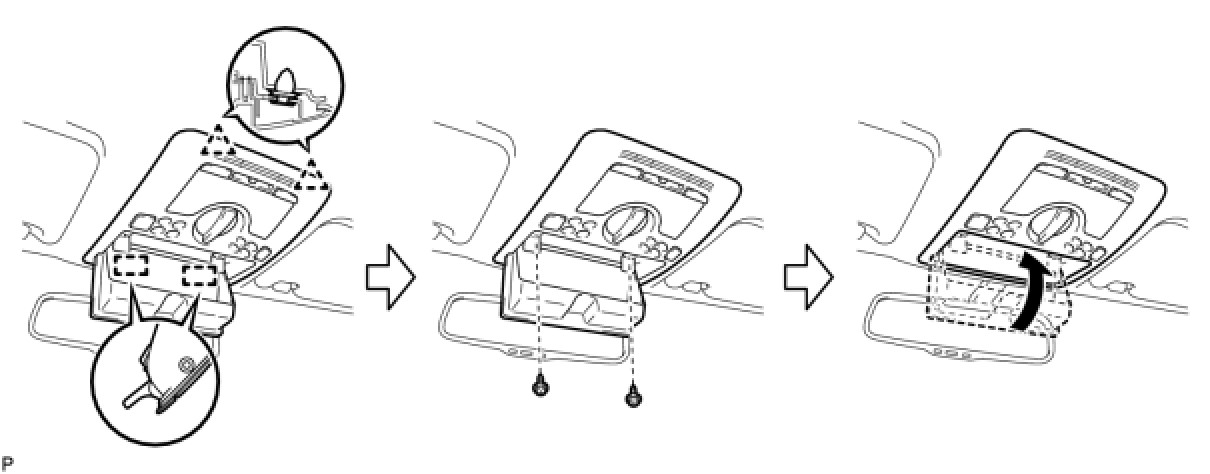

2. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)
(a) Connect the connector.
(b) Engage the 2 guides.





(c) Engage the 2 clips and install the map light assembly.
(d) Install the 2 screws.
(e) Close the cover.

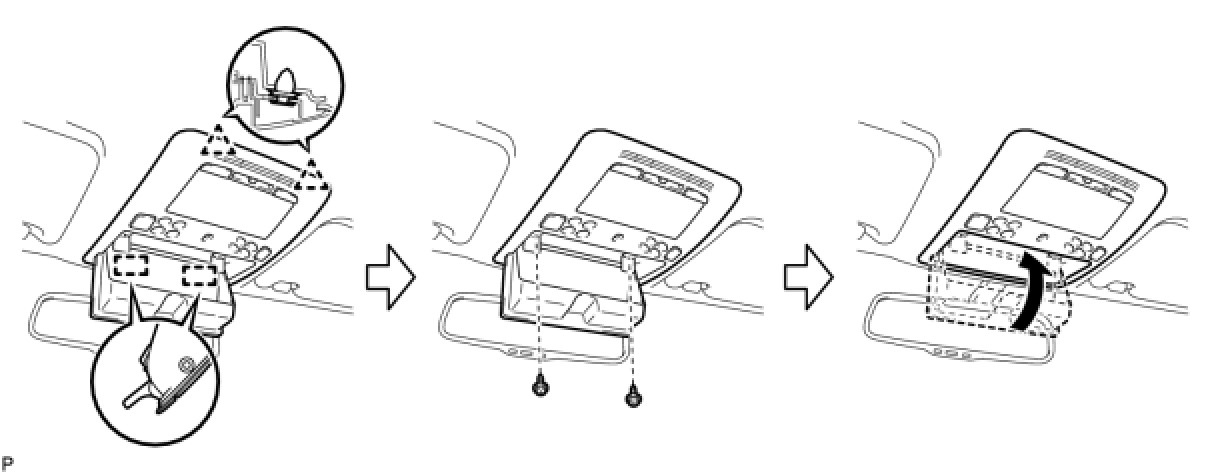

3. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)
(a) Connect the connector.
(b) Engage the 2 guides.





(c) Engage the 2 clips and install the map light assembly.
(d) Install the 2 screws.
(e) Close the cover.
