Trunk / Liftgate: Description and Operation

DOOR / HATCH: LUGGAGE COMPARTMENT DOOR OPENER SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. LUGGAGE COMPARTMENT DOOR OPENER SYSTEM DESCRIPTION
(a) The luggage compartment door opener is an electric type.
(b) The main body ECU RH (cowl side junction block RH) activates the luggage compartment door lock motor when the ON signal from the luggage compartment door opener inner switch is received.

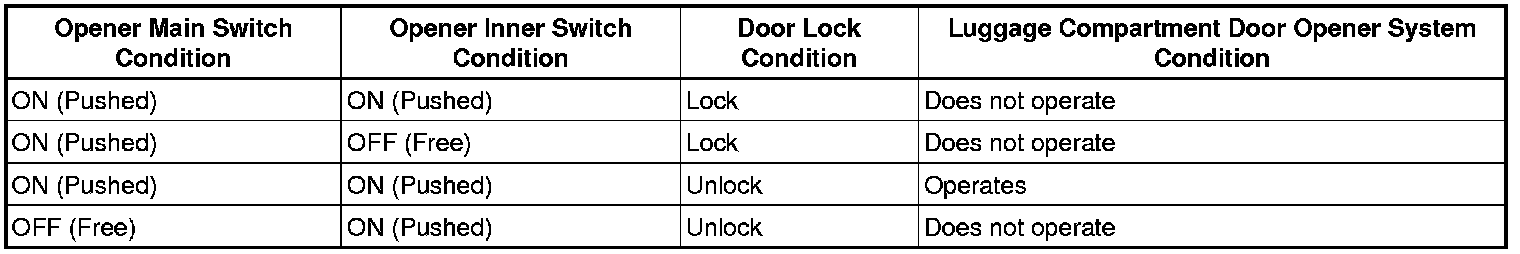

(c) The luggage compartment door opener main switch operates:

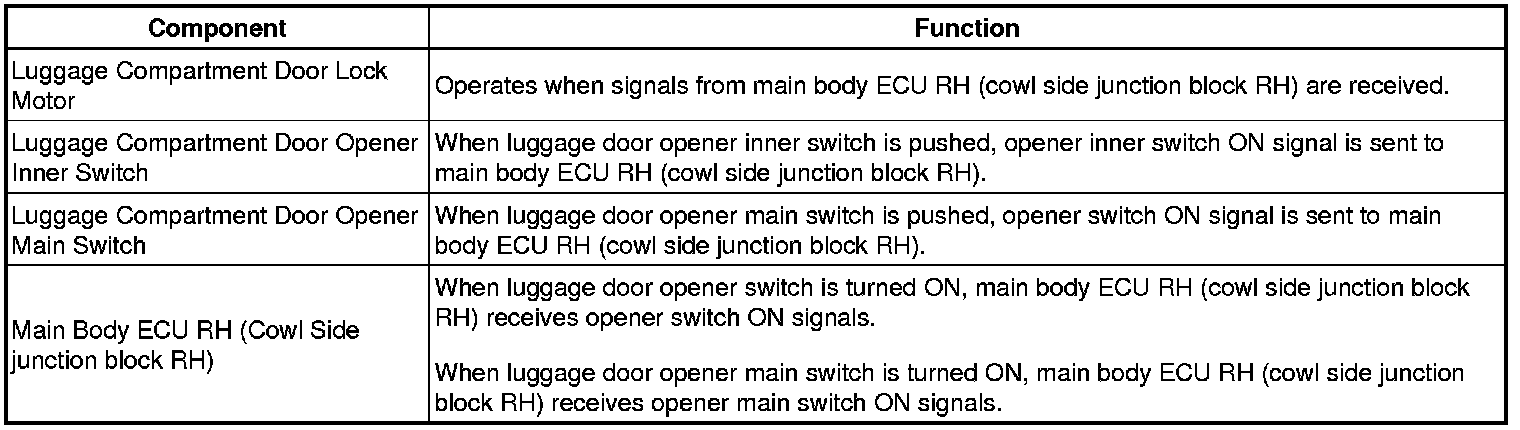

2. FUNCTION OF MAIN COMPONENTS
