Hood: Testing and Inspection








DOOR / HATCH: HOOD: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT HOOD SUB-ASSEMBLY

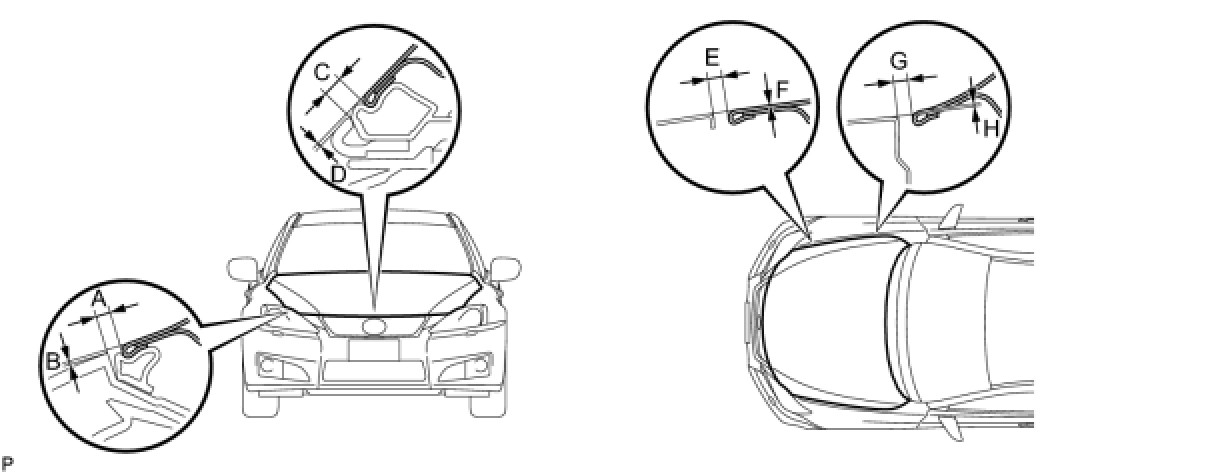

(a) Check that the clearance measurements of areas A to H are within each standard range.

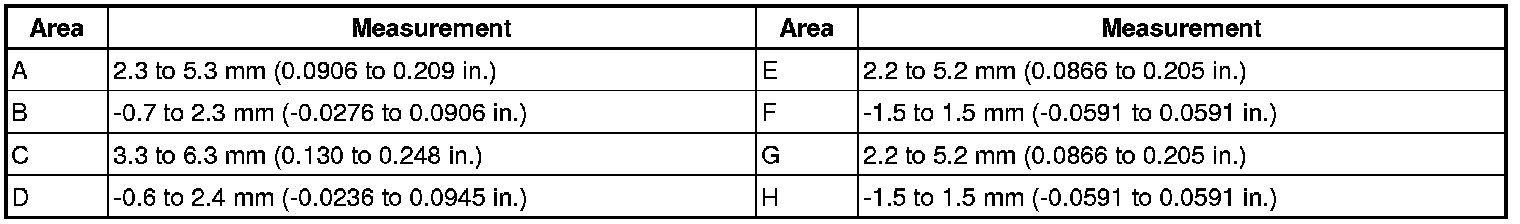

Standard Clearance:
