Rear Door: Testing and Inspection

DOOR / HATCH: REAR DOOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT REAR DOOR PANEL SUB-ASSEMBLY

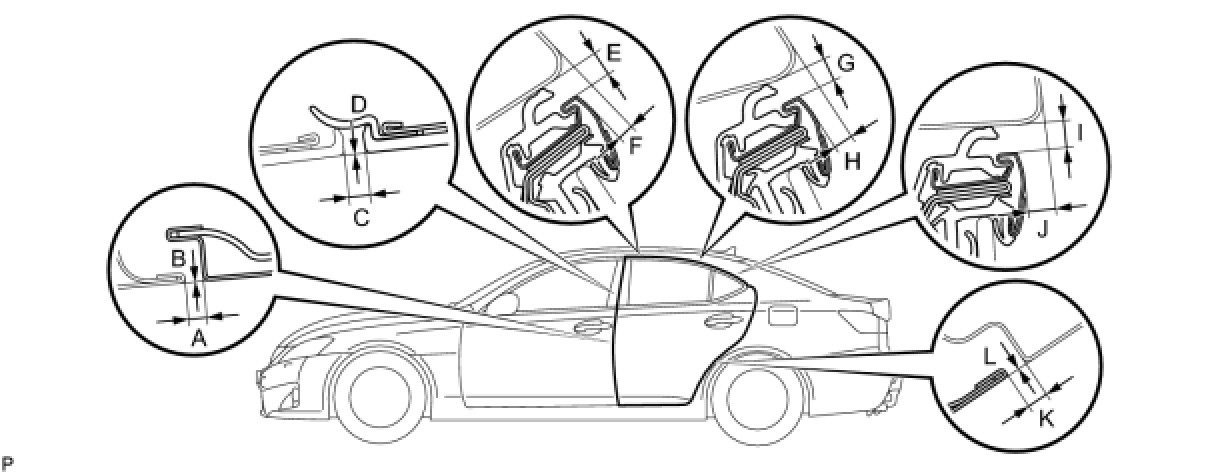

(a) Check that the clearance measurements of areas A to L are within each standard range.

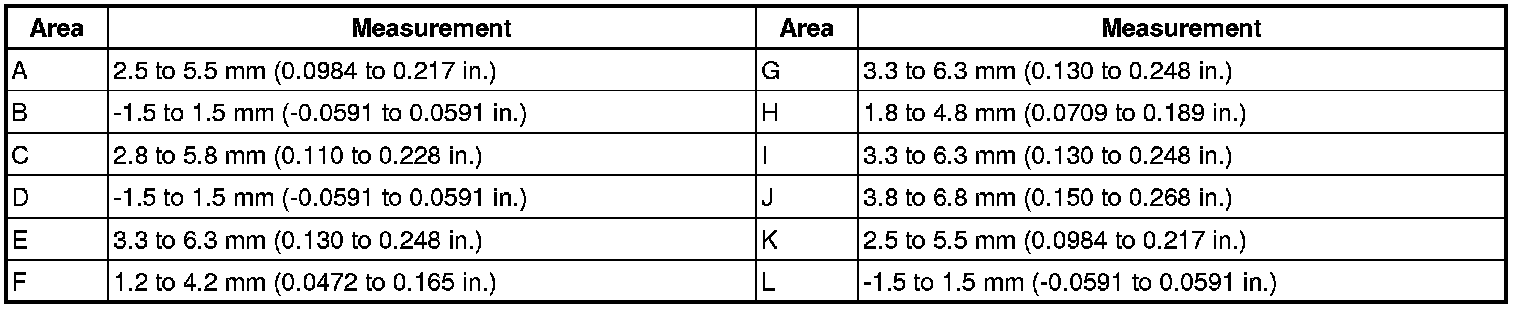

Standard Clearance:
