Front Door: Testing and Inspection

DOOR / HATCH: FRONT DOOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY

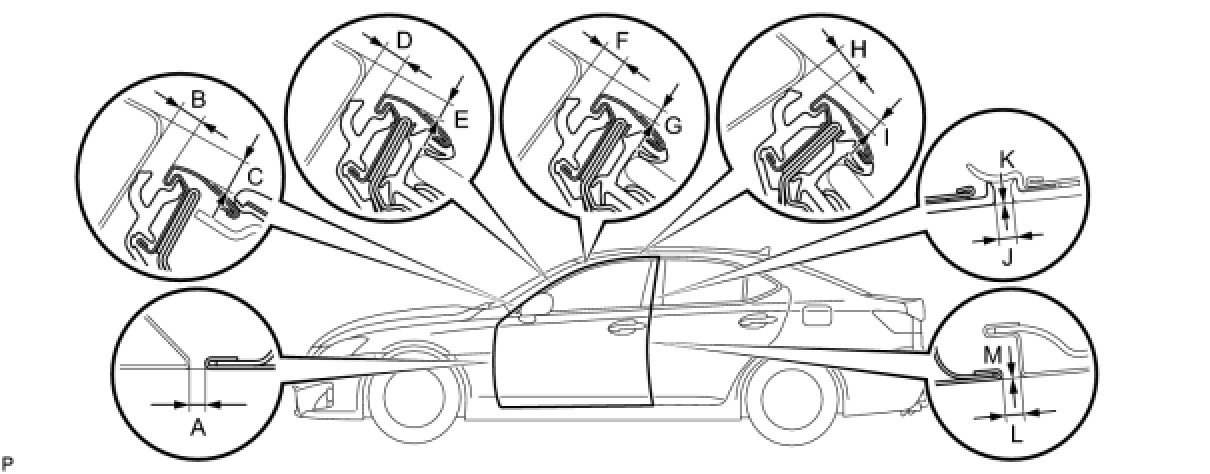

(a) Check that the clearance measurements of areas A to M are within each standard range.

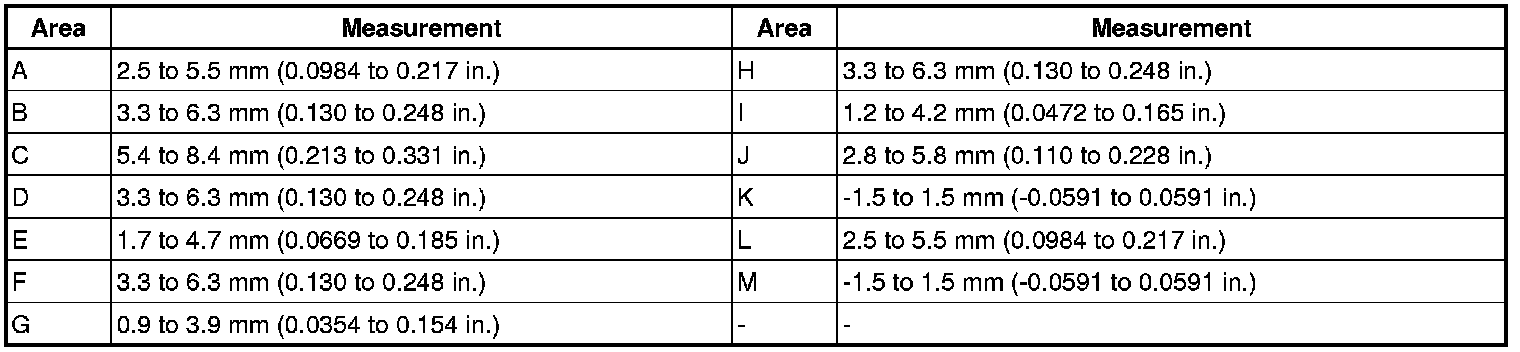

Standard Clearance:
