Rust Resistant Body

Rust-Resistant Body

1. General

Rust-resistance performance is enhanced by extensive use of anti-corrosion sheet steel, as well as by an anti-corrosion treatment, which includes the application of anti-rust wax, sealer and anti-chipping paint to easily corroded parts such as the doors and rocker panels.

2. Anti-corrosion Sheet Steel

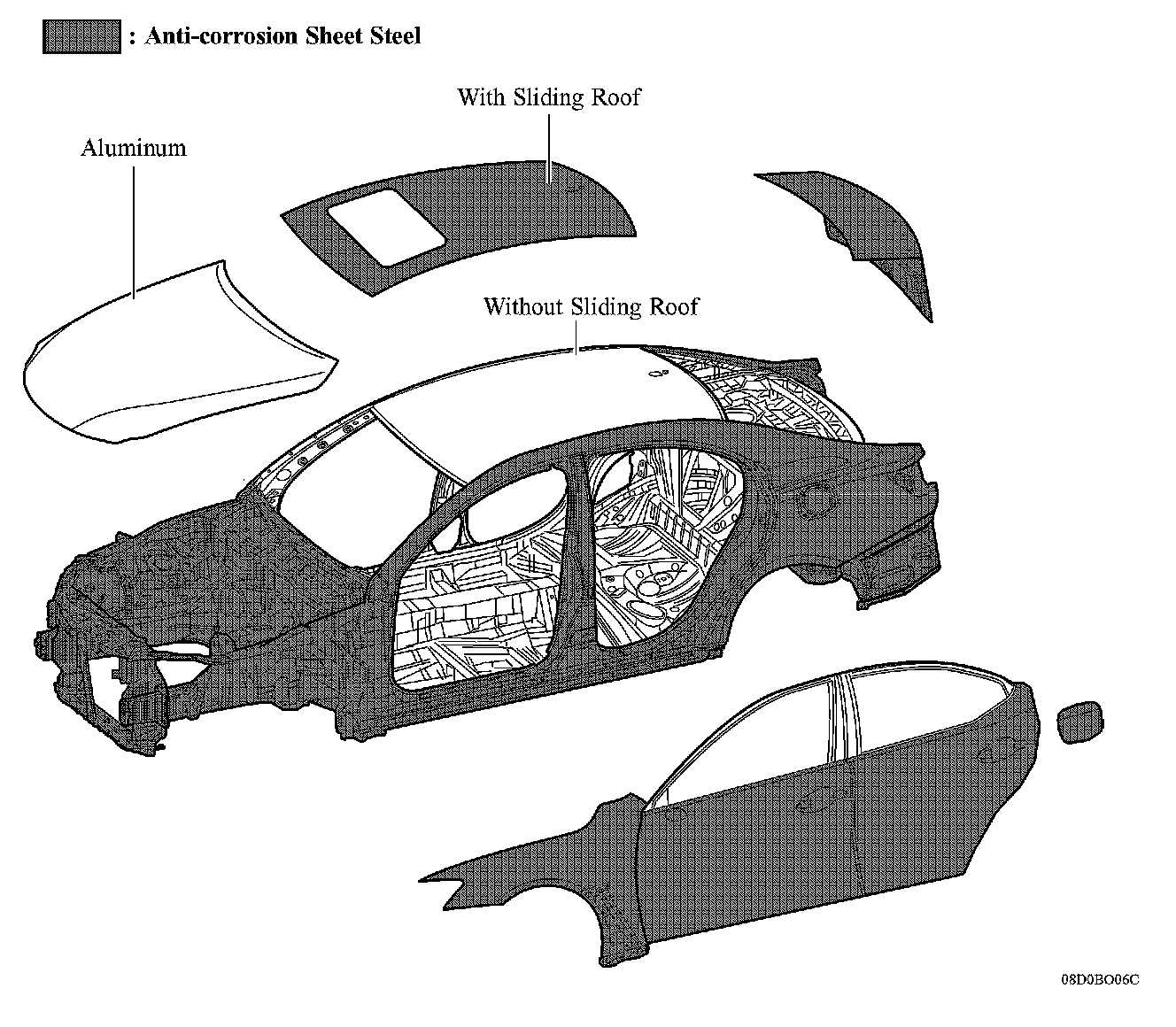

Anti-corrosion sheet steel is used as shown in the following illustration.

3. Anti-chipping Application

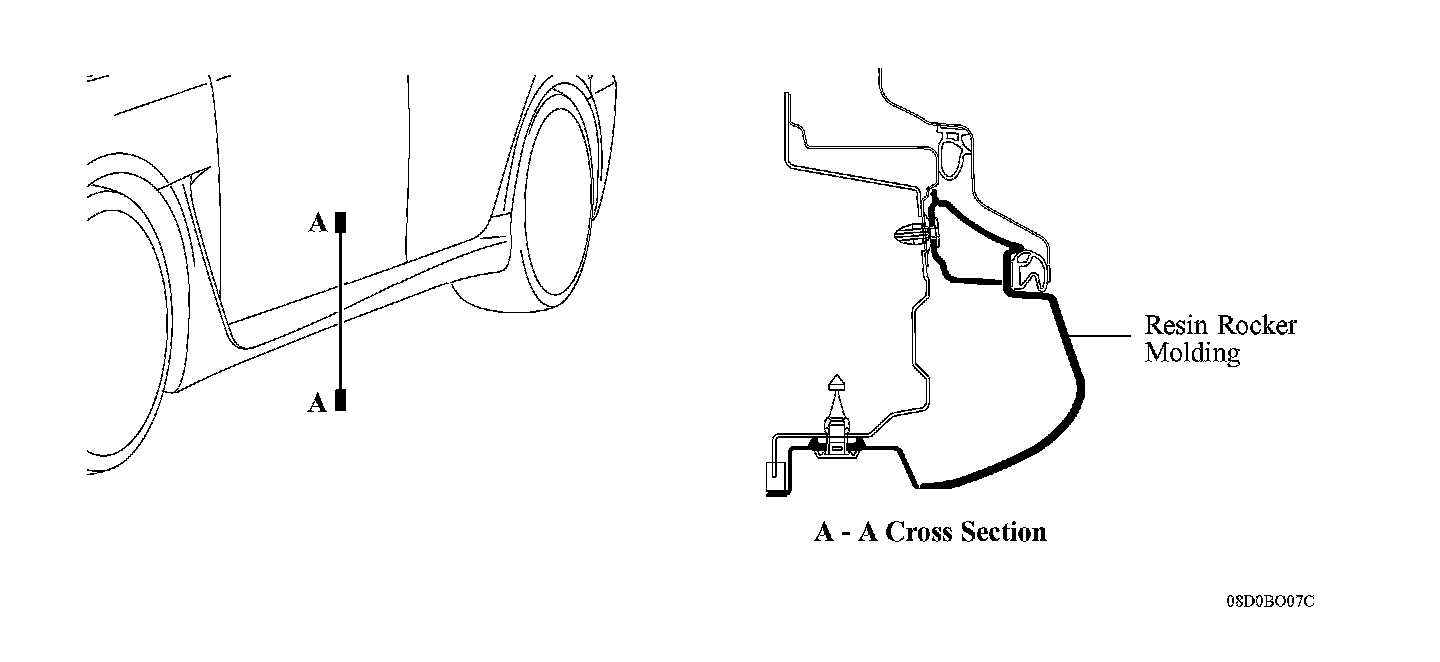

A resin rocker molding is adopted to ensure that the lower side panel is durable and chip resistant.
