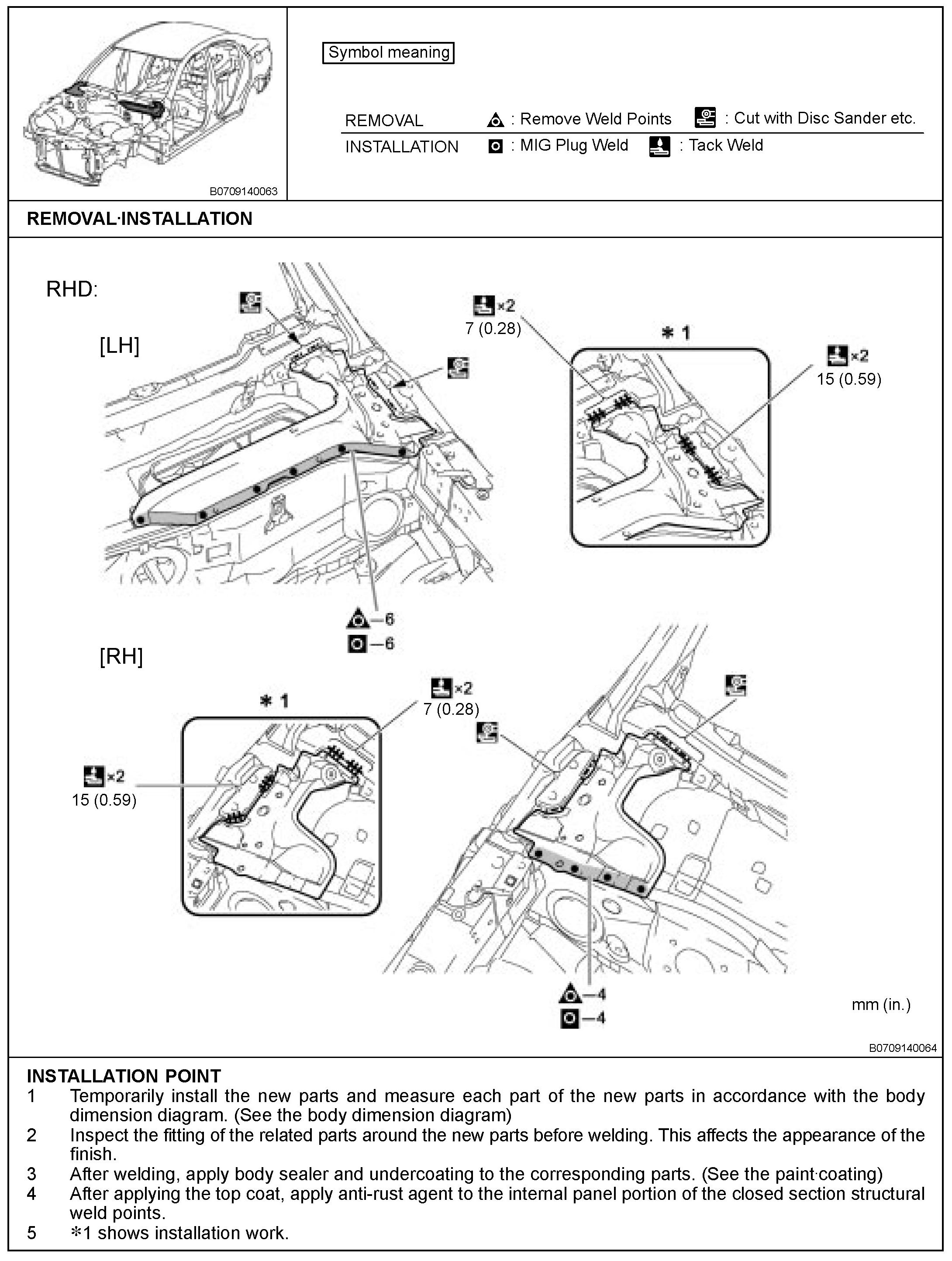

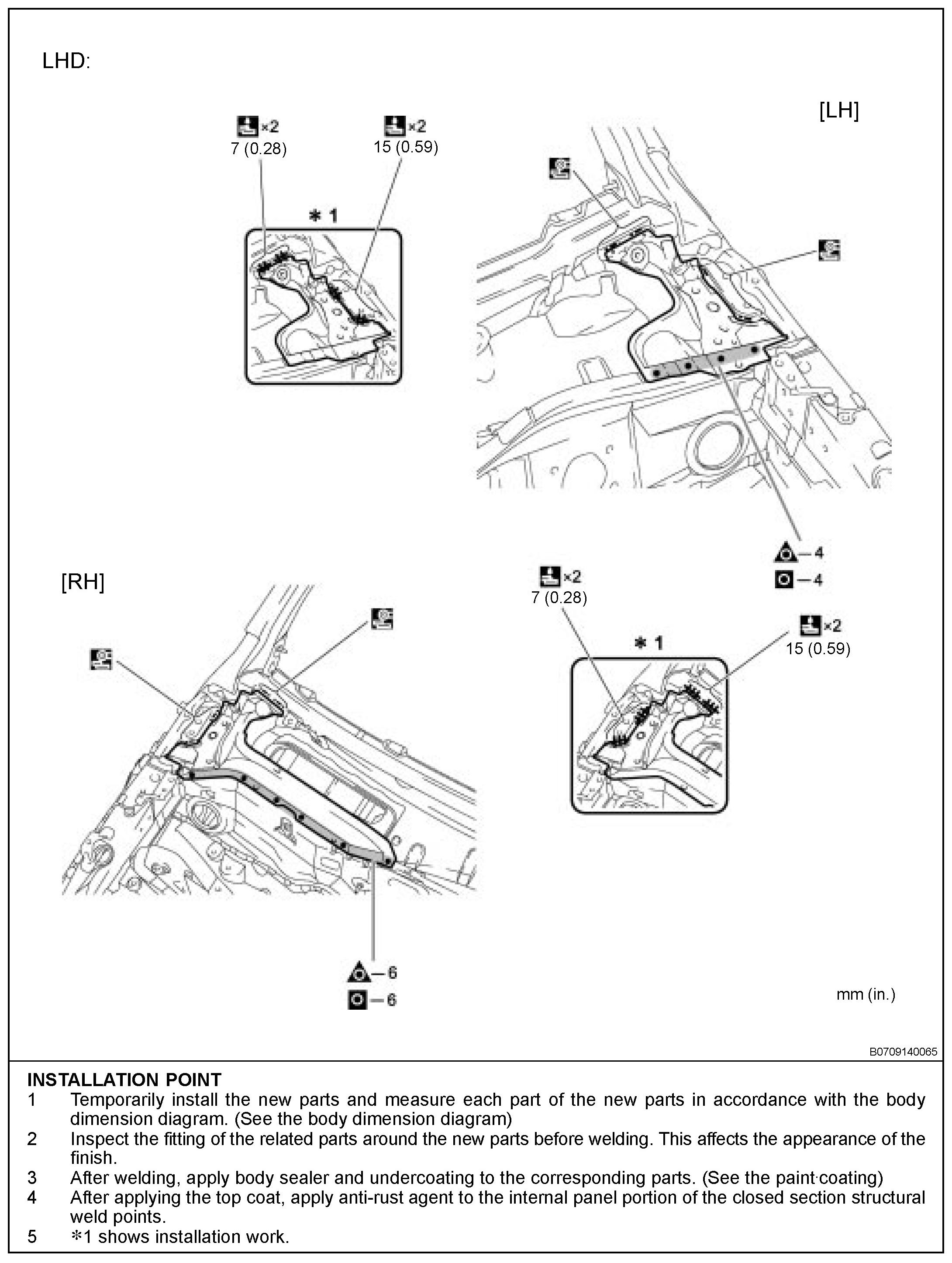

Cowl Top to Apron Brace (Assy)
Cowl Top to Apron Brace (Assy)

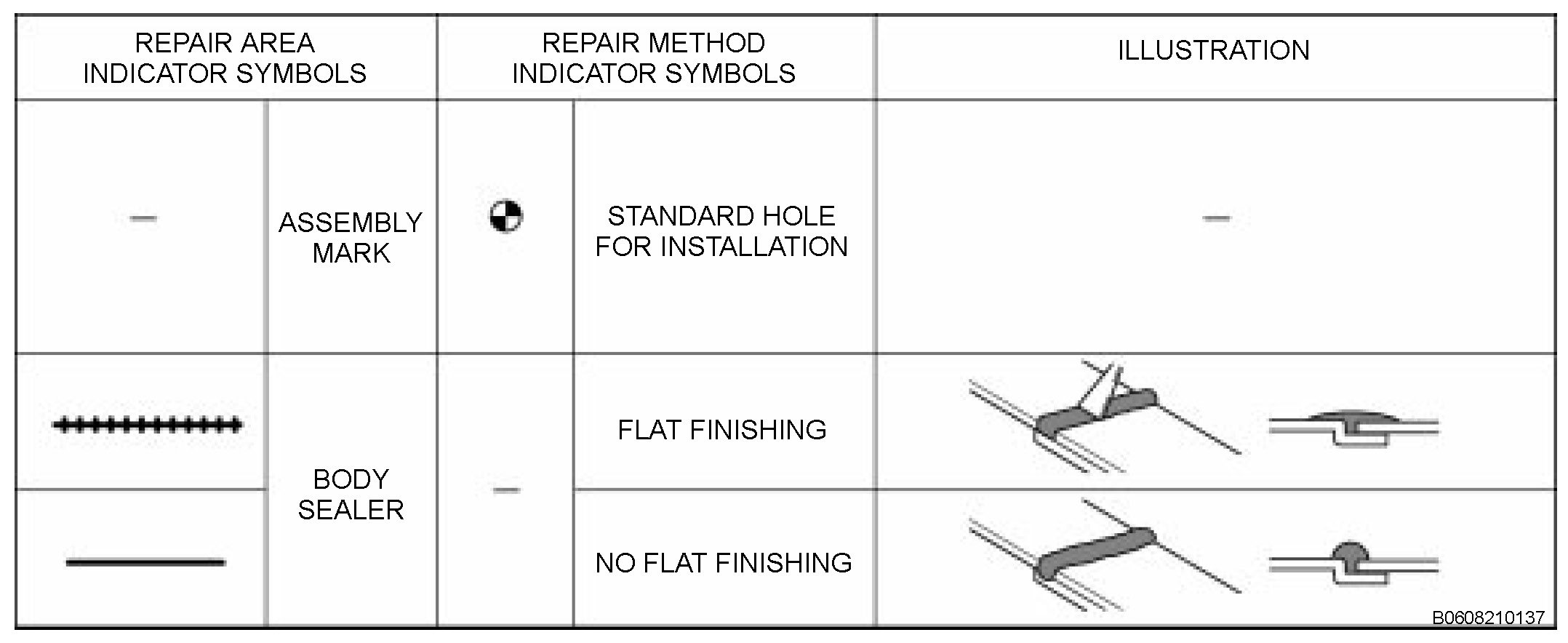

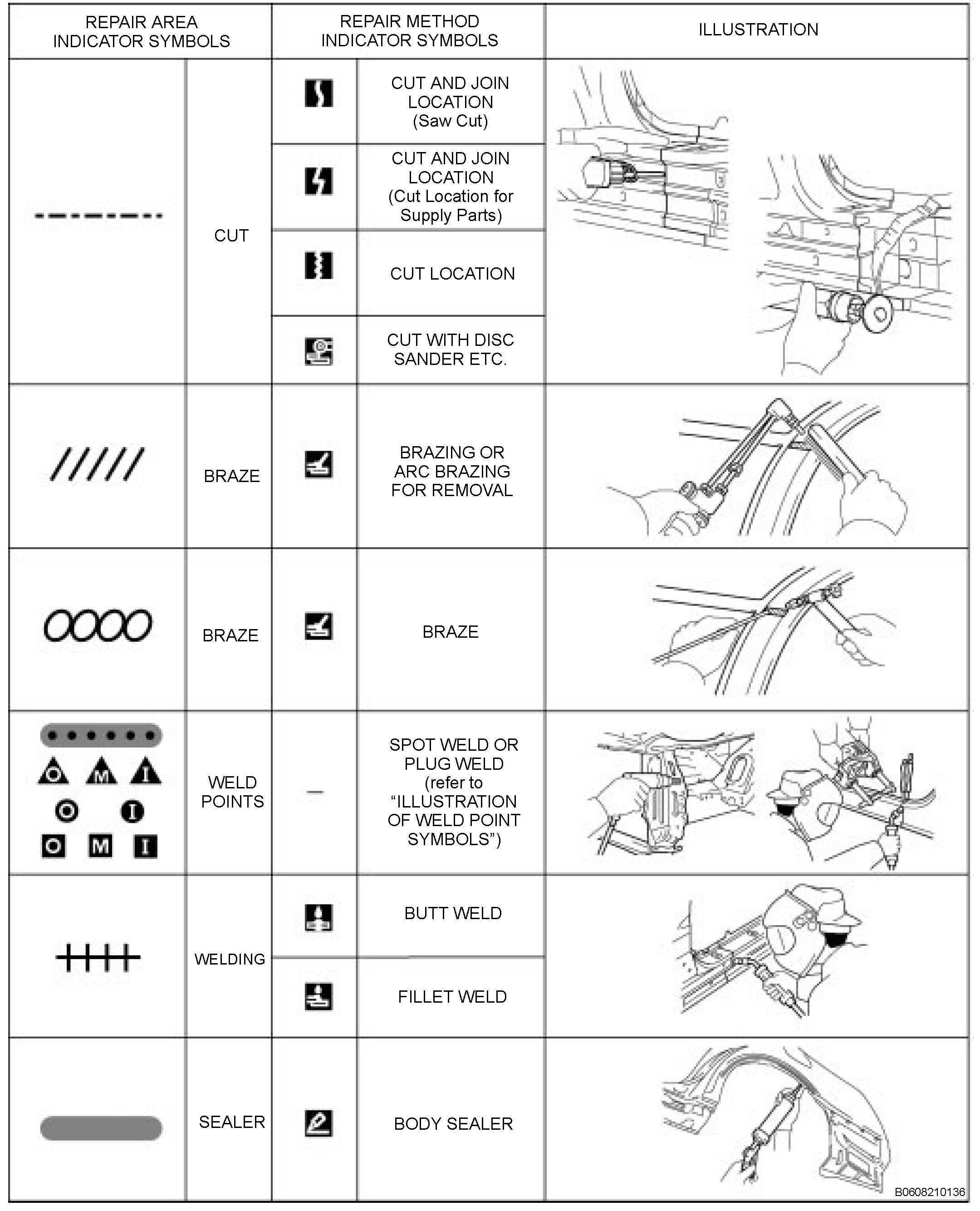

Indicator Symbols:
Indicator Symbols:

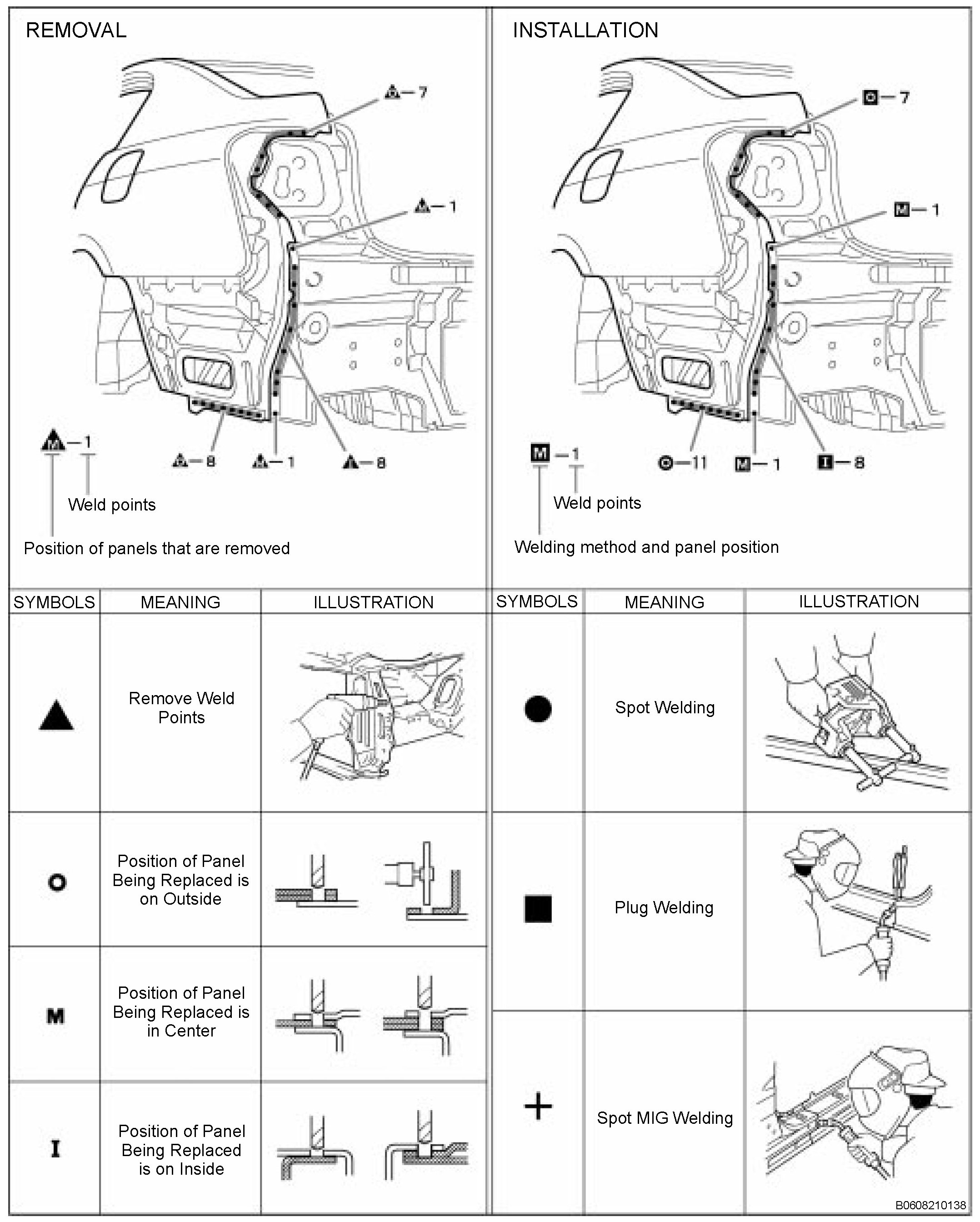

Illustration Of Weld Point Symbols:
