CD Sound Skips

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: CD Sound Skips

CD Sound Skips

INSPECTION PROCEDURE

PROCEDURE

1. CHECK CD




(a) Check the CD.
OK:
The CD is clean.

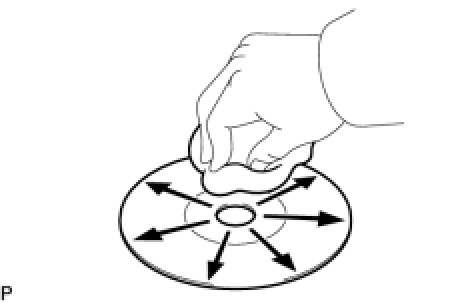

HINT: If dirt is on the CD surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.
NOTE:
Do not use a conventional record cleaner or antistatic preservative.

NG -- CLEAN CD
OK -- Continue to next step.

2. CHECK CD




(a) Check that the CD is not deformed or cracked.
OK:
No deformation or cracks on the CD.
NG -- CHANGE DISC
OK -- Continue to next step.

3. CHECK OPERATION USING ANOTHER CD
(a) Check using another CD.
(1) Check if the problem recurs using another CD.
OK:
The problem does not occur.
NG -- CHECK RADIO RECEIVER
OK -- END
4. CHECK RADIO RECEIVER
(a) Check the radio receiver installation condition.
(1) Check that the radio receiver is properly installed.
OK:
Radio receiver is properly installed.
NG -- REINSTALL RADIO RECEIVER PROPERLY
OK -- REPLACE RADIO RECEIVER
