Rear Package Tray Speaker

AUDIO / VIDEO: REAR PACKAGE TRAY SPEAKER: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT STEREO COMPONENT SPEAKER
HINT: Remove interior parts so that the stereo component speaker can be seen.

(a) Check the speaker installation.
OK:
The speaker is securely installed.
If the result is not as specified, reinstall the stereo component speaker.
(b) Visually check the speaker.
OK:
The cone paper of the speaker is not torn.
If the result is not as specified, replace the stereo component speaker.





(c) Speaker resistance check

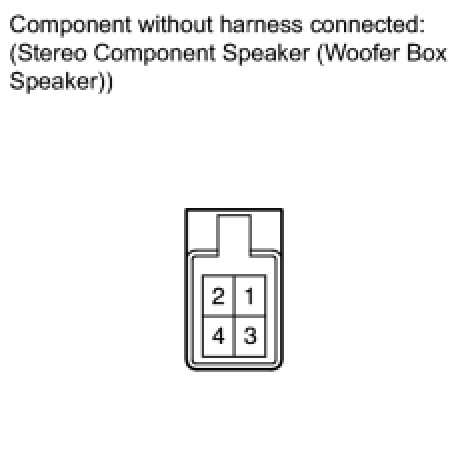

(1) Disconnect the stereo component speaker connector.
(2) Measure the resistance according to the value(s) in the table below.
NOTE:
The speaker should not be removed for checking.

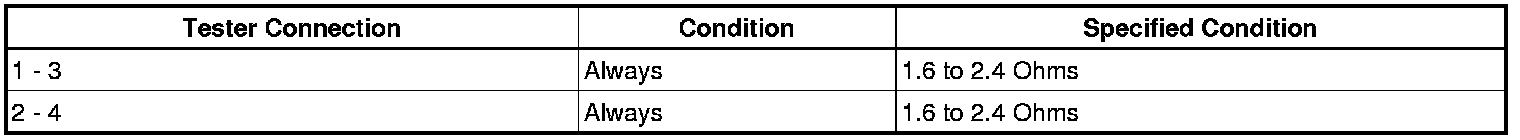

Standard Resistance:
w/ Front Center Speaker





w/o Front Center Speaker





If the result is not as specified, replace the stereo component speaker.
2. INSPECT REAR STEREO COMPONENT SPEAKER (w/ Front Center Speaker)
HINT: Remove interior parts so that the rear stereo component speaker can be seen.

(a) Check the speaker installation.
OK:
The speaker is securely installed.
If the result is not as specified, reinstall the rear stereo component speaker.
(b) Visually check the speaker.
OK:
The cone paper of the speaker is not torn.
If the result is not as specified, replace the rear stereo component speaker.
