Instrument Panel Speaker

AUDIO / VIDEO: INSTRUMENT PANEL SPEAKER: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT STEREO COMPONENT SPEAKER (w/ Front Center Speaker)
HINT: Remove interior parts so that the front stereo component speaker can be seen.

(a) Check the speaker installation.
OK:
The speaker is securely installed.
If the result is not as specified, reinstall the front stereo component speaker.
(b) Visually check the speaker.
OK:
The cone paper of the speaker is not torn.
If the result is not as specified, replace the front stereo component speaker.





(c) Speaker resistance check

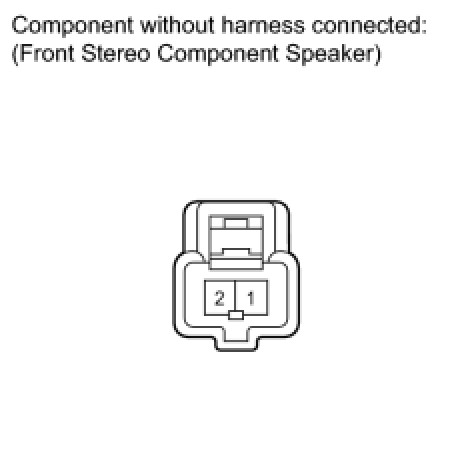

(1) Disconnect the front stereo component speaker connector.
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






If the result is not as specified, replace the front stereo component speaker.
