Front Door Speaker

AUDIO / VIDEO: FRONT DOOR SPEAKER: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT NO. 1 SPEAKER
HINT: Remove interior parts so that the front No. 1 speaker can be seen.

(a) Check the speaker installation.
OK:
The speaker is securely installed.
If the result is not as specified, reinstall the front No. 1 speaker.
(b) Visually check the speaker.
OK:
The cone paper of the speaker is not torn.
If the result is not as specified, replace the front No. 1 speaker.





(c) Speaker resistance check
(1) Disconnect the front No. 1 speaker connector.

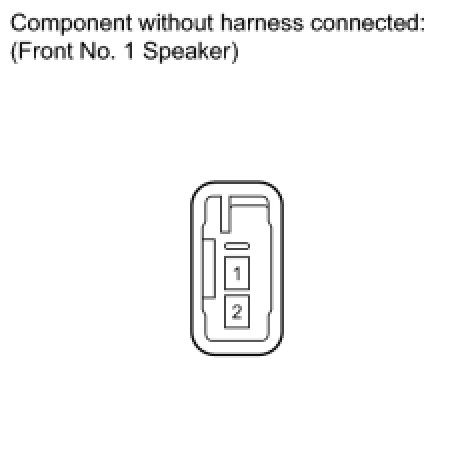

(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
w/o Front Center Speaker





w/ Front Center Speaker





If the result is not as specified, replace the front No. 1 speaker.
2. INSPECT FRONT NO. 2 SPEAKER
HINT: Remove interior parts so that the front No. 2 speaker can be seen.

(a) Check the speaker installation.
OK:
The speaker is securely installed.
If the result is not as specified, reinstall the front No. 2 speaker.
(b) Visually check the speaker.
OK:
The cone paper of the speaker is not torn.
If the result is not as specified, replace the front No. 2 speaker.
3. INSPECT FRONT NO. 3 SPEAKER
HINT: Remove interior parts so that the front No. 3 speaker can be seen.

(a) Check the speaker installation.
OK:
The speaker is securely installed.
If the result is not as specified, reinstall the front No. 3 speaker.
(b) Visually check the speaker.
OK:
The cone paper of the speaker is not torn.
If the result is not as specified, replace the front No. 3 speaker.
