Removal








AUDIO / VIDEO: REAR PACKAGE TRAY SPEAKER: REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR SEATBACK ASSEMBLY Removal
4. REMOVE REAR DOOR SCUFF PLATE LH Removal
5. REMOVE REAR DOOR SCUFF PLATE RH
HINT: Use the same procedure for the RH side and the LH side.

6. REMOVE REAR SIDE SEAT GARNISH LH Removal
7. REMOVE REAR SIDE SEAT GARNISH RH
HINT: Use the same procedure for the RH side and the LH side.

8. REMOVE ROOF SIDE INNER GARNISH LH Removal
9. REMOVE ROOF SIDE INNER GARNISH RH
HINT: Use the same procedure for the RH side and the LH side.

10. REMOVE CENTER STOP LIGHT SET Removal
11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal

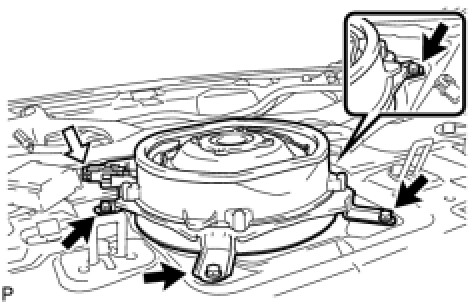

12. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 4 bolts and stereo component speaker assembly.
NOTE:
Do not touch the cone part of the speaker.

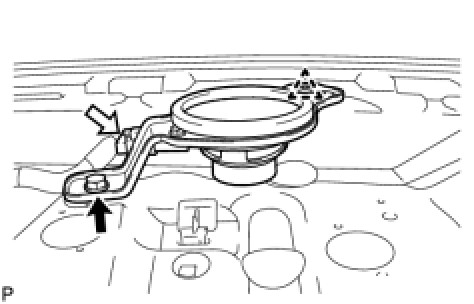

13. REMOVE REAR STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)





(a) Disconnect the connector.
(b) Remove the bolt.
(c) Disengage the clip and remove the rear stereo component speaker assembly.
NOTE:
Do not touch the cone part of the speaker.
